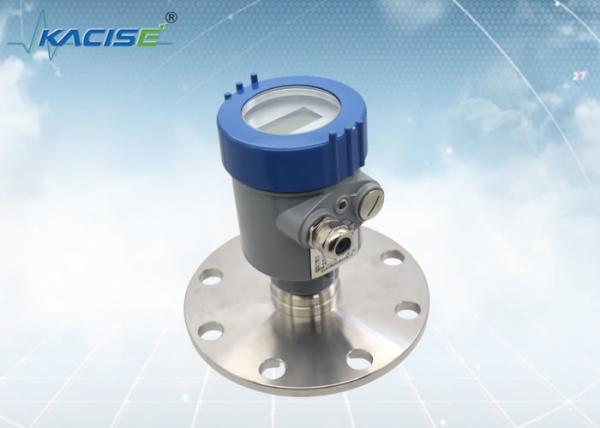

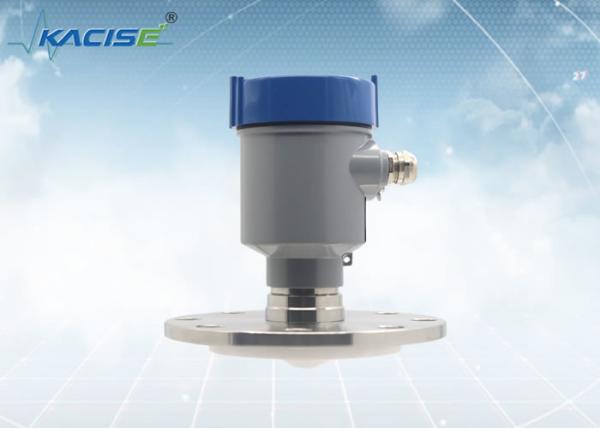

Anti Corrosion KLD803 Radar Level Sensor Liquid Stainless Steel Radar Level Transmitter
Anti Corrosion KLD803 Radar Level Sensor Liquid Stainless Steel Radar Level Transmitter
Anti Corrosion KLD803 Radar Level Sensor Liquid Stainless Steel Radar Level Transmitter
Anti Corrosion KLD803 Radar Level Sensor Liquid Stainless Steel Radar Level Transmitter
Anti Corrosion KLD803 Radar Level Sensor Liquid Stainless Steel Radar Level Transmitter
Anti Corrosion KLD803 Radar Level Sensor Liquid Stainless Steel Radar Level Transmitter
Specifications
Brand Name :
KACISE
Model Number :
KLD803
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Medium :
strong corrosive liquid, steam, foam
Measuring range :
0.1m～10/20/30/60/100m
Process connection :
flange ≥ DN50
Process temperature :
-40～130℃
Process pressure :
-0.1～2.5MPa
Antenna size :
34mm lens antenna (according to flange size)
Antenna material :
PTFE
Accuracy :
±1mm/±5mm
Protection class :
IP67
Center frequency :
80GHz
Launch angle :
3°
Power supply :
DC24V/DC12~24V /AC220V
Casing :
aluminum/plastic/stainless steel
Signal output :
4...20mA/HART protocol/RS485 Modbus
Description

KLD803 80G FM Radar Level Sensor

Introduction

80GHz high frequency radar level meter has the advantages of small antenna size, narrow beam, large signal bandwidth and high range resolution. PTFE sensor for liquid, especially corrosive liquid.

Feature

  • Cast aluminum shell: safe, durable (not easy to oxidize and rust), light weight, strong plasticity (strong ductility)
  • Stainless steel shell: 304 (high temperature resistance, high toughness), 316L (corrosion resistance)
  • False wave learning function

KLD803

Anti Corrosion KLD803 Radar Level Sensor Liquid Stainless Steel Radar Level Transmitter

Medium: strong corrosive liquid, steam, foam

Measuring range: 0.1m～10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40～130℃

Process pressure: -0.1～2.5MPa

Antenna size: 34mm lens antenna (according to flange size)

Antenna material: PTFE

Accuracy: ±1mm (range below 35m)

±5mm (range between 35m and 100m)

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

Product Dimension

Unit in mm:

Anti Corrosion KLD803 Radar Level Sensor Liquid Stainless Steel Radar Level Transmitter

Installation Method

Flange Installation

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

  • datum plane
  • vessel center or axis of symmetry

Anti Corrosion KLD803 Radar Level Sensor Liquid Stainless Steel Radar Level Transmitter Anti Corrosion KLD803 Radar Level Sensor Liquid Stainless Steel Radar Level Transmitter

Hoisting Installation

Anti Corrosion KLD803 Radar Level Sensor Liquid Stainless Steel Radar Level Transmitter

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.

What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
