This series of sensor is measuring level measuring instrument, has the very high resolution and accuracy of measurement. It without human intervention, automatic calibration, does not exist temperature drift, and could not be affected by changes in the media. That is with a sensor, no matter be measured medium is water or gasoline or diesel, no matter how the temperature changes, it can correct output level highly accurate signal. Thoroughly solved the ethanol and gasoline, methanol fuel, and other media difficult the problem of measurement, and it solves the different areas for oil different and temperature of the label huge differences of the measurement error problem. At present the technology in China is unique, in international leading level.

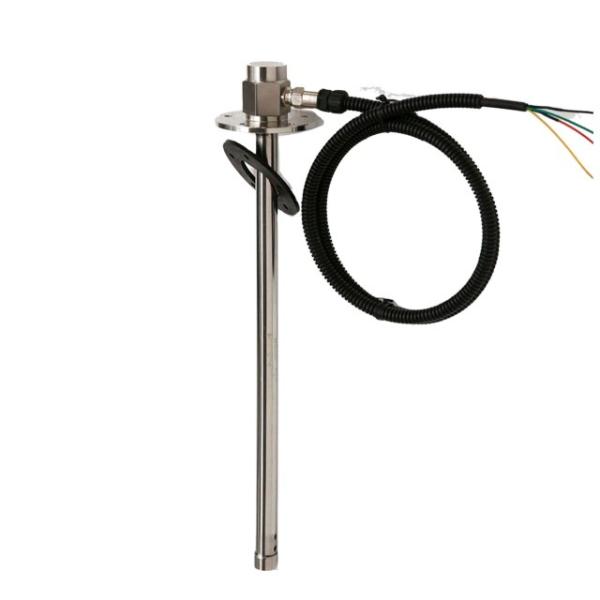

GXCF406 series level sensor is according to the principle of capacitance, using rf capacitor jump to change measuring technology to realize the measurement of height of liquid. Output signal with high level change and continuous change, no steps, high accuracy, high reliability. The elastic components, is no moving parts, impact resistance, easy installation, can be installed on all occasions for gasoline, diesel oil, oil level of the hydraulic oil and other various liquid for accurate measurement and control.

1), Connection as follows:
RS232: the way the sensor output has 4 line
Black 24 V-(RS232 ground)
Blue RS232 (TXD) The computer the sending end
Yellow RS232 (RXD) The computer the sending end
RS485: the way the sensor output has 4 line
Red 24 V +
Black 24 V-(RS232 ground)
Blue RS485 A
Yellow RS485 B
4 ~ 20 mA: the way the sensor output with 2 lines
Red 24 V +
Black 24 V-
0 ~ 5 V: the way the sensor output has 3 line
Red 24 V +
Black 24 V-
Blue 0 ~ 5 V voltage output

Packing Details : Standard Export Packing
Delivery Details : 3-15 days after payment
