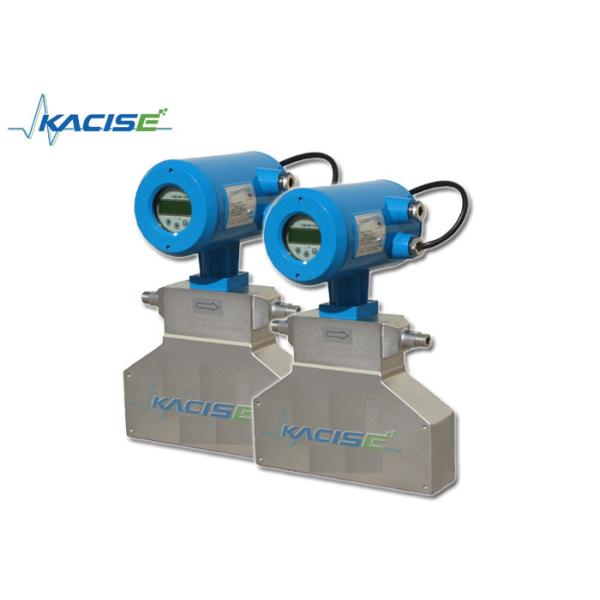

Explosion Proof Coriolis Density Meter with LCD Display and 0.10~0.20% Accuracy for Liquid Density Measurement
Explosion Proof Coriolis Density Meter with LCD Display and 0.10~0.20% Accuracy for Liquid Density Measurement
Explosion Proof Coriolis Density Meter with LCD Display and 0.10~0.20% Accuracy for Liquid Density Measurement
Explosion Proof Coriolis Density Meter with LCD Display and 0.10~0.20% Accuracy for Liquid Density Measurement
Explosion Proof Coriolis Density Meter with LCD Display and 0.10~0.20% Accuracy for Liquid Density Measurement
Explosion Proof Coriolis Density Meter with LCD Display and 0.10~0.20% Accuracy for Liquid Density Measurement
Specifications
Brand Name :
KACISE
Model Number :
KMF-Series
Place of Origin :
Shaanxi, China (Mainland)
MOQ :
1 Piece/Pieces
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
3000 Piece/Pieces per Month
Delivery Time :
Shipped in 7 days after payment
Packaging Details :
carton or customers requests available
Measuring rang :
0~1000t/h
Display :
LCD display
Temperature rating :
-50~350℃
Pressure rating :
0~4.0MPa
Accuracy class :
0.10~0.20%
Diameter :
3~250mm
Description
LCD Display CE Approved DN150mm Coriolis Density Meters For Liquid Density Mass Flow Meter

Explosion Proof Coriolis Density Meter with LCD Display and 0.10~0.20% Accuracy for Liquid Density Measurement

Product Description

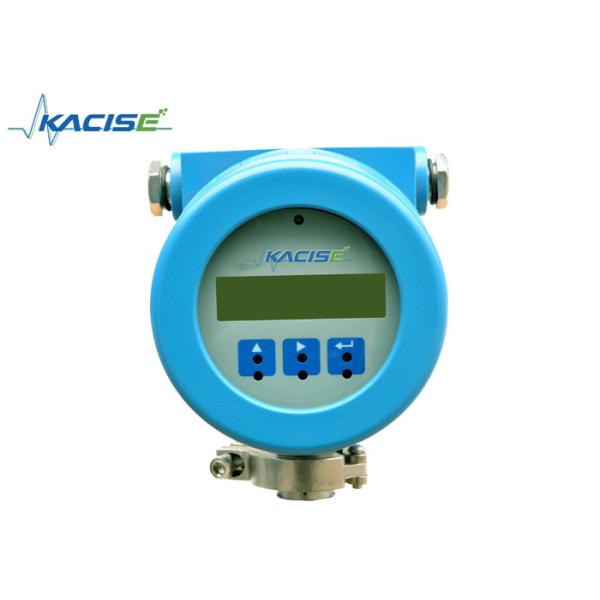

DN150mm Coriolis mass flow meter directly measures the "Mass" of the Medium with high accuracy based on the Coriolis Principle (Coriolis Force). The accuracy would not be affected by any factors like the temperature, pressure, density, viscosity,etc. And the compensation calculation is not required. The Coriolis Mass Flow Meter consists of two parts: the Sensor and the Transmitter. The Corioils Mass Flow Meter is designed and produced based on the national standard of explosion- proof standards.

Principles

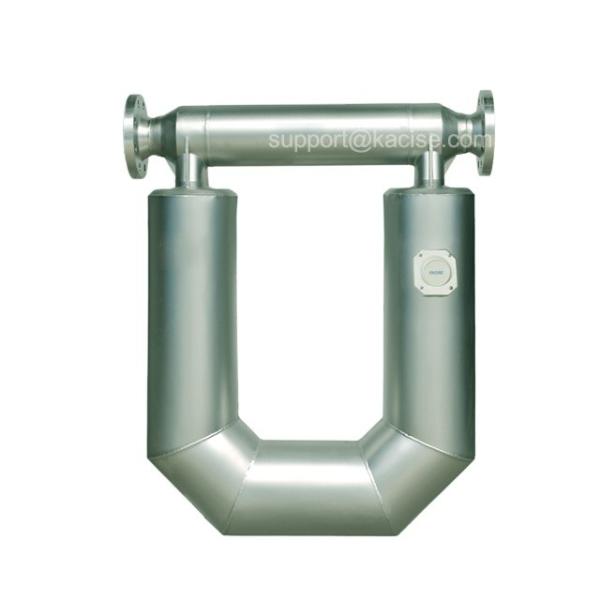

The structure of Coriolis Mass Flow Meters was consisted of a pair of bended tubes. The principle is to detect Coriolis force forced a pair of tubes from inner mass flow by fluid.

A new force—Coriolis force would be appear while two conditions met: (1) vibrating with normal frequency in a pair of bended tubes, (2) fluid flowing in tubes. This force was produced upon synthesis from vibrating force and flowing force by fluid in tubes. And tubes would be wresting symmetric the center line because the force forced. Two displacement sensors on sides of tubes detect the force and output electric signals. The signals regulated, mass flow directly produced.

Parameters
Module DN Measurement Scope Work Pressure (MPa) Connection Type(mm)
KMF-1-1AB 1.5 0～4(kg/h) 0～4 Weld Joints Φ6×1.5
KMF-1-1A 3 0～40(kg/h) 0～4 Weld Joints Φ6×1.5
KMF-1-1B 6 0～100(kg/h) 0～4 Weld Joints Φ10×2
KMF-1-2A 8 0～200(kg/h) 0～4 Weld Joints Φ10×1
KMF-1-3A 10 0～500(kg/h) 0～4 Flange DN10
KMF-1-3B 15 0～1000(kg/h) 0～4 Flange DN15
KMF-1-4 20 0～3000(kg/h) 0～4 Flange DN20
KMF-1-5A 25 0～10(T/h) 0～4 Flange DN25
KMF-1-5B 40 0～20(T/h) 0～4 Flange DN40
KMF-1-6A 50 0～30(T/h) 0～4 Flange DN50
KMF-1-6AB 65 0～50(T/h) 0～4 Flange DN65
KMF-1-6B 80 0～100(T/h) 0～2.5 Flange DN80
KMF-1-6C 100 0～150(T/h) 0～2.5 Flange DN100
KMF-1-6CD 125 0～200(T/h) 0～2.5 Flange DN125
KMF-1-6D 150 0～400(T/h) 0～2.5 Flange DN150
KMF-1-6E 200 0～500(T/h) 0～2.5 Flange DN200
Application
  • Alternative Energy
  • Oil & Gas
  • Chemical
  • Food & Beverage
  • Industrial Energy
  • Life Sciences
  • Marine
  • Metals and Mining
  • Power
  • Pulp & Paper
  • Refining
  • Water & Wastewater
  • Others
Instrument Selection

Explosion Proof Coriolis Density Meter with LCD Display and 0.10~0.20% Accuracy for Liquid Density MeasurementExplosion Proof Coriolis Density Meter with LCD Display and 0.10~0.20% Accuracy for Liquid Density Measurement

Applied Range

Our products are widely used in petroleum, chemical, metallurgy, electricity, food, pharmaceutical, environmental protection and energy fields. More than 30 provinces and cities across the country, and exports in some countries.

Work Shop

Explosion Proof Coriolis Density Meter with LCD Display and 0.10~0.20% Accuracy for Liquid Density Measurement

Our Service

1. Q: May I put my own logo on the product?

A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.

2. Q: How about the quality control?

A: All products will be tested for 3 times before packed.

3. Q: Could you design according to my requirements?

A: Of course, our team will design for you, to make our food grade pipe coriolis mass flow meter work perfectly at your end.

4. Q: May I release trial order, 1 pc for example?

A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.

Delivery details

7 working days quick delivery. / Suggested Express company: DHL.

Explosion Proof Coriolis Density Meter with LCD Display and 0.10~0.20% Accuracy for Liquid Density Measurement
