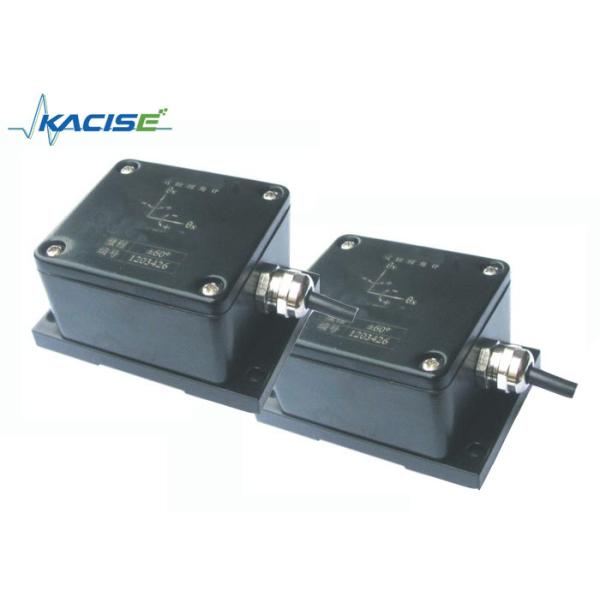

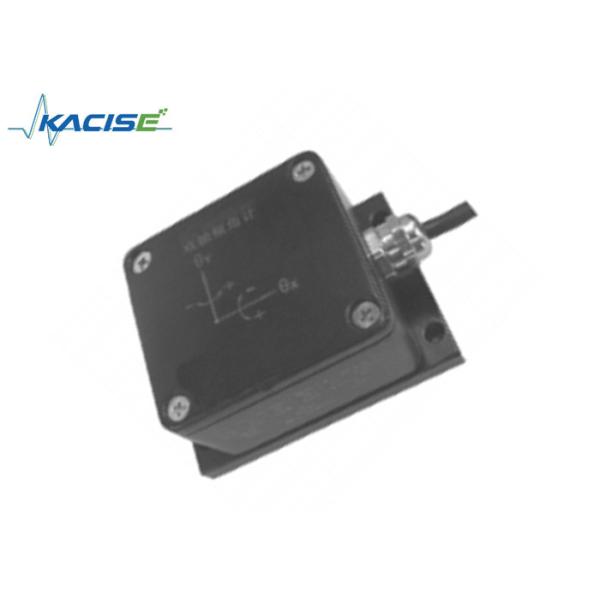

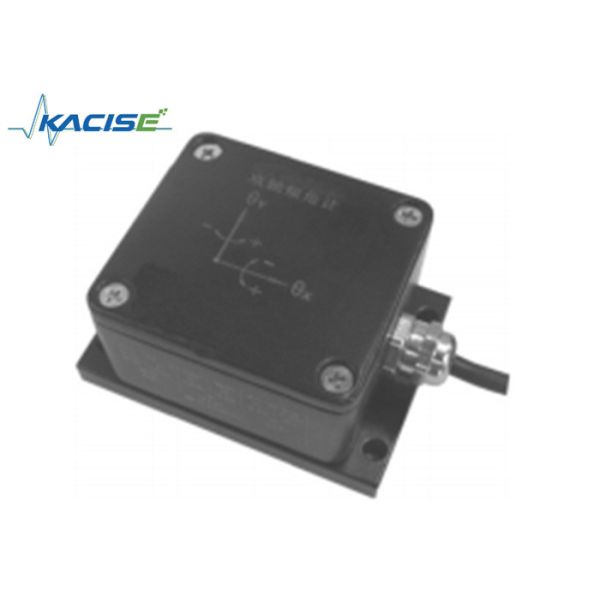

Low Power Consumption Analog Output Tilt Sensor with 5Hz Bandwidth for Construction Machinery
Low Power Consumption Analog Output Tilt Sensor with 5Hz Bandwidth for Construction Machinery
Low Power Consumption Analog Output Tilt Sensor with 5Hz Bandwidth for Construction Machinery
Low Power Consumption Analog Output Tilt Sensor with 5Hz Bandwidth for Construction Machinery
Low Power Consumption Analog Output Tilt Sensor with 5Hz Bandwidth for Construction Machinery
Low Power Consumption Analog Output Tilt Sensor with 5Hz Bandwidth for Construction Machinery
Low Power Consumption Analog Output Tilt Sensor with 5Hz Bandwidth for Construction Machinery
Low Power Consumption Analog Output Tilt Sensor with 5Hz Bandwidth for Construction Machinery
Specifications
Brand Name :
KACISE
Model Number :
K-2QJJ10A/10C/10D
Place of Origin :
Shaanxi, China (Mainland)
MOQ :
1 Piece/Pieces
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5 working days after payment
Packaging Details :
carton or customers requests available
Certification :
CE
Nonlinear :
0.5%F.S.
Resolution (°/s) :
0.05°
Bandwidth :
5Hz
Start-up time (ms) :
＜1s
Temperature (°C) :
-40℃~+70℃
Storage Temperature :
-40℃~+125℃
Description
Low Power Consumption Analog Output Inclinometer Sensor For Engineering Machinery
Features
  • K-2QJJ100C/100D Waterproof shell
  • K-2QJJ100C low power consumption
  • analog output
Specification
Type K-2QJJ100A K-2QJJ100B K-2QJJ100C K-2QJJ100D K-2QJJ100E K-2QJJ100F
Electric character
Input voltage 10~30VDC 3.3VDC 10~30VDC 10~30 VDC
Input current ＜20mA 4mA ＜60mA ＜20mA
Output mode 0.5～4.5V 0.1～2.4V 4～20mA RS485(@9600bps@25Hz) RS232(@9600bps@25Hz) pulse output
Performance index
Range ±10° ±30°
Nonlinear (%F.S.) 0.5%F.S. 0.5%FS
Resolution (°/s) 0.05° 0.05°
Bias 2.5±0.1V 1.25±0.01V 12±0.1mA 0.1°
Bandwidth 5Hz 5Hz
Start-up time (ms) ＜1s ＜1s
Protection grade IP67 IP65 IP67 IP65
Environmental characteristics
Compensated Temperatures N.A. -40℃~40℃ N.A.
Temperature (°C) -40℃~+70℃ -40℃~+70℃
Storage Temperature -40℃~+125℃ -40℃~+125℃
Physical Characteristics
Weight (g) ＜500g ＜50g ＜500g ＜500g
Dimensions 82X58X43mm 38X38X20mm 82X58X43mm 48X38X18mm 82X58X43mm

Note: Range can choose ±20°,±40°,±60°,±75°.

Dimension

Low Power Consumption Analog Output Tilt Sensor with 5Hz Bandwidth for Construction Machinery Low Power Consumption Analog Output Tilt Sensor with 5Hz Bandwidth for Construction Machinery
