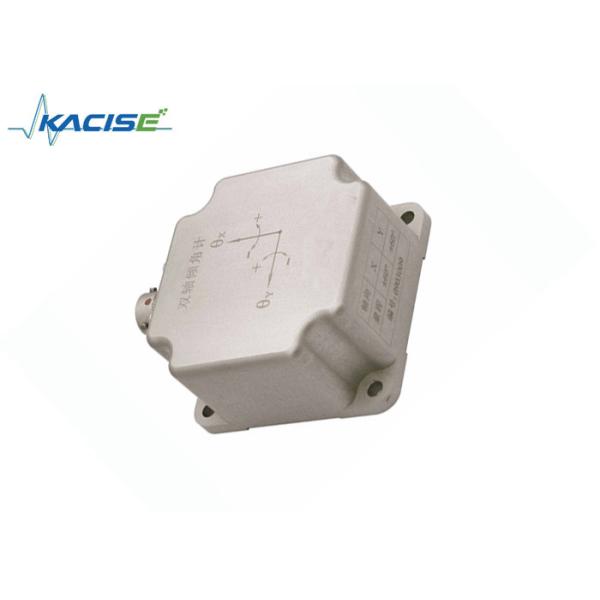

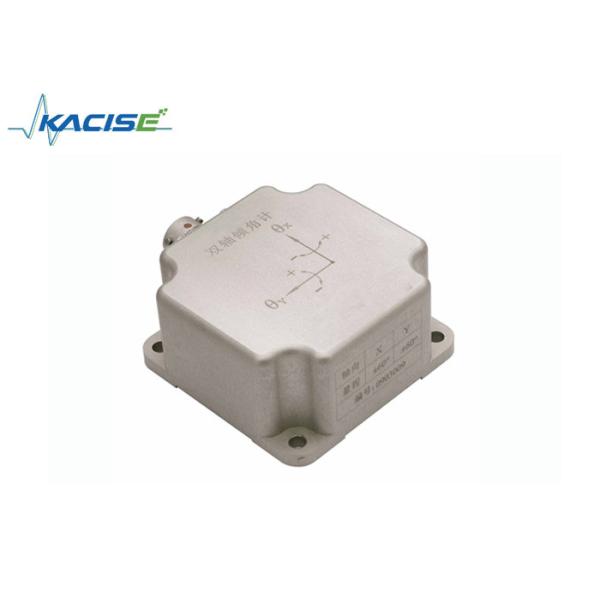

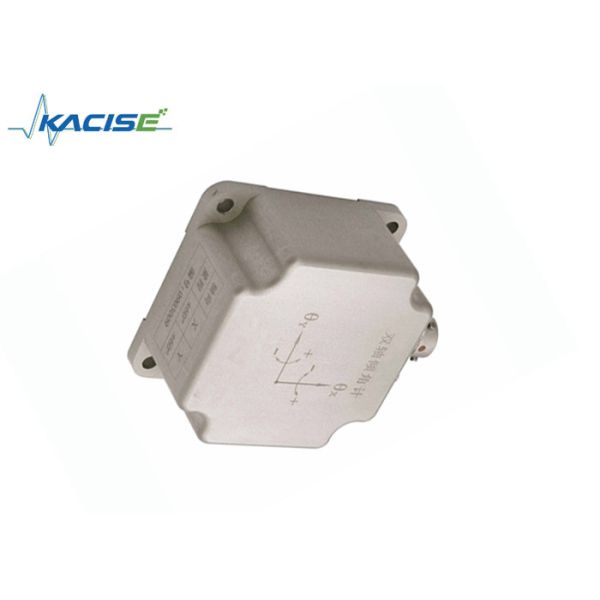

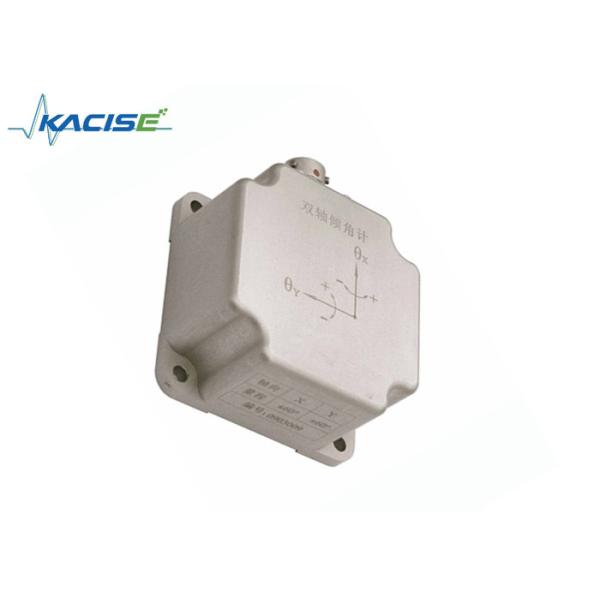

High Accuracy Inclinometer Sensor with Explosion Protection Shell and Temperature Compensation
High Accuracy Inclinometer Sensor with Explosion Protection Shell and Temperature Compensation
High Accuracy Inclinometer Sensor with Explosion Protection Shell and Temperature Compensation
High Accuracy Inclinometer Sensor with Explosion Protection Shell and Temperature Compensation
High Accuracy Inclinometer Sensor with Explosion Protection Shell and Temperature Compensation
High Accuracy Inclinometer Sensor with Explosion Protection Shell and Temperature Compensation
High Accuracy Inclinometer Sensor with Explosion Protection Shell and Temperature Compensation
High Accuracy Inclinometer Sensor with Explosion Protection Shell and Temperature Compensation
Specifications
Brand Name :
KACISE
Model Number :
K-2QJJ300/300D/500/500D
Place of Origin :
Shaanxi, China (Mainland)
MOQ :
1 Piece/Pieces
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5 working days after payment
Packaging Details :
carton or customers requests available
Input voltage :
10～30VDC
Start-up time :
＜0.5s
Baud Rate :
19200 bps
Data updating :
25HZ
Bias :
≤0.2°
Bandwidth :
5Hz
Description
High Accuracy Inclinometer Sensor With explosion protection shell (300D/500D)
Features
  • high accuracy
  • temperature compensation
  • With explosion protection shell (300D/500D)
Application
  • engineering machinery horizontal measurement
  • Precision Angle measurement
Specification
Type K-2QJJ300/300D K-2QJJ500/500D
Electric character
Input voltage 10～30VDC
Input current ＜40mA ＜70mA
Output mode RS485 4～20mA
Baud Rate 19200 bps -
Data updating 25 Hz -
Performance index
Range ±20°,±40°,±60°,±75°selectable
Nonlinear (%F.S.) 0.1%F.S.
Resolution (°/s) 0.01°
Bias ≤0.2°
Bandwidth 5Hz
Start-up time ＜0.5s
Environmental characteristics
Compensated Temperatures -40℃～70℃
compensation temperature -40℃~+70℃
Temperature (°C) -40℃~+70℃
Storage Temperature -40℃~+125℃
Physical Characteristics
Weight (g) 250g
Dimensions 60×60×30mm

Note: Range can choose ±20°,±40°,±60°,±75°

Dimension
High Accuracy Inclinometer Sensor with Explosion Protection Shell and Temperature Compensation
Workshop
High Accuracy Inclinometer Sensor with Explosion Protection Shell and Temperature Compensation High Accuracy Inclinometer Sensor with Explosion Protection Shell and Temperature Compensation High Accuracy Inclinometer Sensor with Explosion Protection Shell and Temperature Compensation
Our Advantage
  • 100% real photos--Detailed images, detailed description7
  • *24 hours online--Efficient service, Professional answers
  • The sale of products within one year warranty and life time maintenance.
  • After the receipt of the goods if the quality problems can be returned(Not artificial damage, Never used)
  • OEM is available; small quantities, mixed bulk orders are also welcome;
  • Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.

When the company set up, we began to focus on the coordination of supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.

Company strength
  • Through the ISO9001: 2008 quality system certification, access to a number of patent certificates and software copyrights
  • And Xiamen University, Chinese Academy of Sciences Institute of Acoustics, 715, Ha Engineering underwater acoustic college and many other colleges and universities,Scientific research unit cooperation
  • Products in the Northwest Industrial Group, Hainan Airlines Co., Ltd., are widely used
  • China's largest sensor, flowmeter production base
