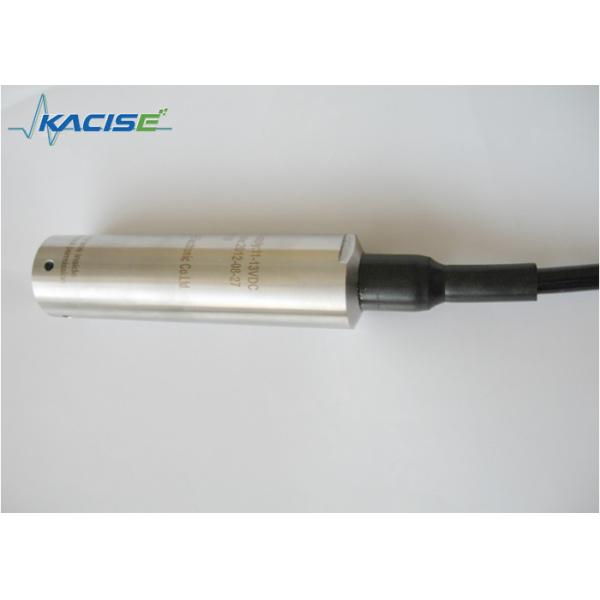

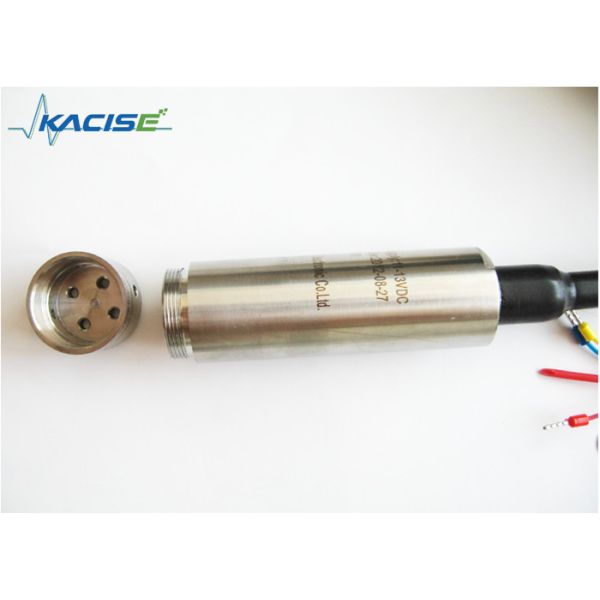

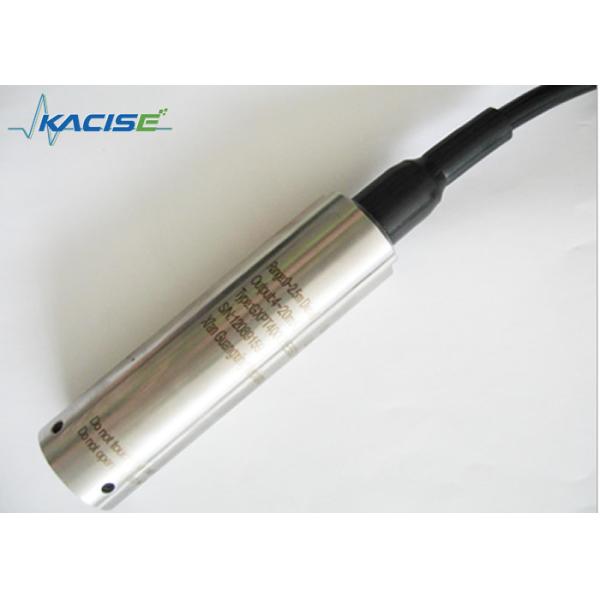

GXWPS400 Submersible Pressure Sensor and Level Transmitter with ±0.5%F.S Accuracy, Diffusion Silicon Oil Filled Core, and IP68 Protection
GXWPS400 Submersible Pressure Sensor and Level Transmitter with ±0.5%F.S Accuracy, Diffusion Silicon Oil Filled Core, and IP68 Protection
GXWPS400 Submersible Pressure Sensor and Level Transmitter with ±0.5%F.S Accuracy, Diffusion Silicon Oil Filled Core, and IP68 Protection
GXWPS400 Submersible Pressure Sensor and Level Transmitter with ±0.5%F.S Accuracy, Diffusion Silicon Oil Filled Core, and IP68 Protection
GXWPS400 Submersible Pressure Sensor and Level Transmitter with ±0.5%F.S Accuracy, Diffusion Silicon Oil Filled Core, and IP68 Protection
GXWPS400 Submersible Pressure Sensor and Level Transmitter with ±0.5%F.S Accuracy, Diffusion Silicon Oil Filled Core, and IP68 Protection
GXWPS400 Submersible Pressure Sensor and Level Transmitter with ±0.5%F.S Accuracy, Diffusion Silicon Oil Filled Core, and IP68 Protection
GXWPS400 Submersible Pressure Sensor and Level Transmitter with ±0.5%F.S Accuracy, Diffusion Silicon Oil Filled Core, and IP68 Protection
Specifications
Brand Name :
KACISE
Model Number :
GXWPS400
Certification :
CE
Place of Origin :
Shaanxi, China (Mainland)
MOQ :
1 PIECE
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2000 Piece/Pieces per Week negotiable
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Pressure range :
0~3 mH2O ...... 200 mH2O
Temperature range :
-40°C~85°C
Accuracy :
±0.5%F.S
Output signal :
4~20mA 1~5V 0.5~4.5V
Power supply :
10~30Vdc 8~30Vdc 5V(ratio)
Pressure port :
M20×1.5, G1/4, G1/2, R1/2, NPT1/2
Description
GXWPS400 Submersible and thread mounted Temperature and Level Transmitter
Application
  • Hydrologic monitoring
  • Constant voltage water supply
  • Frequency conversion water supply
  • Tail dam water level
  • Sewage treatment
  • Chemical Metallurgy
Feature
  • Accuracy ±0.5%F.S
  • Diffusion silicon oil filled core body
  • Various measuring range and signal output
  • Submersible and thread mounted
Introduction

The GXWPS400 Series is the simultaneous measurement of temperature and pressure transmitters.
Having the characteristics of high reliability, high stability, high accuracy. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive liquids and gases. The product uses a precise calibration 1Cr18Ni9Ti stainless steel structure, oil-filled pressure core selection of well-known international brands, a dedicated programmable transmitter conversion circuit, and can facilitate its zero and full scale. Two-wire the Circulation output; three-wire voltage and current output.
Abrasion, oil, acid and alkali resistant, high-strength special breathable cable can be used depending on site configuration.

Electronic interface and signals definition

GXWPS400 Submersible Pressure Sensor and Level Transmitter with ±0.5%F.S Accuracy, Diffusion Silicon Oil Filled Core, and IP68 Protection

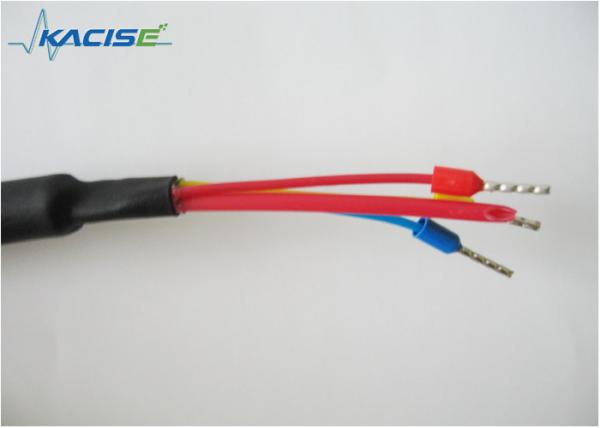

Electric connection
PlugTwo wireCableThree wireCable
1PowerRedPowerRed
2Output Blue/green Power ground Black
3 OutputBlue/green
4(E)ShieldYellowShieldYellow
Output signal
Two wire4~20mA
Three wire4~20mA, 0~20mA
0~5V, 0.5~4.5V, 1~5V,0~10V(dc)
Parameter
Spec. Value
Pressure range0~3 mH2O ...... 200 mH2O
Temperature range-40°C~85°C
Load pressure1.5times nominal value pressure (1.5X)
Rupture pressure3times nominal value pressure (3X)
Accuracy±0.5%F.S
StabilityTypical value 0.1%F.S, Max. value: 0.2%F.S
Operating temperature-40°C~85°C
Compensation temperature-10°C~70°C
Medium compatibilityAll Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance2 wire system3 wire system
Output signal4~20mA1~5V0.5~4.5V
Power supply10~30Vdc8~30Vdc5V(ratio)
Load pressure(U-10)/0.02(Ω)＞100kΩ
Insulation＞100M Ω@50V
Electrical connectionwaterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68
Pressure portM20×1.5, G1/4, G1/2, R1/2, NPT1/2
Pressure typeG, SResponse time: 10ms
CertificateIntrinsically safe mode E, CE
EMI/EMCEMI: EN50081-1/-2; EMC: EN50082-2
Ordering information

GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package

  1. Type: WPS400=universal type,
  2. Range: 0~3 mH2O ...... 200 mH2O= the upper limitation of the range
  3. Output:: A=4~20mA,
  4. Power: 8~30Vdc, 10~30Vdc,
  5. Pressure port : T=Submersible, M=M20×1.5, G=G1/4, G2=G1/2, R2=R1/2, N2=NPT1/2
  6. Electric connection: C=fixed cable outlet,
  7. Cable length: XXm=XX meter 1-150m
  8. Package: Bb, Foam
