3kW-36MW Vacuum Curing Oven for the transformers core drying ,impregnated coil drying,resin curing
3kW-36MW Vacuum Curing Oven for the transformers core drying ,impregnated coil drying,resin curing
3kW-36MW Vacuum Curing Oven for the transformers core drying ,impregnated coil drying,resin curing
3kW-36MW Vacuum Curing Oven for the transformers core drying ,impregnated coil drying,resin curing
3kW-36MW Vacuum Curing Oven for the transformers core drying ,impregnated coil drying,resin curing
3kW-36MW Vacuum Curing Oven for the transformers core drying ,impregnated coil drying,resin curing
Specifications
Brand Name :
FULITE
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1
Price :
Based on the price of the day
Payment Terms :
L/C, T/T
Supply Ability :
Spot adequacy
Delivery Time :
Based on the product
Packaging Details :
Wooden packing
Drying temperature range :
room temperature~200 ℃
Vacuum degree :
- 0.098MPa
Heating method :
electric heating or steam heating
Capacity :
50L~5000L (can be customized according to customer needs)
Description

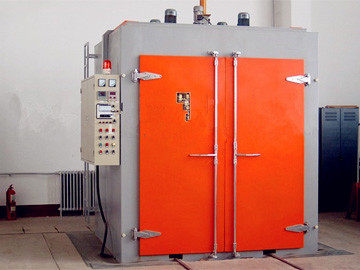

Vacuum Curing Oven for the transformers core drying

Vacuum Curing Oven for the transformers core drying is an efficient and energy-saving drying device widely used in industries such as chemical, pharmaceutical, food, and electronics. This device combines the dual advantages of hot air circulation and vacuum drying, and can quickly remove moisture or solvents from materials in low-temperature environments while maintaining the original characteristics of the materials and avoiding damage caused by high temperatures.

3kW-36MW Vacuum Curing Oven for the transformers core drying ,impregnated coil drying,resin curing

Advantages of hot air circulation vacuum drying equipment:

Main Standard model
Model HB-1 HB-2 HB-3 HB-4 HB-5 HB-6
Chamber size mm
(W×D×H)		 1500×1600×1600 2000×2000×2000 2000×3000×2000 2000×3500×2000 2200×4000×2000 3000×5000×3000
Working temp,(℃) RT—200 RT—200 RT—200 RT—200 RT—200 RT—200
Voltage /Frequency(V/ Hz) 3—380/50 3—380/50 3—380/50 3—380/50 3—380/50 3—380/50
Heating power(kw) 27 45 54 63 72 96
Temp. Uniformity (%) ±2.5 ±2.5 ±2.5 ±2.5 ±2.5 ±2.5
Temperature fluctuation(℃) ±1 ±1 ±1 ±1 ±1 ±1
Weight (T) 2 3 4 4.5 6 8
