Specifications
Brand Name :
nobler
Model Number :
NBE001
Place of Origin :
China
MOQ :
1
Price :
us 800-880
Delivery Time :
20days
Packaging Details :
1420*800*1060mm
Payment Terms :
T/T
Supply Ability :
500sets/m
Tire Number :
4
Forward Shift Number :
4
Size :
1420*800*1060mm
Rated Load Capacity :
300kg
Dead Weight :
0.23m³
Endurance Capacity :
4h
Charging Time :
5 - 6h
Charging Voltage :
220V/50Hz
Description

This electric dump truck is a versatile and efficient mini wheel dumper specifically engineered to address a wide range of material handling requirements across scenarios

Product Introduction of Electric Dump Truck

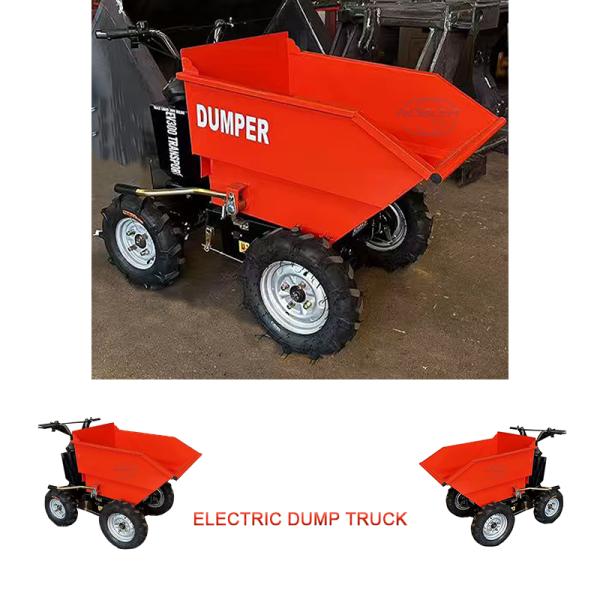

This electric dump truck is a versatile and efficient mini truk dumper designed to meet various material handling needs. As an electric dump truck, it relies on electric power, which not only makes it environmentally friendly but also ensures smooth and quiet operation. Whether in construction sites, farms, or small-scale logistics scenarios, this electric dump truck can showcase its excellent performance.
220V / 50Hz 700 W Electric Mini Dump Truck Long Life
The wheel dumper is equipped with four - speed adjustable functions, allowing operators to select the most suitable speed according to different loads and working conditions. This flexibility greatly enhances the adaptability of the electric dump truck in various environments. Moreover, the electric dump truck features a user - friendly design: users can stand on the foot pedal to control the electric行走, making the operation more convenient and labor - saving.
220V / 50Hz 700 W Electric Mini Dump Truck Long Life
In terms of capacity, the inner diameter of the truck bed of this mini truk dumper reaches 61 centimeters, providing ample space for transporting materials such as sand, gravel, or agricultural produce. When it comes to unloading, the wheel dumper supports manual dumping, enabling quick and easy discharge of materials, which improves work efficiency.
220V / 50Hz 700 W Electric Mini Dump Truck Long Life
All in all, this electric dump truck combines the advantages of being a mini truk dumper and a wheel dumper. Its electric - powered operation, adjustable speed gears, convenient standing - and - driving design, and practical manual dumping function make it an ideal choice for those seeking a reliable and efficient material handling solution. Whether you need to move heavy loads or transport goods over short distances, this electric dump truck, as a mini truk dumper and wheel dumper, will not disappoint you.

220V / 50Hz 700 W Electric Mini Dump Truck Long Life

Brand NOBLER
Model NBE001
Rated Load Capacity 300kg
Overall Dimensions 1408*740*965
Turning Radius 1.5m
Dead Weight 170kg
Hopper Capacity 0.23m³
Endurance Capacity 4h
Charging Time 5 - 6h
Charging Voltage 220V/50Hz
Climbing Angle 15°
Battery Manufacturer TIANENG Graphene
Battery Model 48V20ah
Motor Power 700W
Reduction Ratio 0:00
Tire Model (Front) 4.00 - 10
Tire Model (Rear) 4.00 - 8
Tire Pressure 0.25mpa
Forward Speed (High) 15km/h
Forward Speed (Medium) 12km/h
Forward Speed (Low) 9km/h
Reverse Speed 6km/h
Packing specification 1420*800*1060mm
Complete specification 1408*740*965mm
Weight 175KG(bare computer)/210KG(After packing)
Load-bearing 300kgmm
Walking mode self-propelled traver
Tipping method manual lifting
Starting mode Electrical starting

220V / 50Hz 700 W Electric Mini Dump Truck Long Life

Qingdao Nobler Special Vehicles Co., Ltd. was established in 2015 is a research and development, production and sales in one of the modern machinery manufacturing enterprises. The main products of the company are flower trolley, flower packaging bag,lawn mower ,electric dump truck, fruit and vegetable packaging bag, cargo turnover car, seedling car, bud truck, dog cage, climbing truck, electric tractor, tire rack, storage turnover car, various shelves and other sheet metal products, which can be customized according to customer demand.The total area of the factory is more than 20,000 square meters, with a number of advanced packaging bag production line, raw material forming production line, CNC stamping, welding robot and other advanced sheet metal processing and forming production line equipment, and the annual production capacity of various vehicles reaches more than 200,000 sets. After years of dedicated operation, it passed the IS09001 international quality management system certification in 2021, and was awarded the national high-tech enterprise in the same year.
