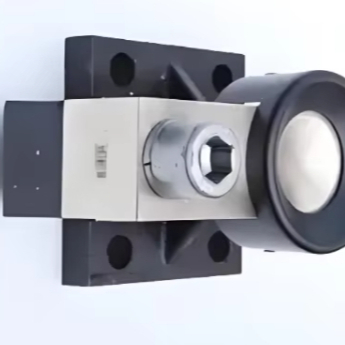

Zemic Original HM9B 30t Analog Load Cell
Zemic Original HM9B 30t Analog Load Cell
Zemic Original HM9B 30t Analog Load Cell
Zemic Original HM9B 30t Analog Load Cell
Zemic Original HM9B 30t Analog Load Cell
Zemic Original HM9B 30t Analog Load Cell
Specifications
Brand Name :
ZEMIC
Model Number :
HM9B
Certification :
OIML
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Supply Ability :
1000pcs/m
Delivery Time :
5-15days
Packaging Details :
cartons and pallet
Material :
Alloy steel
Theory :
Resistance Sensor
Output :
Analog Sensor
Usage :
Pressure sensor
name :
low force load cell
Rated load :
30t
Description

Zemic Original HM9B 30t Analog Load Cell


Specifications:

Capacityt10/20/25/30/40SE/40/50
Accuracy
C1C2C3A5MB10M
Approvals


OIML R60 C3

Maximum number of
verification intervals		n max100020003000500010000

Minimum load cell
verification interval


v min


Emax/3000


Emax/5000


Emax/7500


Emax
/15000


Emax
/10000


Combined error(%FS)≤±0.050≤±0.030≤±0.020≤±0.026≤±0.050
Creep(%FS/30min)≤±0.038

≤±0.024


≤±0.016



≤±0.017


≤±0.040
Temperature effect
on sensitivity

%FS/10℃)


≤±0.028



≤±0.017

≤±0.011


≤±0.013≤±0.040
Temperature effect
on zero

(%FS/10℃)



≤±0.047


≤±0.023


≤±0.015


≤±0.014


≤±0.020

Output sensitivity


mv/v)


2.0±0.002

2.3±0.002


2.4±0.002


1.9±0.002


1.8±0.002


Input resistance(Ω)700 ±7775 ±5750 ±7
Output resistance(Ω)

(Ω)

700 ±7

Insulation resistance(MΩ)≥ 5000(50VDC)
Zero balance(%FS)1.5
Temperature, compensated

(℃)


-10~+40


Temperature,allowed

(℃)


-35~+65


Excitation, Recommended

(V)


5~12(DC)


Excitation,Max

(V)


18(DC)


Safe overload

(%FS)


150
Ultimate overload

(%FS)


300

Outline Dimension mm(inch):


Zemic Original HM9B 30t Analog Load Cell

Capacity:10t to 50t.
High accuracy.
Alloy steel construction.
Easy installation, reliable performance.


Description:


1. The measuring bridge features high sensitivity, wide range, simple circuit, and high precision.

2. Easy to achieve temperature compensation, well meeting strain measurement requirements.

3. The sensor’s elastic body has a special structure with good bending/torsion resistance, enhancing its natural frequency, anti-fall, anti-deflection, and anti-interference performance.

4. The sensor can be installed via special connectors, convenient and reliable.

5. Keep the sensor away from high heat sources during use.

6. When checking the sensor’s insulation resistance, megger voltage shall not exceed 100V.

7. Shake meter testing is strictly prohibited.

8. Store in an environment of -10℃~50℃ and ≤85% relative humidity.

9. To prevent chemical corrosion, coat the sensor’s outer surface with Vaseline during installation.

10. The sensor’s housing, protective cover, and lead connector are all sealed.

Zemic Original HM9B 30t Analog Load CellZemic Original HM9B 30t Analog Load Cell



Competitive Advantage:

1. OEM is available

2. 24 hours online service

3. Inquiry will be replied in 2 hours

4. One year warranty

5. 1% free spare part

6. Free parts for any breakdown with convincing evidence


Applications:


It is used in truck scale/weighbridge
