Truck Weighbridge 200klb Double Ended Shear Beam Load Cell
Truck Weighbridge 200klb Double Ended Shear Beam Load Cell
Truck Weighbridge 200klb Double Ended Shear Beam Load Cell
Truck Weighbridge 200klb Double Ended Shear Beam Load Cell
Specifications
Brand Name :
OEM
Model Number :
DLC101
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Supply Ability :
100pcs/m
Delivery Time :
25days
Packaging Details :
carton
Material :
Alloy steel ,stainless steel
Theory :
Resistance Sensor
Output :
digital Sensor
Usage :
Pressure Sensor
sealing class: :
IP67-IP68
name :
beam type load cell
Description

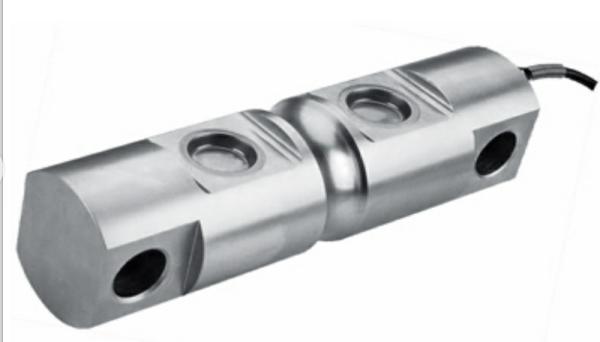

Digital Double Ended Beam weighing Load Cells 200klb used in truck weighbridge

Specifications:

Truck Weighbridge 200klb Double Ended Shear Beam Load Cell

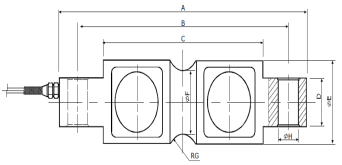

Cap./Size A B C D E F G H
20klb 206.3 174.8 133.1 28.5 49.3 37.6 12.7 16.8
30~60klb 260.4 215.9 164.8 60.2 76.2 69.3 25.4 26.9
100klb 285.8 241.3 190.2 63.5 95.3 82.3 25.4 26.9
150klb 285.8 241.3 190.2 71.1 99.1 92.5 38.1 26.9
200klb 409.0 330.2 254.0 116.8 136.7 131.1 50.8 39.6
Rated Load: 5/10/20/30/60/100/150/200klb
Rated Output: 1000000 Insulation Resistance: ≥5000MΩ
Baud Rate:: 9600 Baud Operating Temperature Range: -30~+70℃
Measuring Rate: 80/sec Maximum Safe Over Load: 150%F.S
Communication Mode: RS485/4-wire Ultimate Over Load: 250%F.S
Combined Error: ±0.03% F.S Recommend Excitation Voltage: 10~12V DC
Creep Error(30min): ±0.02% F.S Maximum Excitation Voltage: 15V DC
Zero Balance: ±1% F.S Sealing Class: IP67/IP68
Temp. Effect On Zero: ±0.017% F.S/10℃ Element Material: Alloy/ Stainless Steel
Temp. Effect On Span: ±0.017% F.S/10℃ Cable: Length=12m~18m

Description:

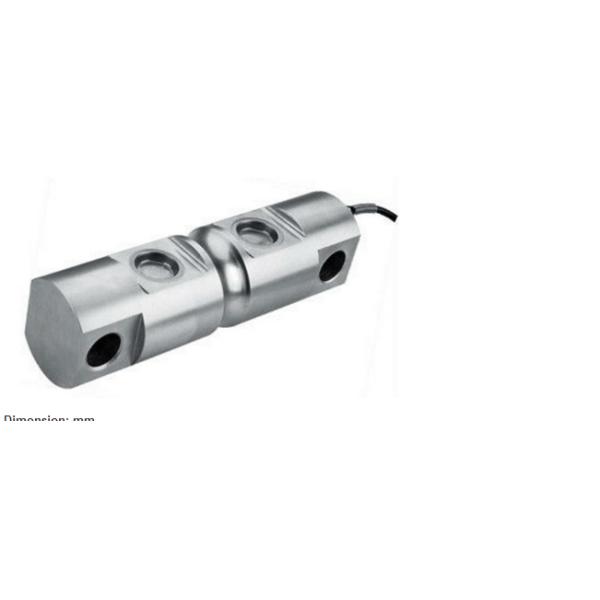

Double ended beam load cells LC101D load cell are available in the capacities 50klb~250kl, 20t~100t. LC101D digital load cell. Digital output signal (RS-485/4-Wire). Normal load 10~50t. Self-restoring rocker pin. Easy to install. Hermetically sealed. Produce according OIML R60 to 3000d. Over voltage protection.

Truck Weighbridge 200klb Double Ended Shear Beam Load Cell

Truck Weighbridge 200klb Double Ended Shear Beam Load Cell

Applications:

Double ended shear beam easy instal lation,performance stable, for crane scales, vehicle scales and other weighing systems

Competitive Advantage:


1. Professional manufacturer with 10 years

2. OEM/ODM service acceptable

3. 100% inspection

4. Warranty: one year
