Specifications
Brand Name :
HONWAY
Model Number :
HW-G8
Certification :
CE SGS ISO9001
Place of Origin :
China
MOQ :
1Set/Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
100Set/Sets month
Delivery Time :
7 working days
Packaging Details :
High Density Polyethylene pallet; Conform to export standard.
Voltage :
220V/1P/3Phrase-380V 3Phrase
Frepuency :
50/60HZ
Current :
39.2A/22.6A
Power output :
15hp(11KW)
Inverter power :
15hp(11KW)
widthor speed :
300-1600rmp
Grinding width :
750mm
Disc diameter :
250*3plate
N.W :
390KG
Water tank :
30L
Dimension :
970*750*1050mm
Description

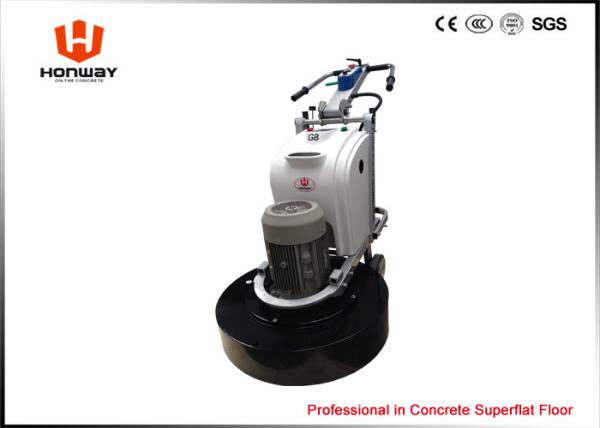

Concrete and Terrazzo Floor Grinding Polishing Machines

HW-G8 concrete grinder is a four head planetary machine. The Grinding width is 750mm, 15hp, for 220v or 380v. All-gear mechanical transmission improves the mechanical life and reliability. Four grinding heads improve the smooth operation of machinery and flexibility.

Application:

Level the uneven concrete surfaces and

Remove the paint, traffic lines, epoxy and adhesives.

Parameters:

Voltage 220-240V ,1P/3phrase 380V-440V, 3phrase
Frequency 50/60HZ 50/60HZ
Current 39.2A 22.6A
Power Output 15hp(11KW) 15hp(11KW)
Inverter power 15hp(11KW) 15hp(11KW)
Motor speed 300-1600rpm 300-1600rpm
Grinding width 750mm 750mm
Disc Dianeter 250mm*3plate 250mm*3plate
N.W 390KG 390KG
Water Tank 30L 30L
Dimension 970*750*1050mm 970*750*1050mm

Features

Integrated control panel is more easy to control and process.

High quality engine to ensure the power strong

Special design of safe buttons, easy to use the panel

Furnished with Honway five generation magnetic plates

Product Details

3,Super motor and inverter (assure the electricity safety and quality)

Motor and inverter are tested many times and long times working, in which the quality is highly assured

4,The control panel is easy to understand and operate (you could call it " foolish operation")

The panel has: inverter screen, indicator lights, switches, motor direction switches

Closer Look

Four Head Concrete / Terrazzo Floor Grinding Machines With 30L Water Tank

Four Head Concrete / Terrazzo Floor Grinding Machines With 30L Water Tank

Production Flow

Four Head Concrete / Terrazzo Floor Grinding Machines With 30L Water Tank

Company introduction

Changsha Honway Machinery Co., Ltd is the professional manufacturer for floor scarifying & grinding & polishing machine in China. We are located in Changsha city which is well known as the capital of construction machinery in China. This city has the abundant supply of machinery engineers, workers, technique, workcraft, etc. Our company develops here and builds up as a manufacturing the machines for ‘Concrete Superflat floor’

.

After Sell Service

  1. One year of warranty for machine.
  2. We always supply the consumables.
  3. We always supply the spare parts for all the old models.
  4. The spare parts can be sent out immediately at any time, delivered by DHL.
  5. The CD and operation manual is sent with machine to guide the installation process works and repair problems.
  6. All machines are tested, and the testing record will be kept, before it leaves factory.
  7. If the customers visit our factory, we could provide the training lessons.

FAQ

Q: Where is your factory?

A: It is located in Changsha, Hunan province. Welcome you come to our factory and produce process at any time.

Q: What kind of machine you supply?

A: Concrete grinding machine, concrete scarifying machine, diamond tools.

Q: What voltage of your machine?

A: 380V three phase,220V three phase and 220V single phase.

Q: What certificates of your machine?

A: 3C CE SGS
