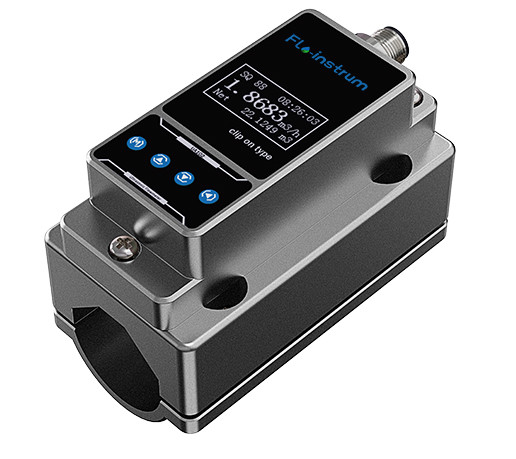

TM601 Clamp-on Ultrasonic Flow Meter with RS485 Communication IP54 Protection and OLED Display
TM601 Clamp-on Ultrasonic Flow Meter with RS485 Communication IP54 Protection and OLED Display
TM601 Clamp-on Ultrasonic Flow Meter with RS485 Communication IP54 Protection and OLED Display
TM601 Clamp-on Ultrasonic Flow Meter with RS485 Communication IP54 Protection and OLED Display
TM601 Clamp-on Ultrasonic Flow Meter with RS485 Communication IP54 Protection and OLED Display
TM601 Clamp-on Ultrasonic Flow Meter with RS485 Communication IP54 Protection and OLED Display
TM601 Clamp-on Ultrasonic Flow Meter with RS485 Communication IP54 Protection and OLED Display
TM601 Clamp-on Ultrasonic Flow Meter with RS485 Communication IP54 Protection and OLED Display
Specifications
Velocity range :
±0.1m/s ~ ±5m/s
Model Number :
TM601
Protection rate :
IP54
MOQ :
1
Packaging Details :
Conventional Packaging
Delivery Time :
3-5 working days
Cable length :
2m
Payment Terms :
T/T
Temperature range :
14℉~122℉ (-10℃~50℃)
Brand Name :
Flo-Instru
Power supply :
10-36V DC
Certification :
ISO:9001, CE
Accuracy :
±2.0%
Place of Origin :
Shenzhen, China
Description
TM601 Cleaning Industry Fix Clamp-on Ultrasonic Flowmeter
Clamp-on compact type ultrasonic flow meters specifically designed for ultrasonic cleaning machines.
Key Advantages
  • Quick installation - only 1 minute to complete setup and begin measurement
  • No pipeline modifications required - install according to operating instructions
  • Install without stopping production - no pressure loss or downtime
  • High-visibility OLED display (128x64px) - optimal viewing in dark environments
  • Compatible with various pipe materials: stainless steel, carbon steel, copper, PVC, PVDF, PPR, PPH, HDPE
Benefits & Features
No Pipe Modification Necessary

Eliminates common installation difficulties with simple clamp-on design. No need to cut pipes, shut down operations, stop production, or incur additional costs.

No Special Tools Needed

Installation requires only a single Phillips-head screwdriver. Easy and correct installation achievable by any team member without specialized knowledge.

Professional Accuracy

Reliable precision suitable for both general sensing and precise monitoring applications. Response speed up to 0.03m/s.

Technical Specifications
Velocity Rate 0.328 ft/s～±16ft/s (0.1m/s～±5m/s)
Accuracy ±2.0%
Pipe Size DN4, DN8, DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN200
Liquid Compatibility Regular water, sea water, cooling/hot water, alcohol, etc.
Pipe Material PVC, stainless steel, carbon steel, copper, etc.
Power Supply 9～36V DC, maximum 500mA
Communication MODBUS protocol, RS485
Analog Output 4-20mA, Maximum 750Ω
Alarm Output OCT upper and lower limit alarm function (optional)
Display OLED 128*64 dot-matrix display screen
Key Panel Four touch buttons
Flow Unit Metric unit selection: Cubic Meters(m³), Liters(l), USA Gallons(gal)
Time Unit /hour, /min (factory default: cubic meters per hour)
Additional Features Daily, monthly, and annual flow totalizer
Temperature Range Ambient: 14F～+122F (-10℃～+50℃)
Liquid: 14F～+122F (-10℃～+50℃)
Ambient Humidity RH 0～95%, No condensation
Housing Material Aluminum alloy, CNC machined processing
Protection Rate IP54
Cable Length 6.6ft (2m) standard
Pipe Size Range and Flow Range Reference
DN OD OD Range Inch Flow Range
DN4 OD9.53 95mm-10.5mm 1/8" 0.003～0.142 m³/h
0.047～2.374 l/min
0.013～0.627 gal/min
DN8 OD12.7 12.4mm-13.1mm 1/4" 0.011～0.570 m³/h
0.190～9.496 l/min
0.050～2.509 gal/min
DN10 OD15 14.5mm-15.4mm 3/8" 0.026～1.282 m³/h
0.427～21.366 l/min
0.113～5.644 gal/min
DN15 OD20 16.5mm-23.0mm 1/2" 0.046～2.279 m³/h
0.760～37.984 l/min
0.201～10.034 gal/min
DN20 OD25 25.0mm-30.0mm 3/4" 0.103～5.128 m³/h
1.709～85.464 l/min
0.452～22.577 gal/min
DN25 OD32 32.0mm-35.0mm 1" 0.182～9.116 m³/h
3.039～151.935 l/min
0.803～40.137 gal/min
DN32 OD40 38.0mm-45.0mm 1-1/4" 0.285～14.244 m³/h
4.748～237.399 l/min
1.254～62.714 gal/min
DN40 OD50 48.0mm-54.0mm 1-1/2" 0.410～20.511 m³/h
6.837～341.854 l/min
1.806～90.309 gal/min
DN50 OD63 58.0mm-64.0mm 2" 0.729～36.464 m³/h
12.155～607.741 l/min
3.211～160.549 gal/min
DN65 OD75 72.0mm-78.0mm 2-1/2" 1.140～56.976 m³/h
18.992～949.595 l/min
5.017～250.857 gal/min
DN80 OD90 80.0mm-92.0mm 3" 1.641～82.045 m³/h
27.348～1367.417 l/min
7.225～361.234 gal/min
DN100 OD110 108.0mm-116.0mm 4" 2.917～145.858 m³/h
48.619～2430.963 l/min
12.844～642.194 gal/min
DN125 OD140 132.0mm-142.0mm 5" 4.558～227.903 m³/h
75.968～3798.380 l/min
20.069～1003.429 gal/min
DN200 OD220 218.0mm-228.0mm 8" 11.669～583.431 m³/h
194.477～9723.852 l/min
51.376～2568.778 gal/min
Product Images
TM601 Clamp-on Ultrasonic Flow Meter with RS485 Communication IP54 Protection and OLED Display TM601 Clamp-on Ultrasonic Flow Meter with RS485 Communication IP54 Protection and OLED Display TM601 Clamp-on Ultrasonic Flow Meter with RS485 Communication IP54 Protection and OLED Display TM601 Clamp-on Ultrasonic Flow Meter with RS485 Communication IP54 Protection and OLED Display
