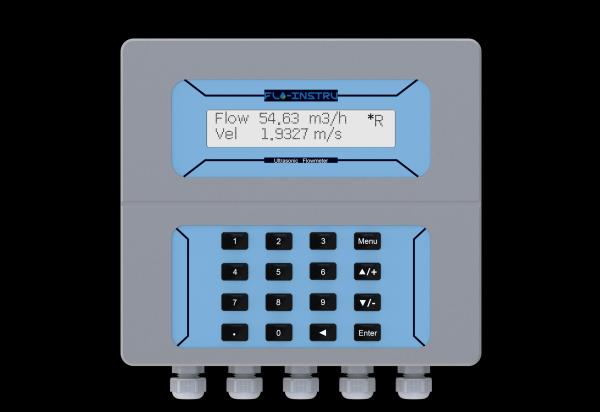

The ST505 Stationary Ultrasonic Flowmeter integrates into your management system to provide remote measurement services. Designed for wide range pipe sizes with high accuracy and convenient clear menu display.

ST505 Ultrasonic flow meter uses reliable digital signal processing technology, transmitting flow measurement for a wide range of liquids and pipe sizes with high accuracy and reliability. Combined with outstanding performance transducers and higher industrial level materials, Flo-Instruments ensures long-term operation without concerns.

Clear menu display selections make instrument use very convenient. Clamp-on transducers provide flexibility across a wide range of applications.

Based on Transit-Time technology, the ST505 offers high measurement accuracy. Using clamp-on transducers, it collects flow data by clamping onto the outside of the pipe, never contacting the fluid, preventing liquid pollution, pressure reduction, or leakage.

• Measures actual flow and total consumption of various liquids
• No loss of process control, optimization of assets and efficiency, no downtime or expense from calibration
• Adaptive signal processing algorithms optimize performance, ensuring accurate measurements even in challenging flow conditions
• Clear display interface and LCD display with alarm function, easy to operate and debug
• Utilizes transit-time ultrasonic technology for bidirectional flow measurement by precisely measuring ultrasonic signal travel time
• Leverage data logging capabilities to analyze historical flow patterns for system optimization
• Built-in keypad and simple menu system for fast programming of pipe diameter, pipe material, liquid type, and measurement units

The "V" method is considered the standard method. It usually provides more accurate readings and is used on pipe diameters ranging from 25mm to 400mm (1" ~ 16") approximately. Convenient to use, but requires proper transducer installation at the pipe's centerline with equal spacing on either side.

The "Z" method installation has less signal attenuation than the "V" method because it utilizes a directly transmitted signal that transverses the liquid only once. Suitable for pipe diameters ranging from 100mm to 3000mm (4"~120").

With the "N" method, sound waves transverse the fluid twice and bounce three times off the pipe walls. Suitable for small pipe diameter measurement. Measurement accuracy can be improved by extending the transit distance (uncommonly used).

Similar to the "N" method, measurement accuracy can be improved by extending the transit distance with the "W" method. Sound waves transverse the fluid four times and bounce four times off the pipe walls. Suitable for very small pipes (diameter less than 50mm/2").
