Specifications
Model Number :
PH301
Repeatability :
0.15%
Certification :
CE/IS09001
Analog output :
4~20mA, Max 750 Ω
MOQ :
1
SD card :
Storage: 2GB, Max: 512 files, Interval: 1~86400s
Delivery Time :
3~5 days
Payment Terms :
T/T
Pipe Size :
1''~ 200'' (25mm~5000mm)
Packaging Details :
Carton Packing
Place of Origin :
China
Linearity :
±0.5%
Brand Name :
Flo-Instruments
Keypad :
22 touch keys
Description
PH301 Portable Ultrasonic Flow Meter
Product Overview

The PH301 is a highly accurate, non-invasive portable ultrasonic flow meter for liquid flow measurement. Utilizing reliable digital signal processing technology, it transmits flow measurement for a wide range of liquids and pipe sizes with exceptional accuracy and reliability.

Monitor liquid flow from site to site freely with Flo-Instruments' PH301 portable ultrasonic flow meter. This battery-operated portable meter uses clamp-on transducers to measure flow through pipe walls without shutdown, drilling, or pressure drop.

Key Features
  • Ideal for Monitoring & Measuring Flow: Clamp-on transducers allow quick installation with no shutdown, drilling, or pressure drop
  • Built-in SD card and complete measurement tools in carrying case make it perfect for field monitoring
  • Works with Multiple Pipe Materials: Compatible with PVC, carbon steel, stainless steel, copper, PE, HDPE, ductile iron, aluminum, asbestos, and fiber glass-epoxy
  • Simple to Set Up and Use: Easily configured through 4.3-inch TFT color screen and 22 touch keys
  • Automatic display of correct transducer separation distance
  • Comprehensive Display Options: Large multifunction LCD presents data in alphanumeric and graphic forms
  • Bidirectional measurement with totalizing function
  • IP65 transmitter and IP68 transducer protection
Measurement Technology

TVT (Transit-Time Vortex) technology represents a cutting-edge approach to ultrasonic flow measurement, combining transit-time ultrasonics with vortex shedding phenomenon capabilities. This innovative integration delivers unparalleled accuracy and versatility for precise flow measurements across various industries and flow conditions.

Enhanced Accuracy in Turbulent Flows: TVT technology excels in applications with varying flow conditions between laminar and turbulent, with vortex shedding data enhancing accuracy in challenging environments.

Versatility in Fluid Types: Suitable for a wide range of fluid types, including liquids with varying viscosities and densities.

PH301 Portable Ultrasonic Flow Meter with Wireless Connectivity Remote Data Access and IP65 Transmitter for Industrial Process Control
TVT Technology Measurement Principle
Technical Specifications
Performance Specifications
Velocity range ±0.03 ~ ±40 ft/s (±0.01 ~ ±12 m/s)
Accuracy ±0.5% of measured value
Repeatability 0.15%
Linearity ±0.5%
Pipe Size 1ʺ ~ 200ʺ (25mm~5000mm)
Function Specifications
Outputs Analog output: 4~20mA, Max 750 Ω
SD card Storage: 2GB; Max: 512 files; Interval: 1~86400s
Power supply Rechargeable Lithium Battery Power (continuous operation: 12 hours)
Keypad 22 touch keys
Display 4.3 inch TFT screen, backlight LCD
Temperature Transmitter: 32℉~140℉ (0℃~60℃)
Transducer: -40℉~248℉ (-40℃~120℃)
Humidity 0 to 99% RH, non-condensing
Physical Specifications
Transmitter NEMA13 (IP54)
Transducer Encapsulated design, IP68; Standard cable length: 5m
Weight Transmitter: approximately 1.0kg
Product Images
PH301 Portable Ultrasonic Flow Meter with Wireless Connectivity Remote Data Access and IP65 Transmitter for Industrial Process Control

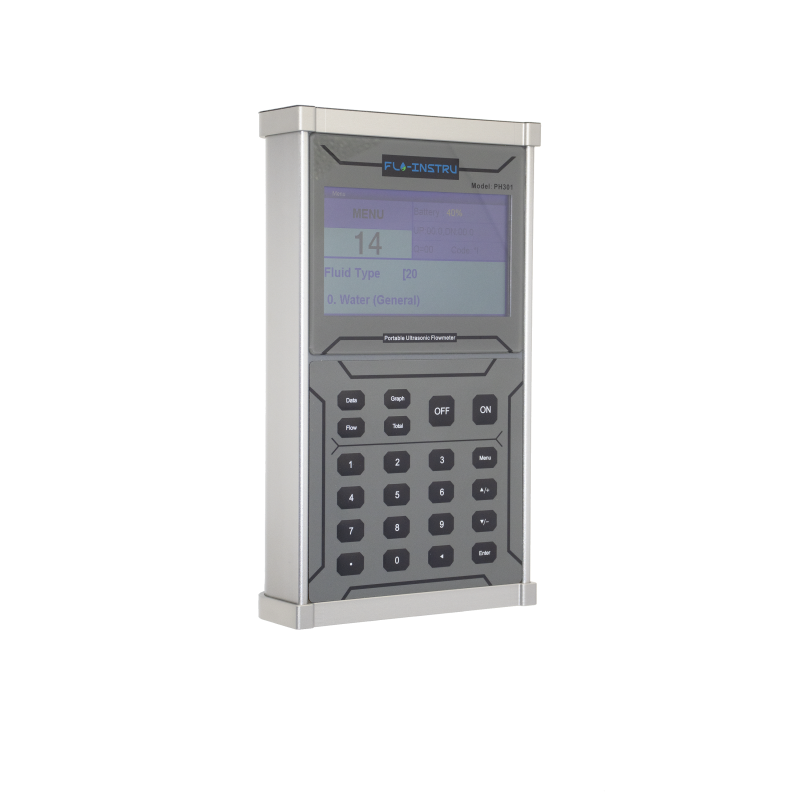

PH301 Ultrasonic Flow Meter
PH301 Portable Ultrasonic Flow Meter with Wireless Connectivity Remote Data Access and IP65 Transmitter for Industrial Process Control

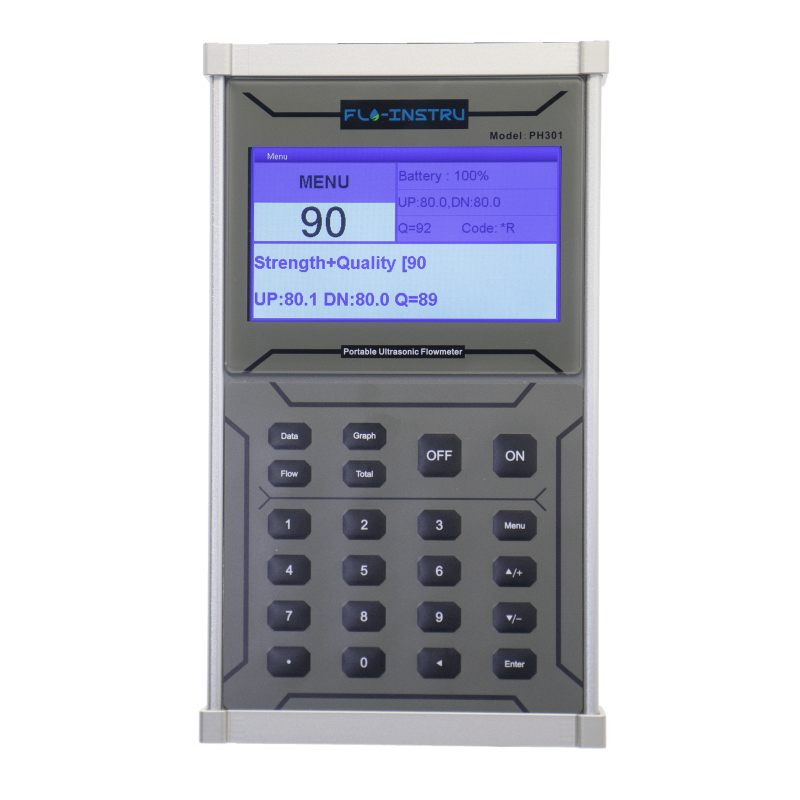

Display and Interface
PH301 Portable Ultrasonic Flow Meter with Wireless Connectivity Remote Data Access and IP65 Transmitter for Industrial Process Control
Transducer Installation
PH301 Portable Ultrasonic Flow Meter with Wireless Connectivity Remote Data Access and IP65 Transmitter for Industrial Process Control
Field Application
PH301 Portable Ultrasonic Flow Meter with Wireless Connectivity Remote Data Access and IP65 Transmitter for Industrial Process Control
Complete Measurement Kit
