Specifications
Model Number :
PH301
Pipe Size :
1''~ 200'' (25mm~5000mm)
Payment Terms :
T/T
Analog output :
4~20mA, Max 750 Ω
Certification :
CE/IS09001
Velocity range :
0 ~ ±40 ft/s (0 ~ ±12 m/s)
MOQ :
1
Power supply :
Rechargeable Lithium Battery Power (continuous operation of main battery 12 hours)
Delivery Time :
3~5 days
Packaging Details :
Carton Packing
Place of Origin :
China
Accuracy :
±0.5% of measured value
Brand Name :
Flo-Instruments
Display :
4.3 inch TFT screen, backlight LCD
Description
PH301 Portable Ultrasonic Flow Meter
The PH301 Portable Ultrasonic Flow Meter is a highly accurate, non-invasive device designed for residential water consumption monitoring. Featuring robust construction and advanced measurement technology, it provides temporary flow monitoring capabilities to support water efficiency initiatives.
Product Overview
Flo-Instruments' PH301 utilizes advanced digital signal processing technology to transmit flow measurements for a wide range of liquids and pipe sizes with exceptional accuracy and reliability. This battery-operated portable meter uses clamp-on transducers to measure flow through pipe walls, making it ideal for testing and validating flow without system shutdowns.
Key Features
  • Clamp-on transducers allow quick installation with no shutdown, no drilling, and no pressure drop
  • Built-in SD card for monitoring flow over time with up to 512 file storage capacity
  • Works with multiple pipe materials: PVC, carbon steel, stainless steel, copper, PE, HDPE, ductile iron, aluminum, asbestos, and fiber glass-epoxy
  • Simple setup and use: Configure through 4.3-inch TFT color screen and 22 touch keys
  • Alphanumeric and flow curve display: Large multifunction LCD presents data in both numeric and graphic forms
  • IP65 transmitter and IP68 transducer ratings for high protection levels
  • Bidirectional measurement with totalizing function
  • 12-hour continuous operation with built-in rechargeable battery
Measurement Technology
TVT (Transit-Time Vortex) technology represents a cutting-edge approach to ultrasonic flow measurement, combining transit-time ultrasonics with vortex shedding phenomenon for unparalleled accuracy and versatility.

Enhanced Accuracy in Turbulent Flows: TVT technology excels in applications where fluid flow conditions vary between laminar and turbulent, with vortex shedding data enhancing accuracy in challenging flow environments.

Versatility in Fluid Types: Suitable for a wide range of fluid types, including liquids with varying viscosities and densities.

PH301 Portable Ultrasonic Flow Meter with ±0.5% Accuracy, 4.3 inch TFT Screen, and Rechargeable Lithium Battery for Residential Water Monitoring
TVT Technology Measurement Principle
Technical Specifications
Performance Specifications
Velocity Range 0 ~ ±40 ft/s (0 ~ ±12 m/s)
Accuracy ±0.5% of measured value
Repeatability 0.15%
Linearity ±0.5%
Pipe Size 1ʺ ~ 200ʺ (25mm~5000mm)
Function Specifications
Outputs Analog output: 4~20mA, Max 750 Ω
SD Card Storage: 2GB; Max: 512 files; Interval: 1~86400s
Power Supply Rechargeable Lithium Battery (12 hours continuous operation)
Keypad 22 touch keys
Display 4.3 inch TFT screen, backlight LCD
Environmental Specifications
Temperature Transmitter: 32℉~140℉ (0℃~60℃)
Transducer: -40℉~248℉ (-40℃~120℃)
Humidity 0 to 99% RH, non-condensing
Physical Specifications
Transmitter NEMA13 (IP54)
Transducer Encapsulated design, IP68; Standard cable length: 5m
Weight Transmitter: approximately 1.0kg
Product Images
PH301 Portable Ultrasonic Flow Meter with ±0.5% Accuracy, 4.3 inch TFT Screen, and Rechargeable Lithium Battery for Residential Water Monitoring
Front View
PH301 Portable Ultrasonic Flow Meter with ±0.5% Accuracy, 4.3 inch TFT Screen, and Rechargeable Lithium Battery for Residential Water Monitoring
Side View
PH301 Portable Ultrasonic Flow Meter with ±0.5% Accuracy, 4.3 inch TFT Screen, and Rechargeable Lithium Battery for Residential Water Monitoring
Display Interface
PH301 Portable Ultrasonic Flow Meter with ±0.5% Accuracy, 4.3 inch TFT Screen, and Rechargeable Lithium Battery for Residential Water Monitoring

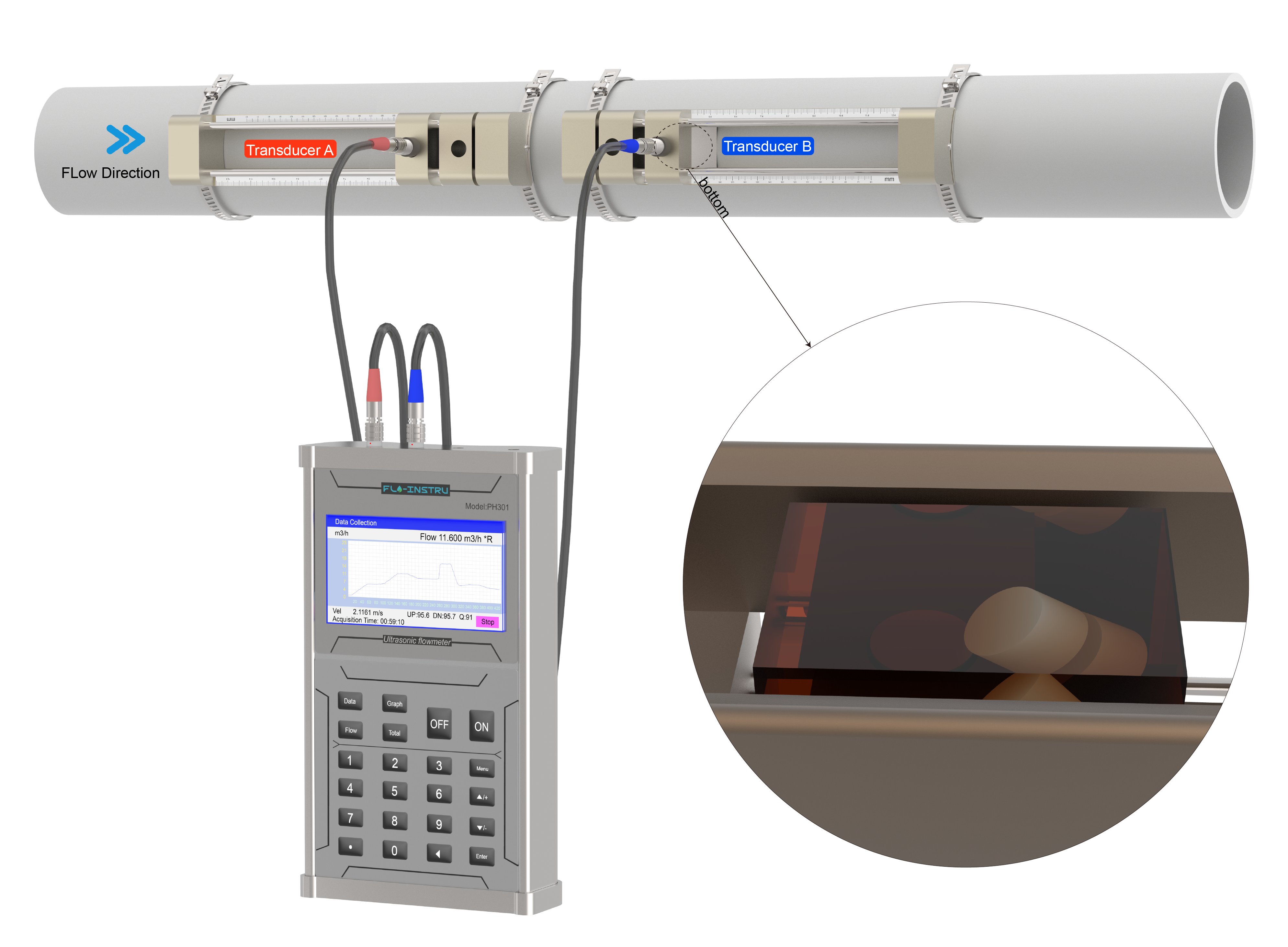

Transducer Installation
PH301 Portable Ultrasonic Flow Meter with ±0.5% Accuracy, 4.3 inch TFT Screen, and Rechargeable Lithium Battery for Residential Water Monitoring
Complete Kit with Accessories
