Specifications
Delivery Time :
3-5 working days
Packaging Details :
Conventional Packaging
Velocity Range :
0.01~12m/s (0.03~40ft/s)
Model Number :
MU801 Plus
Accuracy :
±0.5% of measured value
Payment Terms :
T/T
Communication Interface :
RS485, support Modbus communication protocol
MOQ :
1
Repeatability :
0.1%
Brand Name :
Flo-Instru
Power Supply :
24~36V DC
Certification :
ISO:9001, CE
Pipe Diameter Range :
25mm~5000mm (1"~200")
Place of Origin :
Shenzhen, China
Description
MU801 Plus Ultrasonic Flowmeter
Product Overview

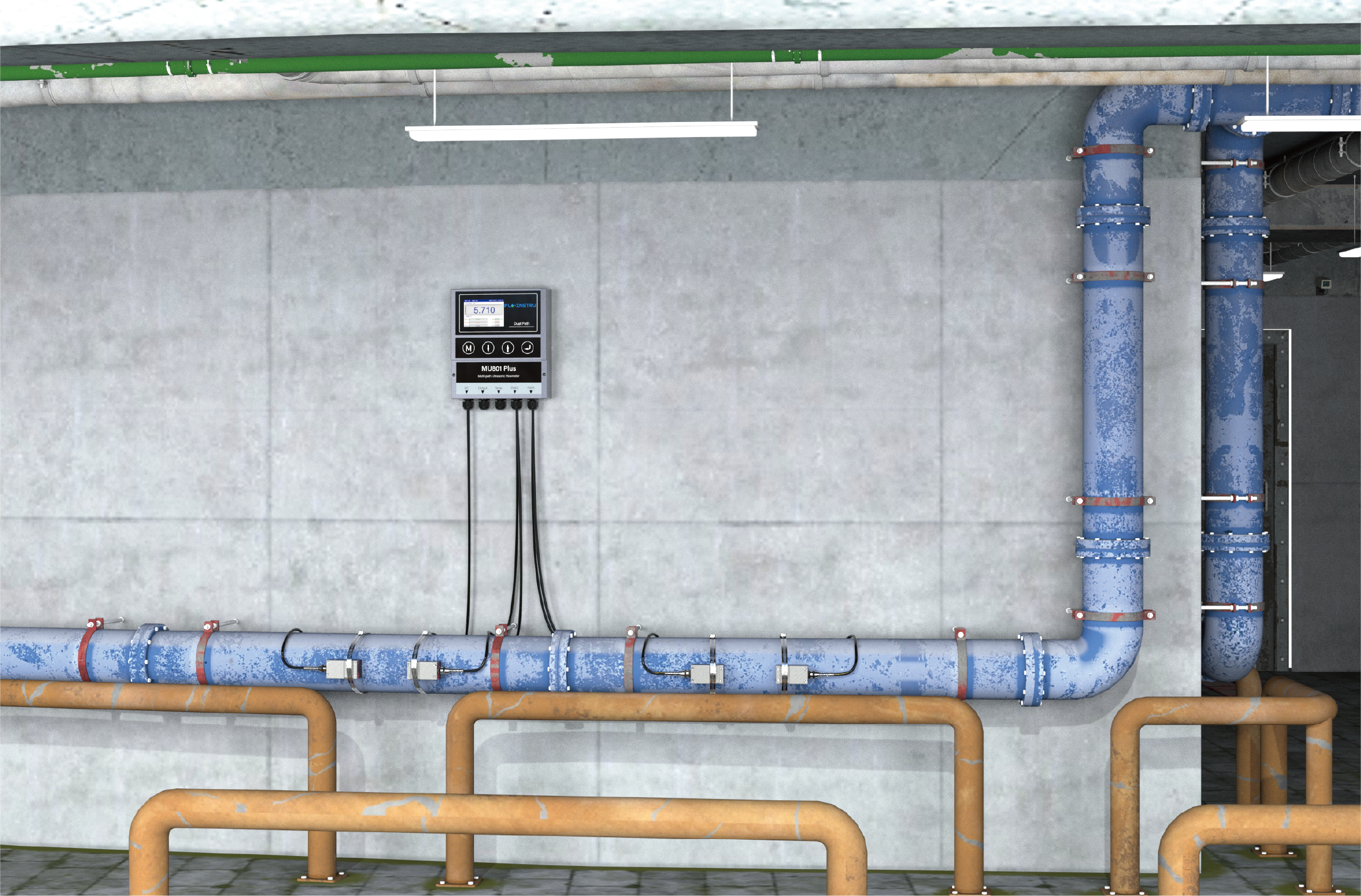

Wall-Mounted Multi-Path Ultrasonic Flowmeter MU801 Plus - Your reliable high precision flow measurement solution for petrochemical industry applications.
Introduction
The MU801 Plus ultrasonic flowmeter is a high-precision instrument with ultra-high accuracy, linearity, and repeatability, meeting strict measurement requirements. Its measurement accuracy is high and virtually free from the influence of various parameters and measuring medium interference, making it an ideal solution for flow measurement of strong corrosive, non-conductive, radiant, and flammable/explosive media.
Main Features

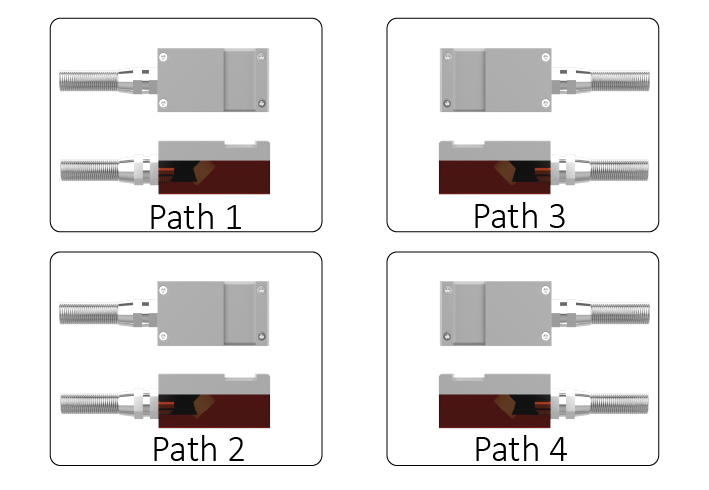

  • Support multi-path technology
  • High Accuracy: ±0.5%
Applications
Virtually all commonly used liquids, including those with small amounts of particles. Examples include hot/cold water, sea water, waste water, chemical liquids, oil, crude oil, alcohol, beer, and more.
Technical Specifications
Performance Specifications
Velocity range 0.01~12m/s (0.03~40ft/s)
Accuracy ±0.5% of measured value
Repeatability 0.1%
Pipe size 25mm~5000mm (1"~200")
Insertion type: 100mm~5000mm (4"~200")
Function Specifications
Outputs Analog output: 4-20mA & Analog input, max load: 600Ω
Pulse output: 0~9999Hz, OCT output (adjustable)
Relay output: SPST, max 1Hz, (1A@125V AC or 2A@30V DC)
Communication RS485, support Modbus communication protocol
Power supply 24~36V DC
Keypad Four Touch keys
Display 3.5" TFT LCD 480*320
Environmental Specifications
Temperature Transmitter: -40℃~60℃ (-40℉~+140℉)
Clamp-on transducer: -40℃~+120℃ (-40℉~+248℉)
Insertion transducer: -40℃~+80℃ (-40℉~+176℉)
Humidity Up to 95% RH, non-condensing
Water quality compatibility Turbidity range: 0~12000NTU
PH range: 6~9
Suitable for liquids with and without bubbles
Physical Specifications
Transmitter Die-cast aluminum, IP54
Transducer Encapsulated design, double-shielded transducer cable
Standard cable length: 33ft (10m)
Protection grade: IP68
Weight Transmitter: approximately 3.3 lb (1.5KG)
Transducer: approximately 3.3 lb (1.5KG)
Self-Detection & Display
Separately displays instantaneous and totalizer flow rates with 8-digit measurement unit display. Includes error indication functionality.
