Corrugated Cardboard Production Plant Corrugation Line
Corrugated Cardboard Production Plant Corrugation Line
Corrugated Cardboard Production Plant Corrugation Line
Corrugated Cardboard Production Plant Corrugation Line
Specifications
Brand Name :
Xinglong
Model Number :
WJ
Certification :
CE
Place of Origin :
Hebei,China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 Sets Per Year
Delivery Time :
90 working days
Packaging Details :
Plastic Film , Container
Heating Methods :
Electrical /Steam
After-sales Service Provided :
Engineers Available To Service Machinery Overseas
Warranty :
1 Year
Certificate :
CE
HS Code :
8443139000
Power(W) :
90-130kw
Weight :
about 120Tons
Power :
90-130kw
Description

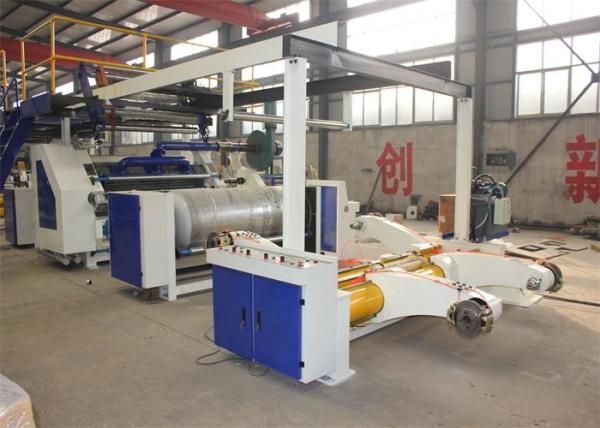

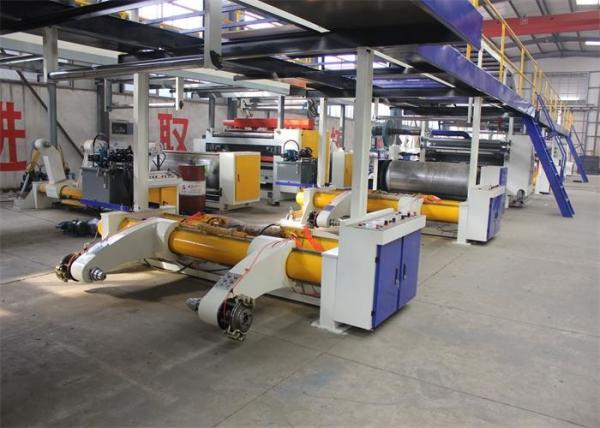

Corrugated Cardboard Production Plant Corrugation Line

Our company specialize in produce 3,5,7ply corrugated cardboard production line, we have width from 1400mm-2500mm is available. Different speed and grade depend on different users, have Mechainical and fully computer control production line.

Main equippment list
1. mill roll stand (mechanical and hydraulic shaftless is available)
2. splicer(option, it is used for high speed production line)
3. single facer
4. Preheater
5. Multi-preheater
6. Gluing machine
7. Double facer
8. Thin blade slitter scorer(simple type, up-down type, and computer control for options)
9. NC cut-off(servo control, straight and helical)
10. Stacker and delivery machine
11. Paste making system
12. Accessories(air compressor, operation box, pipe)
Main technology parameter
Model WJ120-1800
Effective width 1800mm
Design speed 120m/min
Working speed 0-100m/min
Steam pressure and consumption Pressure: 1-1.3Mpa consumption: 2500-3200kg/h
Air pressure and consumption Pressure: 0.8-1.0Mpa consumption: 1.3m³/min
Total power About 200kw
Total length About 80m(depend on base drawing)
Dimension About 80m×4.3m× 4.5 m (L×W×H)
Equipment flow: according the customers' workshop to installation the machine.
Corrugated Cardboard Production Plant Corrugation Line
