3 Ply 5 Ply Corrugated Cardboard Production Line 80-200 M / Min Easy Operation
3 Ply 5 Ply Corrugated Cardboard Production Line 80-200 M / Min Easy Operation
3 Ply 5 Ply Corrugated Cardboard Production Line 80-200 M / Min Easy Operation
3 Ply 5 Ply Corrugated Cardboard Production Line 80-200 M / Min Easy Operation
Specifications
Brand Name :
xinglong
Model Number :
WJ150-2200
Certification :
CE
Place of Origin :
Hebei
MOQ :
1set
Price :
Negotiaton
Payment Terms :
T/T, L/C, D/P
Supply Ability :
15 sets/year
Delivery Time :
3-5 months
Packaging Details :
film
Name :
corrugated cardboard production line
Model :
WJ150-2200
Automatic grade :
Automatic
Weight :
120t
Speed :
80-200m/min
Usage :
Making Corrugated Cardboard
Description

Popular selling 3 ply 5 ply carton box corrugated carton production line

Corrugated cardboard production line

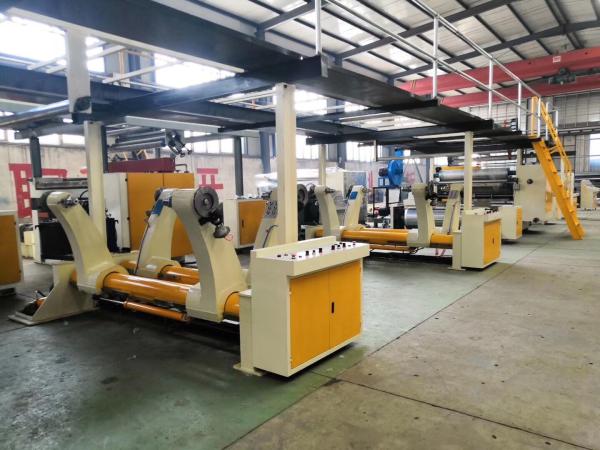

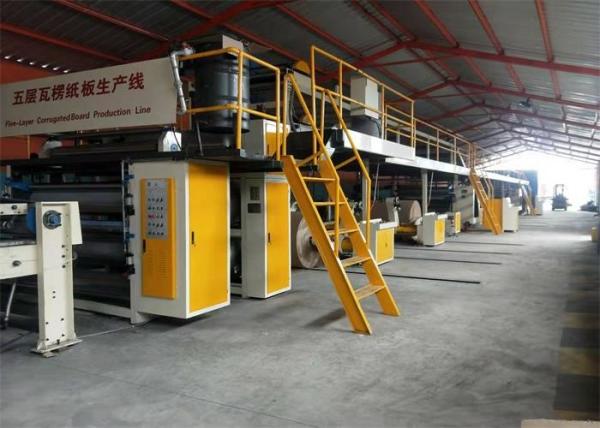

Corrugated cardboard production line is the professional advanced equipment for produce 3ply, 5ply, 7ply corrugated cardboard. The production line consists of mill rolls tand, liner(medium paper) pre-heater, single facer machine, conveyor bridge, gluing machine, double baker, slitter scorer machine, NC cut-off, conveyor and stacker, heating system. Air compression system, glue making system etc.

We produce different grade machines according to customers’ demand of speed, function

Main specification

1. width:1400mm, 1600mm, 1800, 2000, 2200, 2500mm

2. Design speed: 200m/min, 150m/min, 120m/min, 100m/min, 80m/min

3. Heating method: steam

No. Name Sets Comment
1 Mill roll stand 5 Electric mill roll stand , expansion dop top, pneumatioc brake
2 Single facer 2 vac-sorb,φ320 alloy roller ,cardan drive
3 Feeding paper bridge 1 Electric adjust deviation,adsorb tension
4 Second gluing machine 1 Conversion synchronous control
5 Triply pre-heater 1

φ 800,electric wrap angle

(including qualification certificate )
6 pre-heater 4

φ 800,land type electric wrap angle

(including qualification certificate )
7

Dry formed

part

 1 520mm×18 pieces hot plate ,adopt Adopt up and down intensive roller(including qualification certificate )
8

Heat formed

part

 1 Adopt up and down intensive roller ,length 8m
9 Feeding paper belt 1 High quality carton belt , electric promote
10 Thin blade slitter scorer machine 1 5 blade 8 line , electric Correct error , alloy blade
11 Corss cutter 1

Computer control cutting cardboard length 500-9999mm;

cutting cardboard precision ±1mm
12 Main drive 1 Main power 25KW
13 Make paste system 1 Barrel type ,electric stir circulate glue design
14 Stand feeding paper car 1 Include slipping way
15 Pump 1 Electric aeration
16 Electric system 1 One Operate cabinet ,one sinlge facer 1 main drive
17 Steam system 1 Not including heat source and pipe
18 Gantry stacker 1 Belt drive type

Flute type:

Flute type A B C D E F G Others
Flute shape UV UV UV UV UV UV UV Any
Teeth number /300mm

30

±2

50

±2

39

±2

20

±1

90

±10

124

±10

185

±12
