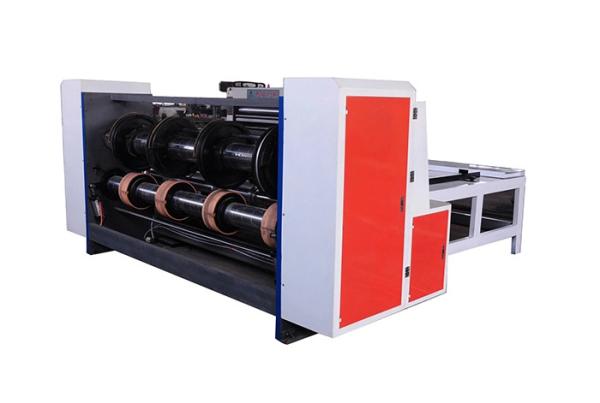

Chain Feeding RS4 Corrugation Machine , Corrugated Rotary Slotter Machine
Chain Feeding RS4 Corrugation Machine , Corrugated Rotary Slotter Machine
Chain Feeding RS4 Corrugation Machine , Corrugated Rotary Slotter Machine
Chain Feeding RS4 Corrugation Machine , Corrugated Rotary Slotter Machine
Specifications
Brand Name :
xinglong
Model Number :
SRS1422
Certification :
CE Certificate
Place of Origin :
Hebei
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
16set/month
Delivery Time :
20-30 days
Packaging Details :
film
model :
SRS1422
Packaging material :
Plastic
Color :
client request
speed :
0-60pcs/min
feeding way :
chain feeding
Description

RS4 chain feeding carton machine rotary slotter box machine

Function and usage:

The rotary slotting machine is a combination equipment, it can perform slotting,corner cutting, slitting, creasing one time, Its main characteristics of hand feeding single cardboard, all of corrugated cardboard is ok.

• Feeding table adopts chain style manual feeding paper.

• Slot blade phase adopts 360°electronic position and negative turn slightly adjust,blade axes treatedby rigidity chroming electroplate,and nicety grinding ,firmness durable .

• Gear lubricate ,adopt spout out style cys. Reduce noise,prolong gear using life .

• Adopt hackle blade .

• Can matched stiletto equipment .

The machine bottom knife shaft and pressing line wheel knife shaft with eccentric crosshead shoe adjustment, can through three, five, seven layer paperboard spacing adjust pressure.

• Blades and crease lines Combined moved left and right.

• Transmit gear adopt no clearance coopperation ,debase gear dajust eorr.

• Gear adopt concentrate feed oil lubricate ,debase machine noise ,prolong the use-time.

• Slot reamer plate daopt four reamers synchronization,save exchange board time .

• 360 degrees electric planet gear adjustment phase ,speedness and nicety.

Optional: punch and hole or air hole

Technical parameter

Model RS4-B-1222 RS4-B-1224 RS4-B-1226 RS4-B-1422 RS4-B-1424 RS4-B-1426
Cutter die diameter Φ405mm Φ480mm
Max sheet size(mm) 1200*2200 1200*2400 1200*2600 1400*2200 1400*2400 1400*2600
Min sheet size(mm) 350*500 350*500 350*500 400*500 400*500 400*500
Min slot distance(mm) 190*50*190*50 190*50*190*50
Slot width(mm) 7mm 7mm
Sheet thickness(mm) 2-10mm 2-10mm
Work speed (pcs/min) 0-60 0-60
Power (kw) 3.0 3.0
Wall board thickness(mm) 40 40
