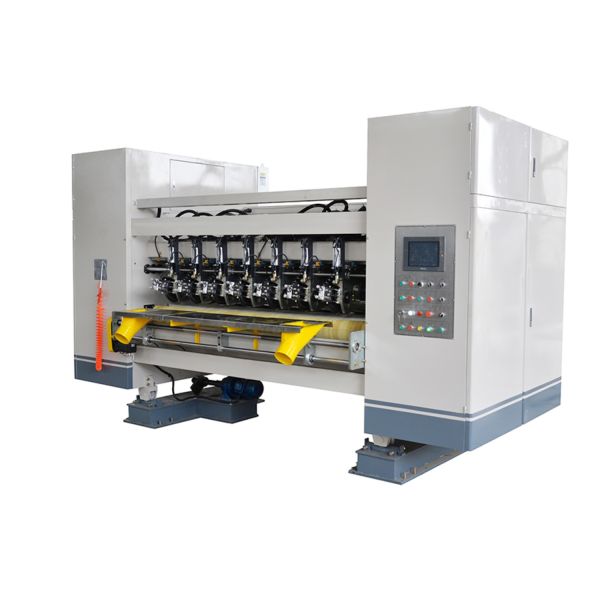

SS-200N NC. Thin Blade Slitter Scorer

Structure Characteristics:

1. AC servo control changing order 1.

2. Control system adopt computer and PLC made in TAIWAN

3. Computer can reserve 999 groups of orders, it can choose any one group of order to produce according to the need when working 电脑可储

4. Computer automatic follow the production line speed to assure in-phase.

5. Automatic sharpening blade system can complete sharpening blades continually in the process. Sharpening device can according to material or trimming condition set interval number and sharpening time at any time.

6. The automatic correct knife and line, and electric trimming function.

7. The computer with manual button can light adjust and control pressing line deep or shallow.

8. Pneumatic control upper blade wheel, upper line wheel thereby do not need cuttnig the cardboard when changing order.

9. Pressure wire wheel adjustable for uphill convex, the convex (two optional)concaveⅠ, concaveⅡ, concaveⅢ, and the lower horizontal can press different thickness and demand of the cardboard for the benefit of printing cardboard.

10. It is convenience and fast to change blade; every groups blade equipped adjustable automatic sharpening device, remember the length of paper independently, users can set in time and interval lubrication according to different quality paper and cutting status.

*1mm high-quality blade cutting cardboard so fast, to ensure smooth of cutting office, corrugated non-deformation, attractive and aesthetic and conducive to carton full-page print.

11. Elbow-line wheel to life-low controlled by cylinder, it need not cut off the cardboard while change specification and size.

12. Every knife block and wire wheel is controlled by computer, independent motor, automatic change specification, fast, accurately, positioning error≤±0.5mm

Technology Parameter:
