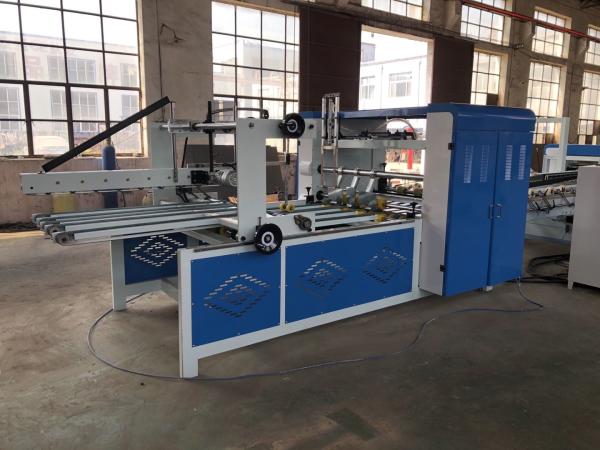

Factory Price Automatic Corrugated Printing Folder Gluer For Making Box
Factory Price Automatic Corrugated Printing Folder Gluer For Making Box
Factory Price Automatic Corrugated Printing Folder Gluer For Making Box
Factory Price Automatic Corrugated Printing Folder Gluer For Making Box
Factory Price Automatic Corrugated Printing Folder Gluer For Making Box
Factory Price Automatic Corrugated Printing Folder Gluer For Making Box
Specifications
Brand Name :
xinglong
Model Number :
AFG2600/2800
Certification :
CE
Place of Origin :
Hebei
MOQ :
1set
Price :
USD18000-22000/set
Payment Terms :
T/T, L/C
Supply Ability :
12set/month
Delivery Time :
7-15days
Packaging Details :
PE film
name :
carton folder gluer machine
Driven type :
electric
Production capacity :
120m /minute
feeding way :
belt suction
Packaging material :
Plastic
lead time :
7-20days
Weight :
4000kg
Application :
Machinery & Hardware,Food,Medical,Beverage,Apparel
Description
Factory Price Automatic Corrugated Printing Folder Gluer For Making Box
automatic glue machine is consist of three parts,which is paper feeding part, gluing and folding part and counting and stacking part. Automatic paper feeding, automatic fold and glue, automatic counting and stacking output.
The operation is simple and reliable.
The speed can reach 100-180 pieces per minute.
Advanced and reasonable structure design and manufacture, it demands for cultural level of operators is not high, and operators will be able to handle all operating procedures in one or two working days, and protect the safety of operating personnel.
Feeder uint
- Belt type with feature of accuracy and stabilization
- The thickness of corrugated board is available 3 - 10 mm
- Max. Belt Speed : 180M/Min
Gluing and folding
- Folding belt speed control
- The sheets are conveyed and folded by high
quality belt
- Supply glue from the subsidiary glue tank to main
glue tank by air pressure
- The gluing supply by stainless steel wheel with
feature of glue equality/easy disassemble
PLC control system
- Setting by convenient touch screen
- Adjustable speed control by PLC
- Data change without machine stopping
- Automatic Setting System : Option
Counter ejector
- Fast and precise sorting of the number of sheet
- Function for exquisite correction
- Roller pressing device to prevent damages

Factory Price Automatic Corrugated Printing Folder Gluer For Making Box

Main Technology Parameters:

Model 2600 2800 3000
Max cardboard size 1200×2400 1200×2600 1200×2800
Min cardboard size 170*450 170*450 170*450
Dimension L12500×W3000×H1600 L12500*W3200*H1600 L12500*W3400*H1600
Motor power 10kw 12kw 12kw
Machine weight 5500kg 6500kg 7500kg
Application board thickness 3layer or 5layer

Factory Price Automatic Corrugated Printing Folder Gluer For Making Box

Model

2600

2800

3000

A

Max

880mm
