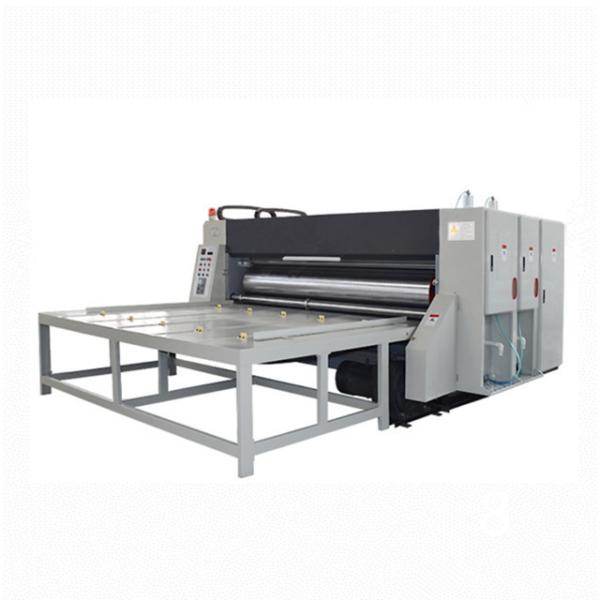

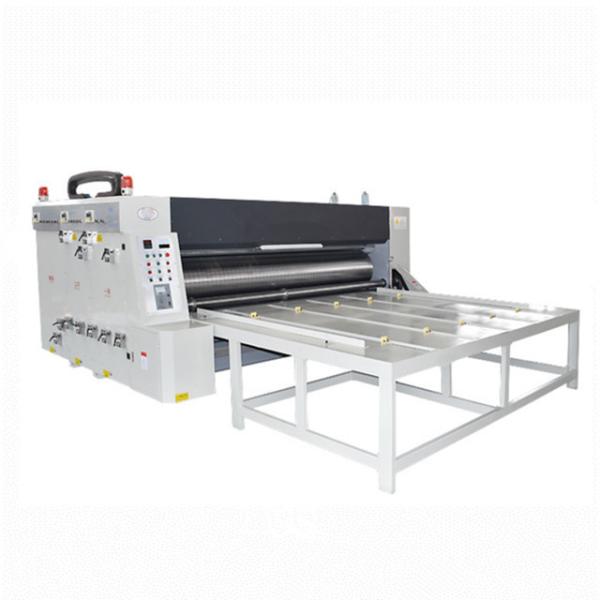

Semi Auto 3 Color Printing Die Cutting Machine Corrugated Carton Box Case Maker

Main configurations

• This machine adopts chain feeding system, equipped with side gauge make sure feeding paper accurately.
• Abrasion resistance materials as the support of the bottom of chains, fast running, low noise .
• Main motor placed under the feed table.
• Equipped with block paper steel bar to ensure the easy feeding of the bend cardboard.
• Feeding error ±1.5mm.
• Printing roller, paper feeding roller, pressure roller, all the surfaces grinding, hard chromium plating.
• Adopt planet style electrical adjustment of 360 degrees whatever operating and stopping, quickly and accurately
• Electrical separate printing unit and slotting unit ,pneumatic locking up of printing units
• Inking roller can be detached from printing plate automatically to avoid damage the printing plate.
• Inking roller equipped idling running device to prevent ink from being dried when machine stop.
• Pneumatic lifting and down the anilox roller, auto ink distributing.
• With Pneumatic diaphragm pump to supply ink.
• Main transmission gears are made by 45#steel after high frequency quenching.
• Drive part adopts spray lubricating system, improve the precision and serve life of machine.
• Manual adjustment of the printing roll axial position 10mm.
• Printing precision±0.50 ㎜(when the paper board is plane and smooth).
• Auto count device properly controls production volume.
• The slotting knives pedestal can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only).
• The slitting knives pedestal can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only).
• The back slotting knife (Height of the box) Four knives adjustment synchronous, easy working.
• Electric adjustment Printing phase and slotting position.

• 7mm alloy steel slotting knives with indent heat treatment to enable grinding teeth sharp edge

• Main Technology Parameters

• Model		BYKM1224
  Roller diameter		480
  Max sheet size(mm)		1400*2000
  	Max printing size(mm)	1400*1800
  	Min sheet size(mm)	350×500
  	Working speed( pcs/min)	0-60
  	Printing precision(mm)	±0.5
  	Standard plate thickness(mm)	6
  	Sheet thickness(mm)	2-10mm
  	Power (kw)	11.0kw
  	Wallboard thickness(mm)	40mm
