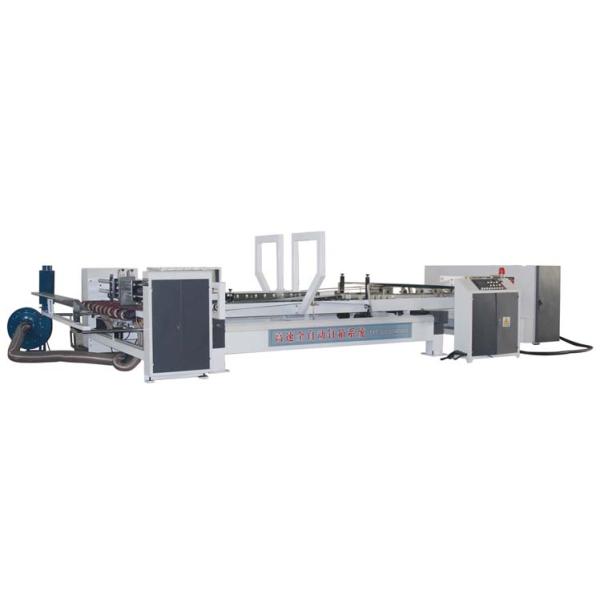

0.6Mpa Folder Gluer Carton 6HP Box Stitching Machine
0.6Mpa Folder Gluer Carton 6HP Box Stitching Machine
0.6Mpa Folder Gluer Carton 6HP Box Stitching Machine
0.6Mpa Folder Gluer Carton 6HP Box Stitching Machine
Specifications
Brand Name :
xinglong
Model Number :
1224
Certification :
CE
Place of Origin :
china
MOQ :
1 set
Price :
USD 25000-30000
Supply Ability :
100 sets per year
Delivery Time :
15 days
Packaging Details :
film
name :
folder gluer and stitcher machine
color :
customized
type :
full auto
voltage :
customized
Description

Automatic Folder Gluer And Stitching Machine For Carton Box

* Introduction of each department

1.feeding department

●Adopt the lead edge belt absorption feeding accurate and reliable.

● Adopt top grade electromagnetic clutch and electromagnetic brake system, for the individual control of feeding department.

● The height of press-paper wheel can be adjusted, the suitable thickness of cardboard is 2-8mm.

● Linkage with folding department, frequency control.

● The front baffle of feeding department and belt can be adjusted right and left.

2. stitching department

● Double imported servo drive high precision, reduce the mechanical transmission part, and reduce the mechanical failure rate.

● Stitching department adopt the touch screen operation. Parameter (stitching distance, number, species and back baffle) could change expediently.

● Control system adopts Taida PLC control system.

● All switches in the control box adopt Taiwan ShiLin.

● Bottom block, knives of stitching department adopt German tungsten steel, which is wearable.

● The head of nail is made of special steel, computer precious produce.

● Switches and buttons adopt Taiwan Tiande.

● change order in one minute very quickly, easy operation, no training necessary. Suitable for single, double and strengthen nail.

● automatic counter and easy for strapping.

● stitching distance can reach to 100mm, which display and adjust on the touch screen. Can stitch whatever the carton have cover or not.

● automatic adjust paperboard thickness.

Specification:

power 6HP
Machine length 8100mm
Machine width 3500mm
Machine weight 3700kg
Machine speed 50pieces/min
Stitching distance 30-100mm
Stitching number 1-99 stitches
Pressure requirements 0.6Mpa
Total power 13.45Kw
Power consumption 4.5Kw/H
