Specifications
Brand Name :
Fengming
Model Number :
FM-C1450-2250
Certification :
CE certification
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
10 Sets/month
Delivery Time :
25 days
Packaging Details :
Standard export wooden pallet with film package.
Model NO. :
FM-C1450-2250
Structure :
Unit Type
Max. Web Width :
1450/1650/1850/2250mm
Max. Printing Width :
1430/1630/1830/2200mm
Diameter of Web Roller :
100mm
Printing Material :
60-400GSM Paper Roll
Printing Page :
Single Faced
Printing Color :
6 Colors
Description

Ceramic Anilox Roller High Speed 6 Color Flexo Printing Machine for Paper Materials


Unit Type Flexo Printing Machine 6 Colour Eco - Friendly Multifunctional

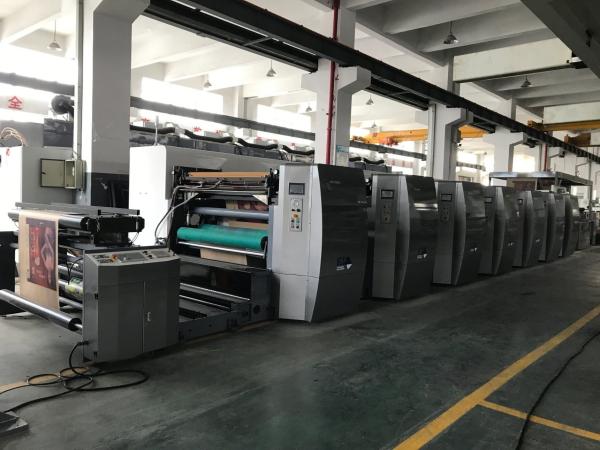

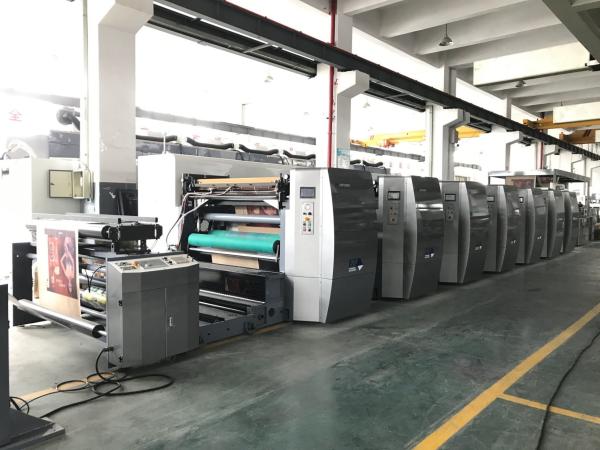

FM-C1450-2250 Flexographic Printing Machine(Petal Type)
  1. Petal type plate mounting, anilox and cylinder with quick change structure.
  2. Printing unit easy operation, cylinder and anilox pressing once successfuly.
  3. Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
  4. Registering remains the same during lifting process.

Application Object
Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters:
Specification 1450 1650 1850 2250
Max. Web Width 1450mm 1650mm 1850mm 2250mm
Max. Printing Width 1430mm 1630mm 1830mm 2200mm
Max Die-Cutting Width 1430mm 1630mm 1830mm 2200mm
Printing Repeat 600-1600mm 600-1600mm 600-1600mm 600-1600mm
Max.Unwinder Diameter 1524mm 1524mm 1524mm 1524mm
Max.Rewinder Diameter 1524mm 1524mm 1524mm 1524mm
Gearing 1/8cp 1/8cp 1/8cp 1/8cp
Max Printing Speed 160-220m/min 160-220m/min 160-220m/min 160-220m/min
Diameter of web roller 100mm 100mm 100mm 100mm
Drying mode Warm Drying/IR Drying/ UV Drying
Oil used Aqueous ink/ UV Ink
Power Requirement 380V 3PH 50Hz
Substrate 17g copy paper, cotton paper, 80-450g chrome paper, aluminum-foil paper, BOPP, PET, paper board, kraft paper
