Specifications
Brand Name :
FENGMING
Model Number :
FM-L1020
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T,L/C
Supply Ability :
20/Month
Delivery Time :
30 working days
Packaging Details :
woden pallet
Model NO. :
FM-L1200
Specification :
7*3*1.6M
Origin :
Zhejiang China
Warranty :
1 Year
Machine :
Wax Coating Machine
Material :
Wax
Useful :
Hamburger Paper
Function :
Waterproof
Transport Package :
Standard
Customization :
Available | Customized Request
Description

High Speed Automatic Wax Coating Machine for Hamburger Paper Customization Made Easy

Product Description

This machine iss mainly used in food and packaging industry's packaging paper wax coating, so that papers can be moisture-proof and waterproof, such as hamburger paper, candy paper, soap paper and carton packaging kraft paper coated wax.
This invention can realize high speed paper coated with wax, effective control of wax quantity, waxing effect is stable and evenly.

  1. integral alloy cast iron double wall panels
  2. frequency conversion control
  3. In front and back the waxing roller are guide rollerl, let the paper on the waxing roller surface having the angle to control paper wax dipping time
  4. the wax melting hopper and tray supply big amount of wax , ensure high speed waxing use quantity.
  5. doctor blade structure ensures wax coating evenly
  6. the special treatment paper guide roller resisting high temperature, non-stick of wax
  7. the heat transfer oil ensures the temperature of the wax stable
  8. temeprature of wax can be controled

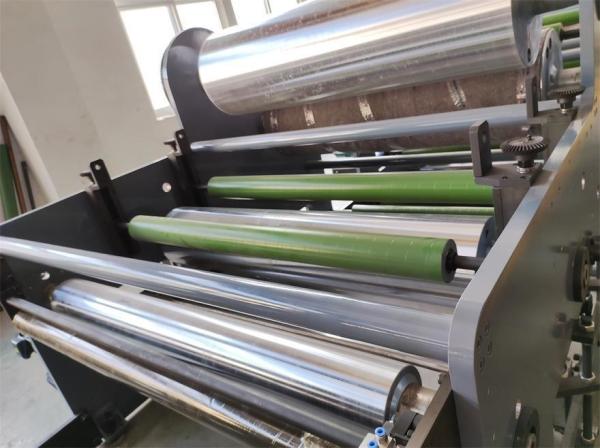

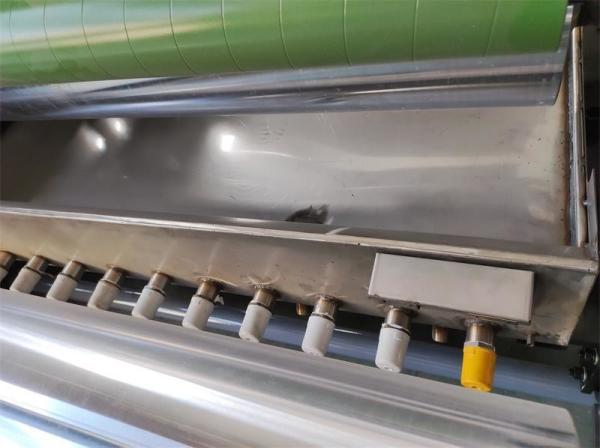

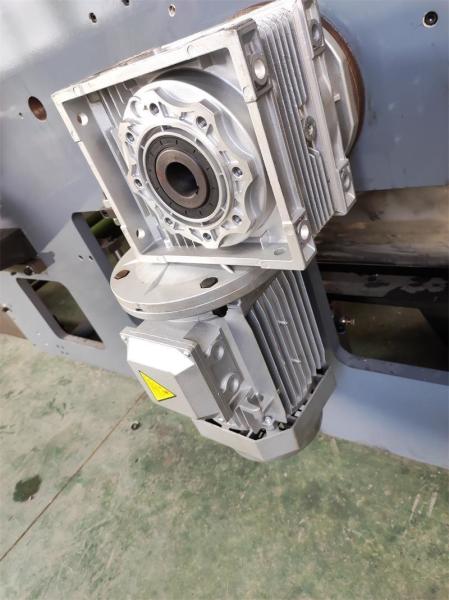

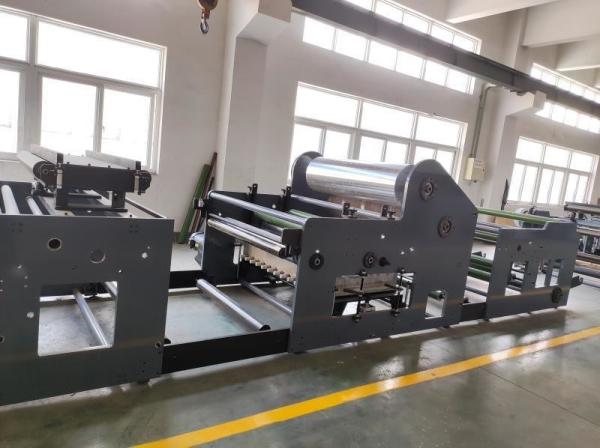

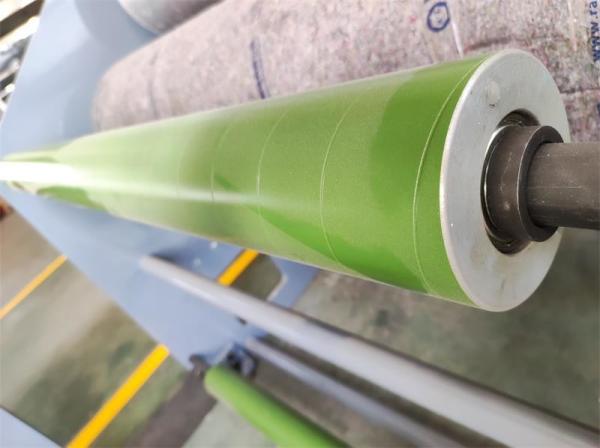

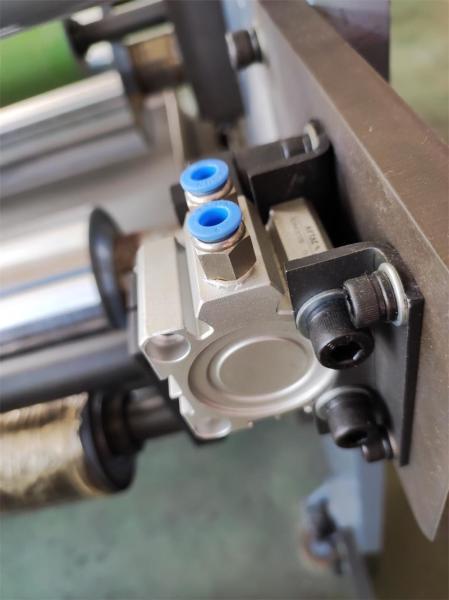

Detailed Photos

Customization Paper Wax Coating Machine Energy Efficiency Wax Coating EquipmentCustomization Paper Wax Coating Machine Energy Efficiency Wax Coating EquipmentCustomization Paper Wax Coating Machine Energy Efficiency Wax Coating EquipmentCustomization Paper Wax Coating Machine Energy Efficiency Wax Coating EquipmentCustomization Paper Wax Coating Machine Energy Efficiency Wax Coating EquipmentCustomization Paper Wax Coating Machine Energy Efficiency Wax Coating Equipment

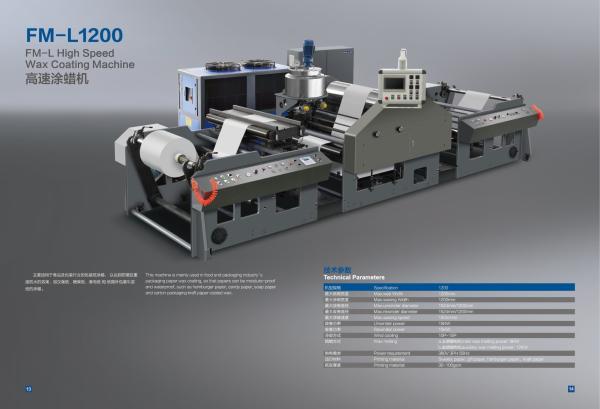

Product Parameters
Tachnical Parameters
Specification 1200
Max.Web Width 1200mm
Max.waxing Width 1200mm
Max.unwinder diameter 1524mm
Max.rewinder diameter 1524mm
Max.waxing speed 150m/mim
Rewinder power 7.5kw
Water Cooling System 10P-15P
Wax melting Wax Tray Heaater:18kw; Blade Heater:4kw
Power Requirement 380V 3PH 50HZ
Material Sweets paper, gift paper, hamburger paper, kraft paper
Material 30-100gsm
