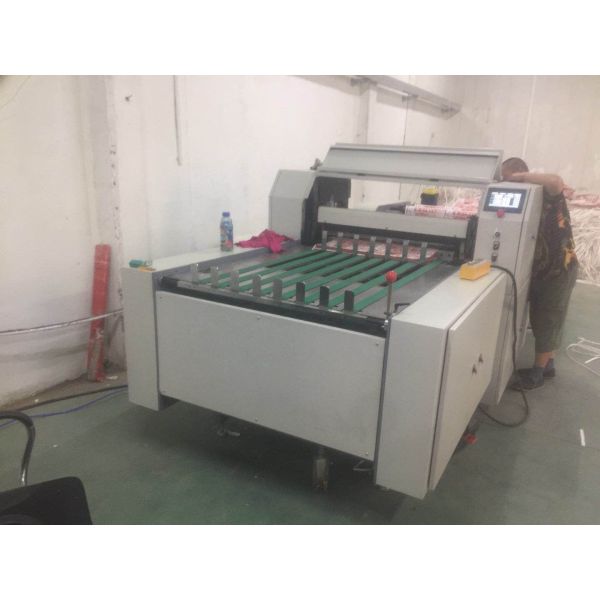

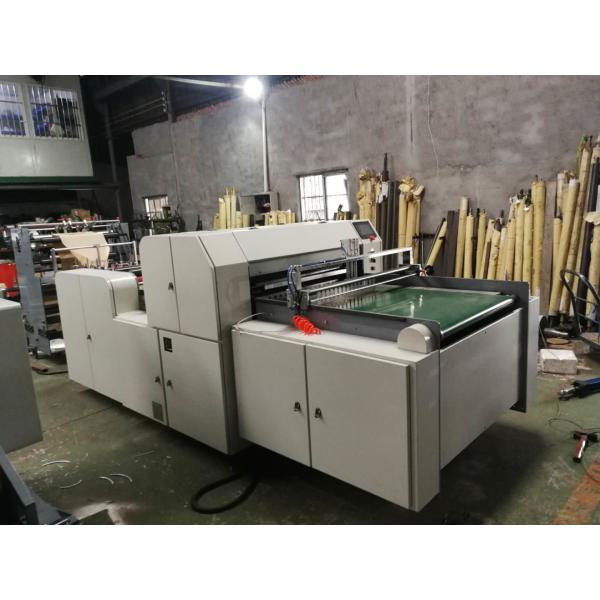

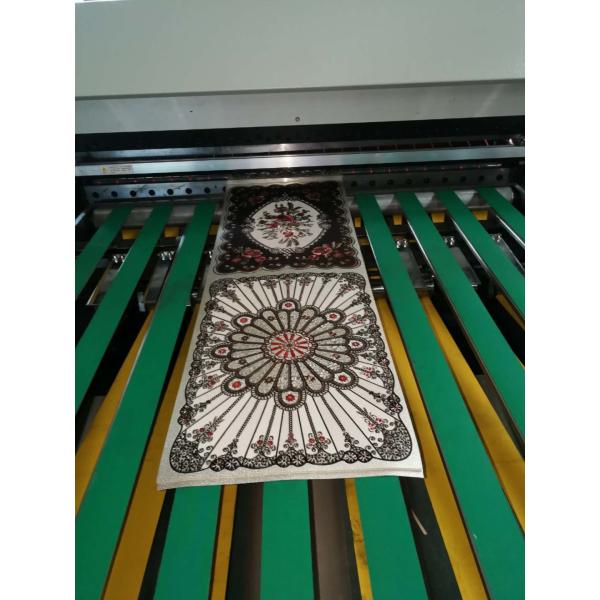

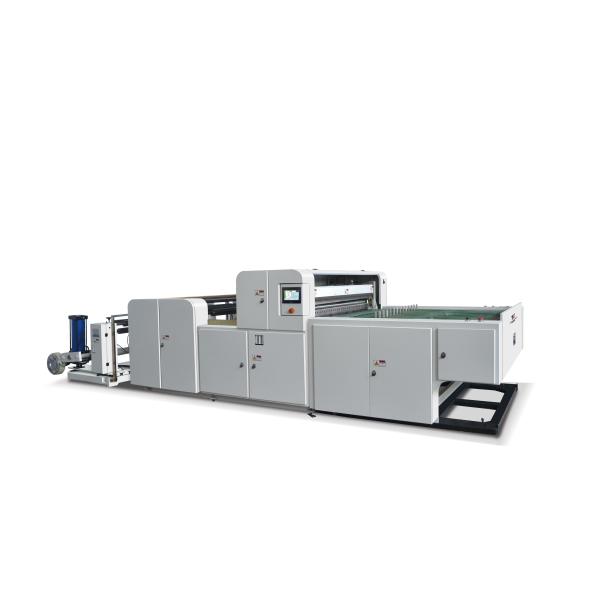

PVC Paper Roll To Sheet Cutting Machine 800mm With Material Conveyor
PVC Paper Roll To Sheet Cutting Machine 800mm With Material Conveyor
PVC Paper Roll To Sheet Cutting Machine 800mm With Material Conveyor
PVC Paper Roll To Sheet Cutting Machine 800mm With Material Conveyor
PVC Paper Roll To Sheet Cutting Machine 800mm With Material Conveyor
PVC Paper Roll To Sheet Cutting Machine 800mm With Material Conveyor
PVC Paper Roll To Sheet Cutting Machine 800mm With Material Conveyor
PVC Paper Roll To Sheet Cutting Machine 800mm With Material Conveyor
Specifications
Brand Name :
ruiting
Model Number :
RTHQ-800C
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15 sets per month
Delivery Time :
30 working days
Packaging Details :
wooden case
Condition :
New
Weight :
3500KGS
Dimension(l*w*h) :
6000*1600*1400MM
Power(w) :
7kw
Speed :
0-200m/min
Product name :
800 PVC Roll To Sheet Cutter With Material Conveyor
Max cutting length :
1000mm
Voltage :
380V/220V
Warranty :
1 Year
Cutting material :
PVC, paper,Alu foil
Description

800 PVC Roll To Sheet Cutter With Material Conveyor

Product Description

This machine can cutting material from roll to sheets. It can adjust different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

1) Frequency converter speed control of the host, PLC touch screen control system,

2)Automatic counting, automatic fixed length, alarm stop

3) The motor adopts three-phase asynchronous frequency converter motor 2.2KW

4) The frequency converter adopts sine 2.2kw

5)Actively adopt servo control positioning method

6)With one pcs 3 inch air shaft for unwinding

7)Web guide system

8) Sheeting conveyor

Main Technical Specification:

Cross cutting machine technical specification
Max. Cutting width 800mm
Max.diameter of material Φ1000mm
Min.width of cutting 50mm
Power Supplier 7kw
Cutting precision ±0.2mm
Fixed speed 20-200times/min
Length cutting width 200-1500mm
Overall dimensions(L*W*H) 6000*1600*1400mm
Machine weight 3500KG

PVC Paper Roll To Sheet Cutting Machine 800mm With Material Conveyor

PVC Paper Roll To Sheet Cutting Machine 800mm With Material ConveyorPVC Paper Roll To Sheet Cutting Machine 800mm With Material ConveyorPVC Paper Roll To Sheet Cutting Machine 800mm With Material Conveyor

PVC Paper Roll To Sheet Cutting Machine 800mm With Material Conveyor

PVC Paper Roll To Sheet Cutting Machine 800mm With Material Conveyor

PVC Paper Roll To Sheet Cutting Machine 800mm With Material Conveyor
