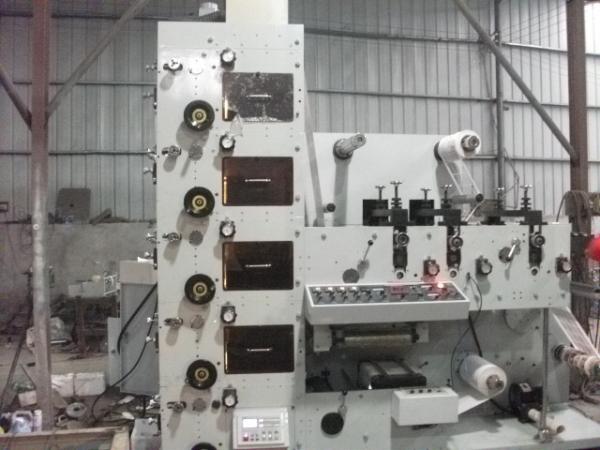

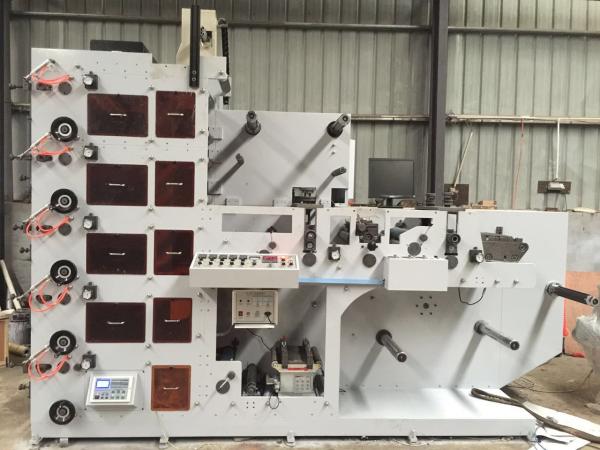

6 Color Flexo Paper Printing Machine , 520mm Letterpress Printing Machine
6 Color Flexo Paper Printing Machine , 520mm Letterpress Printing Machine
6 Color Flexo Paper Printing Machine , 520mm Letterpress Printing Machine
6 Color Flexo Paper Printing Machine , 520mm Letterpress Printing Machine
6 Color Flexo Paper Printing Machine , 520mm Letterpress Printing Machine
6 Color Flexo Paper Printing Machine , 520mm Letterpress Printing Machine
6 Color Flexo Paper Printing Machine , 520mm Letterpress Printing Machine
6 Color Flexo Paper Printing Machine , 520mm Letterpress Printing Machine
6 Color Flexo Paper Printing Machine , 520mm Letterpress Printing Machine
6 Color Flexo Paper Printing Machine , 520mm Letterpress Printing Machine
Specifications
Brand Name :
ruiting
Model Number :
RY-520-6
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets/month
Delivery Time :
in 30 days after receiving the deposit
Packaging Details :
Wooden Case
Type :
label printing machine
Voltage :
380V/Customize
Weight :
3300kg
Printing speed :
60m/min
Warranty :
1 Year
Product name :
6 Color 520mm Letterpress Printing Machine With Cold Foil System
Color :
6 color
Printing material :
PE,coated paper stickers,paper cup
Plate thickness :
1.7mm
Dimensions(l*w*h) :
3500mmX 1500MMX 3000MM
Description

Product Description

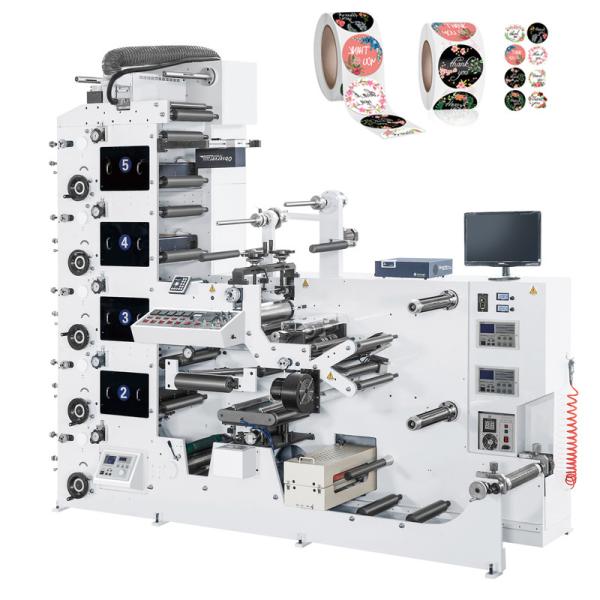

6 Color 520mm Letterpress Printing Machine With Cold Foil System

Main features

1) 1 set ceramic anilox cylinder

2) 1 set plate cylinder

3) Magnetic powder brake controller for unwinding & rewinding

4) Tension controller for unwinding

5) Tension controller for rewinding

6) Printing unit: 360°Plate-adjustment

7) UV dryer

8)Feed paper form roll material, print, coating, dry automatically by infrared ray, laminating and rewinding completed in one time.

Main technical specification:

Model RY-520D
Printing speed 60m/minute
Printing color number 6color
Max width of paper 520mm
Max printing wide 520mm
Max unwinding diameter 600mm
Max rewinding diameter 600mm
Printing length 175-400mm
Precision of overprint ±0.1mm
Overall dimension 3.5(L)×1.5(W)×3.0(H)m
Weight about 3300kg

Optional parts:(can add as your request)

  • Printing unit number, up to 8 colors;
  • turn bar device;
  • Cold foil
  • Video monitor
  • Rotary die cutting set
  • Slitting set
  • Cold laminating

Material details:

Printing material paper,foil, PVC, PET
Printing ink water based ink/UV ink
Printing plate thcikness 1.7mm
