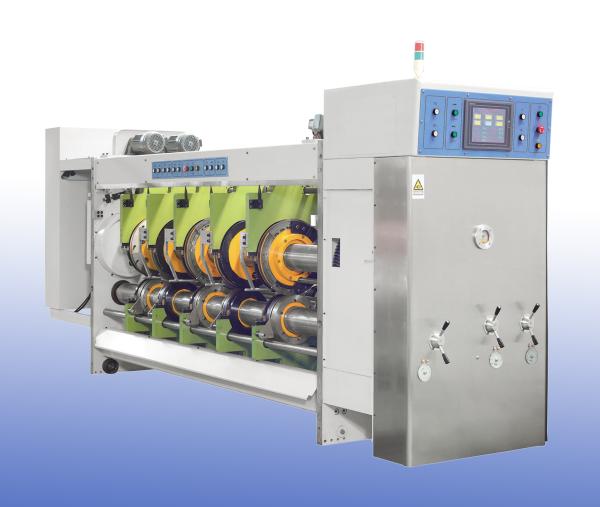

60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine
60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine
60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine
60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine
60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine
60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine
60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine
60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine
60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine
60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine
60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine
60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine
60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine
60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine
Specifications
Brand Name :
StarPack
Model Number :
TP-HX-0920-4SD
Certification :
CE Certificate, Patent Certificate
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 Set
Price :
Negotiation
Supply Ability :
3 Sets per Month
Delivery Time :
90-100 days
Packaging Details :
Steel Base with Carton Box and Film Wrapping
Name :
Corrugated Box Printing Machine, Carton Box Making Machine
Service :
Video Technical Support, Online Support, All Necessary Documents, Quickly Wear-out Parts Supply and etc...
Automatic Grade :
High Speed, Full Automatic
Voltage :
380V 50HZ or Custom
Wall Thickness :
60mm
Key Selling Point :
Stable and Durable, Efficiency, Accurate
Application :
for All kind of Carton Boxes Making
Condition :
Brand New
Colors :
1-5 colors or Custom
High Light :
Automatic High Speed Four Color Flexo Printer Slotter Die-cutter Vibrator & Auto Stacker
Description



Corrugated Box Printing Machine, Carton Box Making Machine, Pizza Box Printing Machine


SUMMARY OF MACHINE
60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine

  1. The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting and so on.
  2. The Machine is designed according to high request and reliable function, humanization operation, it can set, revision, implement, changing and memories in short time, and display data accurately.
  3. All of drive rollers are made of high-quality steel, hard chrome plated the surface with grinded, and balance adjusted.
  4. Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
  5. The main drive roller adopts keyless connect, decrease the connection gap, ensure printing precision.
  6. The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
  7. Phase adjustment is Computerized, with “automatic zero return” and “memories” function PLC control with touch screen.
  8. The machine adopts lead edge feeder, low demand for the cardboard, fast speed.


PARAMTERS OF MACHINE
60mm 0920 Corrugated Box Printing Machine / Pizza Box Printing Machine

Size 0920
Max. Sheet Size (FxA) 890x2000
Skip Feed Size (FxA) 1200x2000
Min. Sheet Size (FxA) 280x700
Max. Printing Area (FxA) 890x1960
Top Speed (Sheet/min) 300
Economic Speed (sheet/min) 150-250
Min. Slotting Space-Reverse Knife (BxCxBxC) 270x100x270x100
Min. Slotting Space-Normal Knife (BxCxBxC) 160x160x160x160
Max. Slot Depth Size 250
Min. Box Height Size 110
Max. Die-Cutting Area 850x1950
Sheet Thickness 1.5-11
Thickness of Printing Plate 7.2
Main Working Power(KW) 4 Colors Slotter Die-cutter 90/69/47
Stacker + Vibrator 3+10
Total Power(KW) 4 Colors Slotter Die-cutter 105/81.5/59.5
Stacker + Vibrator 3+10
Dimension (mm) 4 Colors Slotter Die-cutter 6600x4950x2550
Stacker 6500x3500x3000
Vibrator 3200x3300x1100




OPTIONAL ITERMS AS BELLOW
Ceramic Rollers
Chambered Doctor Blade
Dual-shaft Slotting Unit
Vibrator
Counter Stacker
Inline Folder Gluer
Pre-feeder

For More Details, please feel free to contact with us.

Thank You!!!
