Specifications
Brand Name :
PASSION
Model Number :
JIC FEMALE 26711
Certification :
ISO 9001-2008, CE
Place of Origin :
Zhejiang China
MOQ :
500pcs
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union, Paypal, MoneyGram
Supply Ability :
60,000 pcs per month
Delivery Time :
Within 20 to 30 days after we receive advance payment
Packaging Details :
Cartons and wooden cases
Part Number :
26711
Size of Hose :
3/16” to 2”
Appearance :
Galvanized zinc
Color :
Silver and Golden
Material :
Carbon Steel 45#
Standard :
Eaton
Technic :
Forge
Machine :
CNC
Description

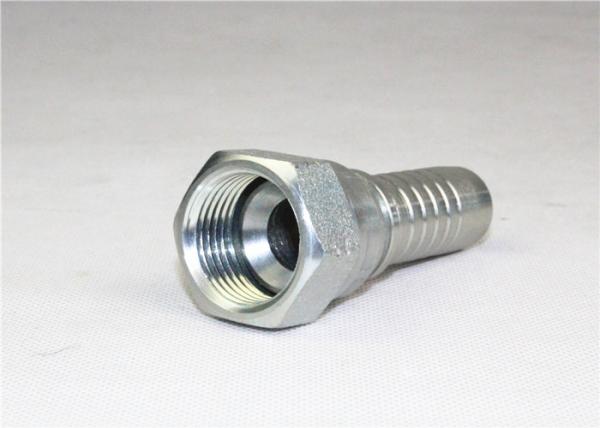

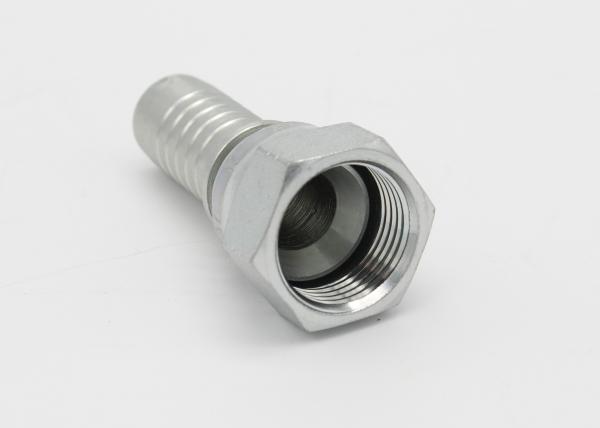

Silver Hydraulic Hose Fitting , JIC Female 74 Degree Cone Seal 26711


Applications:

Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,

oilfield, mine, building, transportation and other industries.

Standard: Yonghua

Technology: Hot forging

Material: carbon steel 45# or Stainless steel 304/316

Surface: zinc plated (trivalent chromium plating). The plating for hydraulic hose fitting is zinc with Cr +3.
It not only can reduce pollution obviously and save pollution treatment cost, but also can improve the quality of fitting.
It passes a 96 h salt spray test in accordance with ASTM B 117.

Specifications:

JIC FEMALE 74 DEGREE CONE SEAT

Catalogue of Straight JIC Female Fitting.pdf

Silver Hydraulic Hose Fitting , JIC Female 74 Degree Cone Seal ( 26711 ) Silver Hydraulic Hose Fitting , JIC Female 74 Degree Cone Seal ( 26711 )

26711 26711-T

Part No. Thread E Hose Bore Dimensions
DN DASH A C S2
26711-04-03 7/16"x20 5 03 14.5 9 15
26711-04-04 7/16"x20 6 04 15 9 15
26711-05-04 1/2"x20 6 04 15.5 9.5 17
26711-05-05 1/2"x20 8 05 15.5 9.5 17
26711-05-06 1/2"x20 10 06 15.5 9.5 17
26711-06-04 9/16"x18 6 04 15.5 10.5 19
26711-06-05 9/16"x18 8 05 15.5 10.5 19
26711-06-06 9/16"x18 10 06 15.5 10.5 19
26711-06-08 9/16"x18 12 08 16 10.5 19
26711-08-06 3/4"x16 10 06 17.5 11 24
26711-08-08 3/4"x16 12 08 18 11 24
26711-08-10 3/4"x16 16 10 19.5 11 24
26711-10-08 7/8"x14 12 08 18.5 13 27
26711-10-10 7/8"x14 16 10 20 13 27
26711-10-12 7/8"x14 20 12 20 13 27
26711-12-08T 1.1/16"x12 12 08 19 15 32
26711-12-10 1.1/16"x12 16 10 21.5 15 32
26711-12-12 1.1/16"x12 20 12 21.5 15 32
26711-12-16 1.1/16"x12 25 16 23 15 32
26711-14-12 1.3/16"x12 20 12 21.5 15 36
26711-16-12T 1.5/16"x12 20 12 18.5 16 41
26711-16-16 1.5/16"x12 25 16 23 16 41
26711-16-20 1.5/16"x12 32 20 24 16 41
26711-20-16T 1.5/8"x12 25 16 23 17 50
26711-20-20W 1.5/8"x12 32 20 26 17 50
26711-24-20W 1.7/8"x12 32 20 26.5 20 55
26711-24-24W 1.7/8"x12 40 24 26.5 20 55
26711-32-20T 2.1/2"x12 32 20 27 23.5 75
26711-32-32T 2.1/2"x12 50 32 27 23.5 75

Note: 1 for use with braided hoses, textile hoses and thermoplastic hoses, if use with spiral hoses, hose fitting series number is 26712-**-**.

Silver Hydraulic Hose Fitting , JIC Female 74 Degree Cone Seal ( 26711 )

Other Hydraulic Hose Ferrule Fitting Products:
Silver Hydraulic Hose Fitting , JIC Female 74 Degree Cone Seal ( 26711 )
Silver Hydraulic Hose Fitting , JIC Female 74 Degree Cone Seal ( 26711 )

Production Flow:

Material of ferrule: carton steel 20#

Material of fitting: carton steel 45#

All of our machines are CNC machines

Silver Hydraulic Hose Fitting , JIC Female 74 Degree Cone Seal ( 26711 )

Packgaing and Shipping:

Carton: 5 layers corrugated carton 24cm X 24cm X 16cm

Wooden Case: 110cm X 80cm X 75cm

Usually 42 corragetd cartons are packed in a wooden case.

Silver Hydraulic Hose Fitting , JIC Female 74 Degree Cone Seal ( 26711 )
