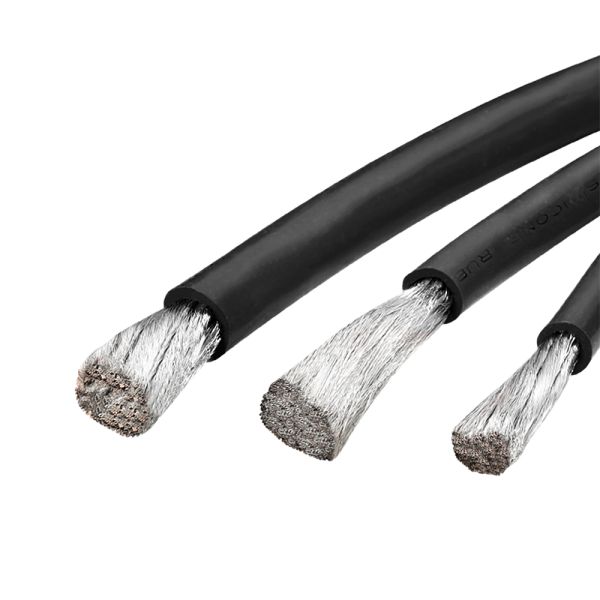

EV 125C 1500V XLPE Shield Wire with Tinned Copper Conductor for Solar Battery Systems (2.5MM2 to 240MM2)
EV 125C 1500V XLPE Shield Wire with Tinned Copper Conductor for Solar Battery Systems (2.5MM2 to 240MM2)
EV 125C 1500V XLPE Shield Wire with Tinned Copper Conductor for Solar Battery Systems (2.5MM2 to 240MM2)
EV 125C 1500V XLPE Shield Wire with Tinned Copper Conductor for Solar Battery Systems (2.5MM2 to 240MM2)
EV 125C 1500V XLPE Shield Wire with Tinned Copper Conductor for Solar Battery Systems (2.5MM2 to 240MM2)
EV 125C 1500V XLPE Shield Wire with Tinned Copper Conductor for Solar Battery Systems (2.5MM2 to 240MM2)
EV 125C 1500V XLPE Shield Wire with Tinned Copper Conductor for Solar Battery Systems (2.5MM2 to 240MM2)
EV 125C 1500V XLPE Shield Wire with Tinned Copper Conductor for Solar Battery Systems (2.5MM2 to 240MM2)
EV 125C 1500V XLPE Shield Wire with Tinned Copper Conductor for Solar Battery Systems (2.5MM2 to 240MM2)
EV 125C 1500V XLPE Shield Wire with Tinned Copper Conductor for Solar Battery Systems (2.5MM2 to 240MM2)
EV 125C 1500V XLPE Shield Wire with Tinned Copper Conductor for Solar Battery Systems (2.5MM2 to 240MM2)
EV 125C 1500V XLPE Shield Wire with Tinned Copper Conductor for Solar Battery Systems (2.5MM2 to 240MM2)
Specifications
Model Number :
MS010
Brand Name :
Mysun
Place of Origin :
Guangdong, China
MOQ :
2000
Price :
$0.98-3.28
Conductor Material :
Tinned Copper
Diameter Options :
10 mm², 16 mm², 25 mm², 35 mm², 50 mm², 70 mm², 95 mm², 150 mm², 240 mm², 300 mm², 400 mm², 2.5mm², 4mm², 6mm²
Insulation Material :
XLPE
Rated Voltage :
1500V
Conductor Type :
Stranded
Operating Temperature :
200℃
Max Resistance :
6.00 Ω/KM (2.5mm²), 4.70 Ω/KM (4mm²), 3.00 Ω/KM (6mm²), 1.80 Ω/KM (10mm²), 1.15 Ω/KM (16mm²), 0.80 Ω/KM (25mm²), 0.60 Ω/KM (35mm²), 0.40 Ω/KM (50mm²), 0.30 Ω/KM (70mm²), 0.20 Ω/KM (95mm²), 0.17 Ω/KM (120mm²), 0.14 Ω/KM (150mm²), 0.11 Ω/KM (185mm²), 0.09 Ω/
Conductor Construction :
198/0.127 (2.5mm²), 316/0.127 (4mm²), 474/0.127 (6mm²), 790/0.127 (10mm²), 510/0.2 (16mm²), 797/0.2 (25mm²), 1115/0.2 (35mm²), 1593/0.2 (50mm²), 2230/0.2 (70mm²), 3026/0.2 (95mm²), 3823/0.2 (120mm²), 4778/0.2 (150mm²), 5893/0.2 (185mm²), 7644/0.2 (240mm²)
Nominal Insulation Thickness :
≥0.50mm (2.5mm²), ≥0.60mm (4mm², 6mm²), ≥0.65mm (10mm²), ≥0.70mm (16mm²), ≥0.80mm (25mm²), ≥0.90mm (35mm², 50mm²), ≥1.00mm (70mm², 95mm²), ≥1.30mm (120mm², 150mm², 185mm², 240mm²)
Shielding Density :
≥80%
Jacket Thickness :
≥0.60mm (2.5mm², 4mm², 6mm²), ≥0.70mm (10mm²), ≥0.70mm (16mm²), ≥0.90mm (25mm²), ≥0.90mm (35mm²), ≥1.00mm (50mm², 70mm², 95mm²), ≥1.30mm (120mm², 150mm², 185mm², 240mm²)
Overall Diameter :
3.60mm (2.5mm²), 4.50mm (4mm²), 5.20mm (6mm²), 6.40mm (10mm²), 8.00mm (16mm²), 10.00mm (25mm²), 11.50mm (35mm²), 13.00mm (50mm²), 15.00mm (70mm²), 17.00mm (95mm²), 20.00mm (120mm²), 22.00mm (150mm²), 24.00mm (185mm²), 28.00mm (240mm²)
Conductor Diameter :
2.1mm (2.5mm²), 2.9mm (4mm²), 3.3mm (6mm²), 4.6mm (10mm²), 6.0mm (16mm²), 7.5mm (25mm²), 8.8mm (35mm²), 10.3mm (50mm²), 12.0mm (70mm²), 14.0mm (95mm²), 16.0mm (120mm²), 18.0mm (150mm²), 19.0mm (185mm²), 24.0mm (240mm²)
Jacket Diameter :
7.30mm (2.5mm²), 7.00mm (4mm²), 7.60mm (6mm²), 9.50mm (10mm²), 11.20mm (16mm²), 13.50mm (25mm²), 15.00mm (35mm²), 17.20mm (50mm²), 19.20mm (70mm²), 21.2mm (95mm²), 25.2mm (120mm²), 27.2mm (150mm²), 28.2mm (185mm²), 33.2mm (240mm²)
Cable Type :
XLPE Shield Wire
Description
EV 125C 1500V 2.5MM² - 240MM² XLPE Shield Wire for Solar Battery System
Premium XLPE Shield Cable Supplier
Supplies Fortune 500 companies - Top XLPE Shield Cable Supplier in China
EV 125C 1500V XLPE Shield Wire with Tinned Copper Conductor for Solar Battery Systems (2.5MM2 to 240MM2) EV 125C 1500V XLPE Shield Wire with Tinned Copper Conductor for Solar Battery Systems (2.5MM2 to 240MM2)
Technical Specifications
Conductor Size (mm²) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Tinned Copper Mesh Weave Density Nominal Thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM)
2.5198/0.1272.1≥0.503.60≥80%≥0.606.007.30
4316/0.1272.9≥0.604.50≥80%≥0.607.004.70
6474/0.1273.3≥0.605.20≥80%≥0.607.603.00
10.0790/0.1274.6≥0.656.40≥80%≥0.709.501.80
16.0510/0.26.0≥0.708.00≥80%≥0.7011.201.15
25.0797/0.27.5≥0.8010.00≥80%≥0.9013.500.80
35.01115/0.28.8≥0.9011.50≥80%≥0.9015.000.60
50.01593/0.210.3≥0.9013.00≥80%≥1.0017.200.40
70.02230/0.212.0≥1.0015.00≥80%≥1.0019.200.30
95.03026/0.214.0≥1.0017.00≥80%≥1.0021.20.20
120.03823/0.216.0≥1.3020.00≥80%≥1.3025.20.17
150.04778/0.218.0≥1.3022.00≥80%≥1.3027.20.14
185.05893/0.219.0≥1.3024.00≥80%≥1.3028.20.11
240.07644/0.224.0≥1.3028.00≥80%≥1.3033.20.09
