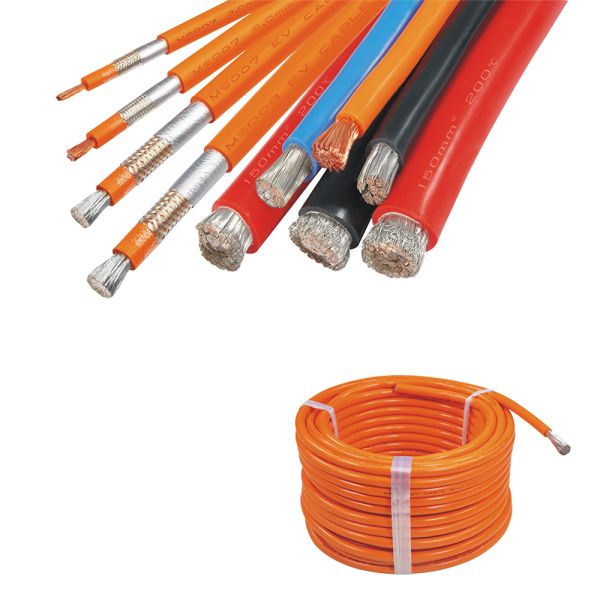

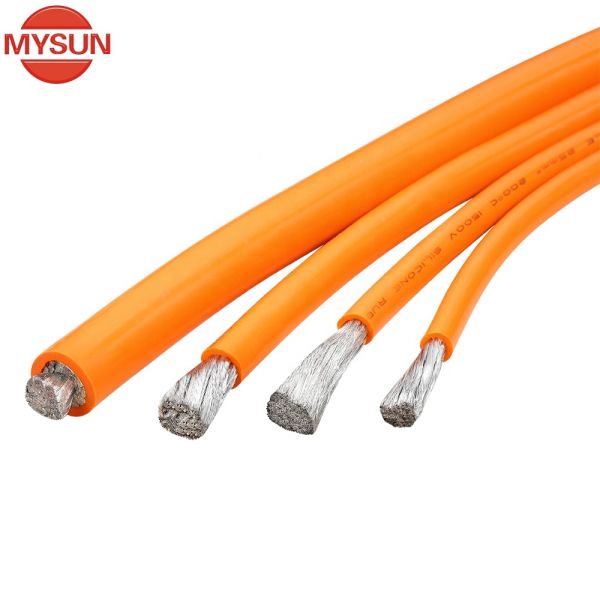

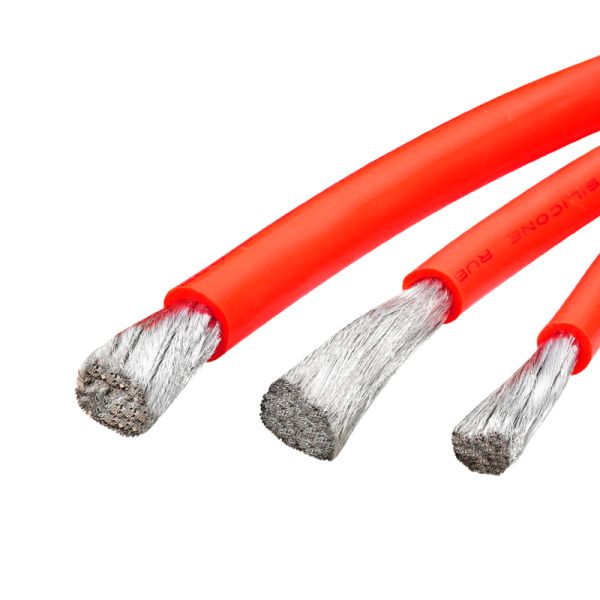

EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
Specifications
Model Number :
MS009
Brand Name :
Mysun
Place of Origin :
Guangdong, China
MOQ :
2000
Price :
$0.68-2.18
Conductor Material :
Tinned Copper
Diameter :
10 mm², 16 mm², 25 mm², 35 mm², 50 mm², 70 mm², 95 mm², 150 mm², 240 mm², 300 mm², 400 mm², 0.2mm², 0.30mm², 0.5mm², 1.0mm², 1.5mm², 2mm², 2.5mm², 3mm², 4mm², 6mm²
Insulation Material :
XLPE
Rated Voltage :
1500V
Conductor Type :
Stranded
Shape :
Round
Temperature :
200C, 200℃
Insulation :
Silicone Rubber
Max Resistance :
1.80 Ω/KM (10.0 mm²), 1.15 Ω/KM (16.0 mm²), 0.80 Ω/KM (25.0 mm²), 0.60 Ω/KM (35.0 mm²), 0.40 Ω/KM (50.0 mm²), 0.30 Ω/KM (70.0 mm²), 0.20 Ω/KM (95.0 mm²), 0.17 Ω/KM (120.0 mm²), 0.14 Ω/KM (150.0 mm²), 0.11 Ω/KM (185.0 mm²), 0.09 Ω/KM (240.0 mm²)
Conductor Construction :
790/0.127 (10.0 mm²), 510/0.2 (16.0 mm²), 797/0.2 (25.0 mm²), 1115/0.2 (35.0 mm²), 1593/0.2 (50.0 mm²), 2230/0.2 (70.0 mm²), 3026/0.2 (95.0 mm²), 3823/0.2 (120.0 mm²), 4778/0.2 (150.0 mm²), 5893/0.2 (185.0 mm²), 7644/0.2 (240.0 mm²)
Nominal Thickness :
≥0.65 mm (10.0 mm²), ≥0.70 mm (16.0 mm²), ≥0.80 mm (25.0 mm²), ≥0.90 mm (35.0 mm²), ≥0.90 mm (50.0 mm²), ≥1.00 mm (70.0 mm²), ≥1.00 mm (95.0 mm²), ≥1.30 mm (120.0 mm²), ≥1.30 mm (150.0 mm²), ≥1.30 mm (185.0 mm²), ≥1.30 mm (240.0 mm²)
Insulation Diameter :
6.40 mm (10.0 mm²), 8.00 mm (16.0 mm²), 10.00 mm (25.0 mm²), 11.50 mm (35.0 mm²), 13.00 mm (50.0 mm²), 15.00 mm (70.0 mm²), 17.00 mm (95.0 mm²), 20.00 mm (120.0 mm²), 22.00 mm (150.0 mm²), 24.00 mm (185.0 mm²), 28.00 mm (240.0 mm²)
Conductor Diameter :
4.6 mm (10.0 mm²), 6.0 mm (16.0 mm²), 7.5 mm (25.0 mm²), 8.8 mm (35.0 mm²), 10.3 mm (50.0 mm²), 12.0 mm (70.0 mm²), 14.0 mm (95.0 mm²), 16.0 mm (120.0 mm²), 18.0 mm (150.0 mm²), 19.0 mm (185.0 mm²), 24.0 mm (240.0 mm²)
Voltage Rating :
1500V
Wire Type :
Insulated, Battery Energy Storage Cable
Description
EV 125C 1500V XLPE Wire for New Energy Equipment
Supplies Fortune 500 Companies - Top XLPE Cable Supplier in China
EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
Technical Specifications
Conductor Size (mm²) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Conductor Resistance (Ω/KM)
10.0790/0.1274.6≥0.656.401.80
16.0510/0.26.0≥0.708.001.15
25.0797/0.27.5≥0.8010.000.80
35.01115/0.28.8≥0.9011.500.60
50.01593/0.210.3≥0.9013.000.40
70.02230/0.212.0≥1.0015.000.30
95.03026/0.214.0≥1.0017.000.20
120.03823/0.216.0≥1.3020.000.17
150.04778/0.218.0≥1.3022.000.14
185.05893/0.219.0≥1.3024.000.11
240.07644/0.224.0≥1.3028.000.09
Company Profile
EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications EV 125C 1500V XLPE Wire with Tinned Copper Conductor for Battery and New Energy Applications
Frequently Asked Questions
How can I contact your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, WhatsApp, or Mobile.
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08:00). We have public holidays during May 1-3, October 1-7, and Chinese New Year. Please email us during holidays with any questions.
Do you provide free samples?
Yes, we can provide a free sample for testing. Buyers should bear all shipping costs.
What are your payment terms?
T/T, L/C, D/A, D/P, Western Union, MoneyGram, PayPal.
What is the lead time?
Usually sample lead time is 7 days after payment confirmation.
