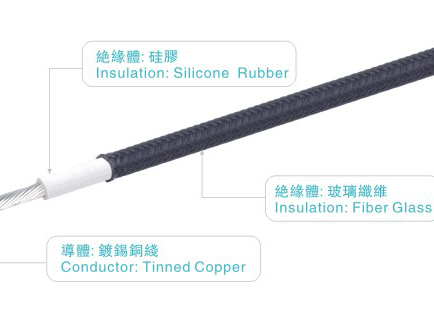

UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
Specifications
Model Number :
UL3068
Brand Name :
MYSUN
Place of Origin :
Guangdong, China
Certification :
ROHS/CCC/VDE/CCC/UL
MOQ :
3050
Price :
$0.08-0.16
Conductor Material :
Copper
Diameter :
16AWG, 18AWG, 20AWG, 22AWG, 24AWG, 26AWG, 28AWG, 30AWG
Insulation Material :
Rubber
Rated Voltage :
300V
Conductor Type :
Stranded
Temperature Rating :
150C
Insulation Type :
Silicone Rubber
Conductor :
Tinned Copper
Max Conductor Resistance :
14.6-381 Ω/KM
Unit Length :
305-610 meters
Nominal Thickness :
0.60 mm
Insulation Diameter :
1.50-2.69 mm
Conductor Diameter :
0.30-1.49 mm
Construction :
7/0.10-7/0.49 mm
Package :
305 meter/roll
Description
Seeking Country Agents for a Win-Win Partnership
Products Description
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
Specification
UL3068
Conductor
Insulation
Max.Cond
Resistance
(Ω/KM)
Unit length
(M)(Ft)
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)


30
7/0.10
0.30
0.60
1.50
381
610/2000
28
7/0.127
0.38
0.60
1.58
239
610/2000
26
7/0.16
0.48
0.60
1.68
150
610/2000
24
7/0.20
0.61
0.60
1.81
94.2
610/2000
22
7/0.254
0.77
0.60
1.97
59.4
305/1000
20
7/0.31
0.94
0.60
2.14
36.7
305/1000
18
7/0.39
1.19
0.60
2.39
23.2
305/1000
16
7/0.49
1.49
0.60
2.69
14.6
305/1000
Click here to contact us for a competitive quote
Company profile
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
Our Products
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
Application
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
Our Overseas Clients
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
Exhibition
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
Certifications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
FAQ
1. Who Are We? We Are A Professional Manufacturer Of High-temperature Wires And Cables With 26 Years Of Electric Wire Experience. Our Headquarter Is Located In Shenzhen, Guangdong, China, And Our Two Production Bases Are Located In Dongguan, Guangdong, China And Jingzhou, Hubei, China. 2. What Can We Provide? We Can Provide High-temperature Wires And Cables, Silicone Tubing – Including Silicone Rubber Wire, XLPE, FEP/PFA/ETFE/PTFE Wire, New Energy Cable, Wiring Harnesses. 3. Why Choose Us? A.Free Sample. B.Competitive Price. C.High Quality Standard. D.Customized Service. 4. What Certifications Do We Have？ We Have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification. 5.What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU: Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
