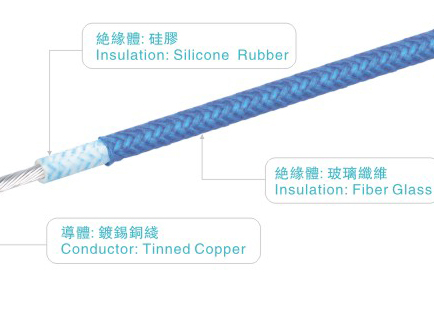

UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
Specifications
Model Number :
UL3069
Brand Name :
MYSUN
Place of Origin :
Guangdong, China
Certification :
ROHS/CCC/VDE/CCC/UL
MOQ :
3050
Price :
$0.12-0.50
Conductor Material :
Copper
Diameter Options :
20AWG, 22AWG, 24AWG, 26AWG
Insulation Material :
Rubber
Rated Voltage :
600V
Conductor Type :
Stranded
Max Temperature :
150C
Wire Type :
Insulated
Conductor Composition :
Tinned Copper
Insulation Type :
Silicone Rubber
Rated Temperature :
150 Degree
Package Length :
305 meter/roll
Max Conductor Resistance :
36.7-150 Ω/KM
Nominal Thickness :
0.93 mm
Insulation Diameter :
2.34-2.80 mm
Conductor Diameter :
0.48-0.94 mm
Description
Seeking Country Agents for a Win-Win Partnership
Products Description
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
Specification
UL3069
Conductor
Insulation
Max.Cond
Resistance
(Ω/KM)
Unit length
(M)(Ft)
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)


26
7/0.16
0.48
0.93
2.34
150
305/1000
24
7/0.20
0.61
0.93
2.47
94.2
305/1000
22
7/0.254
0.77
0.93
2.63
59.4
305/1000
20
7/0.31
0.94
0.93
2.80
36.7
305/1000
Click here to contact us for a competitive quote
Company profile
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
Our Products
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
Application
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
Our Overseas Clients
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
Exhibition
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
Certifications
UL3069 Certified 150C Heat Resistance 600V Rated Voltage Silicone Fiberglass Braided Wire in 305m/roll
FAQ
1. Who Are We? We Are A Professional Manufacturer Of High-temperature Wires And Cables With 26 Years Of Electric Wire Experience. Our Headquarter Is Located In Shenzhen, Guangdong, China, And Our Two Production Bases Are Located In Dongguan, Guangdong, China And Jingzhou, Hubei, China. 2. What Can We Provide? We Can Provide High-temperature Wires And Cables, Silicone Tubing – Including Silicone Rubber Wire, XLPE, FEP/PFA/ETFE/PTFE Wire, New Energy Cable, Wiring Harnesses. 3. Why Choose Us? A.Free Sample. B.Competitive Price. C.High Quality Standard. D.Customized Service. 4. What Certifications Do We Have？ We Have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification. 5.What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU: Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
