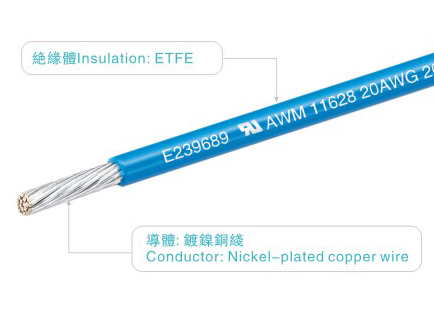

UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
Specifications
Model Number :
UL10468
Brand Name :
MYSUN
Place of Origin :
Guangdong, China
MOQ :
3050
Conductor Material :
Tinned Copper
Diameter :
12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG
Insulation Material :
Rubber
Rated Voltage :
300 V
Conductor Type :
Solid
Shape :
Round
Temperature :
250°C, 150 or 200℃
Voltage :
600V
Insulation :
ETFE
Conductor :
Tinned copper/Silver-plated copper
Unit Length :
305/1000
Max Conductor Resistance :
5.64 Ω/KM (12AWG), 8.96 Ω/KM (14AWG), 14.6 Ω/KM (16AWG)
Nominal Thickness :
0.350mm (12AWG), 0.300mm (14AWG), 0.330mm (16AWG)
Insulation Diameter :
3.05mm (12AWG), 2.55mm (14AWG), 2.16mm (16AWG)
Construction :
19/0.475 (12AWG), 19/0.37 (14AWG), 19/0.30 (16AWG)
Description
UL11628 ETFE Wire 12AWG-26AWG 600V 200°C High Temperature Cable
Premium ETFE Wire Supplier for Fortune 500 Companies
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
Technical Specifications
Size (AWG) Conductor Construction Conductor Diameter (mm) Insulation Thickness (mm) Overall Diameter (mm) Max Conductor Resistance (Ω/KM) Unit Length (M/Ft)
30 7/0.10 0.30 0.270 0.84 381 610/2000
28 7/0.127 0.36 0.270 0.90 239 610/2000
26 19/0.10 0.48 0.270 1.02 150 610/2000
24 19/0.12 0.60 0.270 1.14 94.2 610/2000
22 19/0.15 0.75 0.300 1.35 59.4 305/1000
20 19/0.19 0.95 0.330 1.61 36.7 305/1000
18 19/0.235 1.17 0.330 1.83 23.2 305/1000
16 19/0.30 1.50 0.330 2.16 14.6 305/1000
14 19/0.37 1.85 0.300 2.55 8.96 305/1000
12 19/0.475 2.35 0.350 3.05 5.64 305/1000
Click to Contact Us for the Best Quote
Company Profile
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
Our Product Range
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
Our Global Clients
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
Industry Exhibitions
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
Certifications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
Frequently Asked Questions
  • Who are we? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What we provide: High-temperature wires and cables, silicone tubing, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why choose us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Multiple delivery terms (FOB, CIF, EXW, etc.) and payment options (T/T, L/C, PayPal, etc.).
