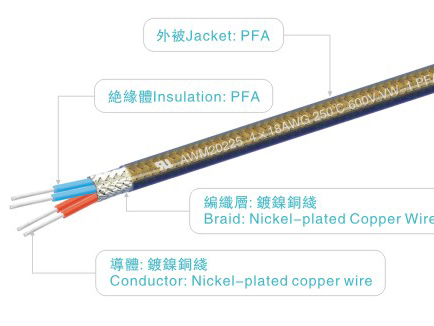

UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
Specifications
Model Number :
UL20225
Brand Name :
MYSUN
Place of Origin :
Guangdong, China
MOQ :
3050
Conductor Material :
Tinned Copper
Diameter Options :
2X22, 2X18, 2X20, 3X18, 3X20, 3X22, 4X18, 4X20, 4X22, 5X18, 5X20, 5X22, 6X18, 6X20, 6X22, 7X18, 7X20, 7X22
Insulation Material :
PFA
Rated Voltage :
600V
Conductor Type :
Solid
Shape :
Round
Temperature Rating :
250°C
Type :
Insulated
Braid Material :
Nickel Plated Copper
Nominal Thickness :
0.30mm
Braid Thickness :
0.50mm, 0.60mm, 0.70mm, 0.80mm
Outer Garment Thickness :
0.51mm
Construction :
19/0.15, 19/0.19, 19/0.235
Braid Construction :
16X6X012, 16X7X012, 24X6X0.12, 24X8X0.12, 24X10X0.12
Length Options :
305m/1000ft
Description
UL20225 PFA Multi Core Wire 600V 250°C Nickel Plated Copper Braid 2X18 - 7X22 High Temperature PFA Wire for UAV Robot
Premium PFA Wire Supplier for Industrial Applications

Supplies Fortune 500 Companies - Top PFA Wire Supplier In China.

UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
Technical Specifications
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Braid Outer Garment Thickness (mm) Diameter Range (mm)
2X2219/0.150.750.3016X6X0120.504.50-5.50
2X2019/0.190.900.3016X6X0120.505.00-6.00
2X1819/0.2351.170.3016X6X0120.505.30-6.30
3X2219/0.150.750.3016X6X0120.504.50-5.50
3X2019/0.190.900.3016X6X0120.505.00-6.00
3X1819/0.2351.170.3016X7X0120.505.30-6.30
4X2219/0.150.750.3016X7X0120.604.50-6.00
4X2019/0.190.900.3016X7X0120.605.00-6.50
4X1819/0.2351.170.3024X6X0.120.605.30-7.00
5X2219/0.150.750.3016X7X0120.605.00-6.50
5X2019/0.190.900.3016X7X0120.605.50-7.00
5X1819/0.2351.170.3024X6X0.120.606.00-7.50
6X2219/0.150.750.3016X8X0120.605.5-7.00
6X2019/0.190.900.3016X8X0120.606.00-7.50
6X1819/0.2351.170.3024X8X0.120.706.50-8.00
7X2219/0.150.750.3016X8X0120.706.00-7.50
7X2019/0.190.900.3016X8X0120.706.50-8.00
7X1819/0.2351.170.3024X10X0.120.807.00-8.50
Company Profile
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
Our Product Range
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
Applications
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
Global Clients
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
Industry Exhibitions
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
Certifications
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience. Headquartered in Shenzhen with production bases in Dongguan and Jingzhou, China.
  • What We Provide: High-temperature wires and cables, silicone tubing, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Payment options: T/T, L/C, PayPal, Western Union, Cash.
