Silicone Rubber UL3068 Fiberglass Braided Wires Insulation 30AWG
Silicone Rubber UL3068 Fiberglass Braided Wires Insulation 30AWG
Specifications
Brand Name :
MYSUN
Model Number :
UL3068
Certification :
UL
Place of Origin :
Guangdong ,China
MOQ :
3050meters
Price :
0.05-1USD/M
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000 meters per day
Delivery Time :
5-10working days
Packaging Details :
carton32mm*32mm*32mm
product name :
UL3068
insulation :
silicone rubber fiberglass braided
conductor :
tinned copper
rated voltage :
300V
rated temperature :
150°C
standard :
UL758
size :
16-30AWG
OD :
1.50-2.69mm
package :
305m/roll,610m/roll
usage :
home appliance lighting heater UAV
Description

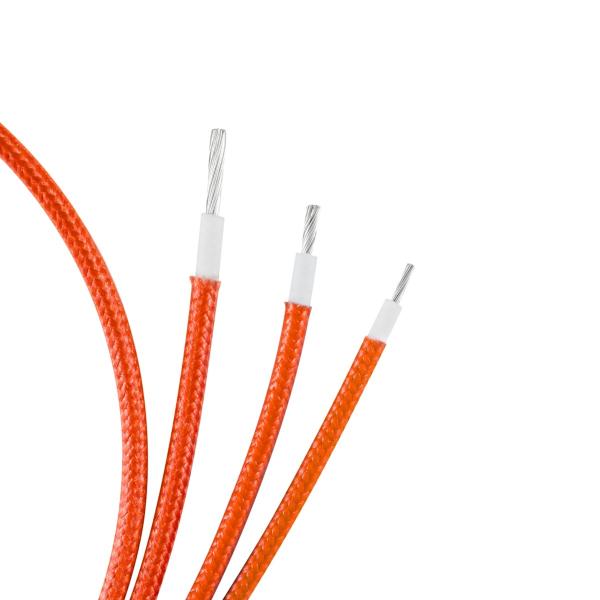

UL3068 silicone rubber fiber glass braided wire

  • Flexibility: silicone rubber insulation with fiberglass braided
  • Maximum conductor resistance: 381 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: 150°C
  • Rated voltage: 300V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 16AWG, 18 AWG, 20 AWG, 22 AWG,24AWg,26AWG,28AWG,30AWG

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
30 7/0.10 0.30 0.60 1.50 361 610/2000
28 7/0.127 0.38 1.58 227
26 7/0.16 0.48 1.68 143 305/1000
24 7/0.20 0.61 1.81 89.3
22 7/0.254 0.77 1.97 56.4
20 7/0.31 0.94 2.14 35.2
18 7/0.39 1.19 2.39 22.2
16 7/0.49 1.49 2.69 14

Silicone Rubber UL3068 Fiberglass Braided Wires Insulation 30AWG

Silicone Rubber UL3068 Fiberglass Braided Wires Insulation 30AWG

Silicone Rubber UL3068 Fiberglass Braided Wires Insulation 30AWG

Service:
Shipment:
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
FQA

1. Are you a manufacturer?

A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;

and have 20 years leading experience in manufacturing wires.

2. What are your main products?

A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.

3.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
