250°C High Voltage High Temperature Wire , Fiberglass Braided Wire UL3254
250°C High Voltage High Temperature Wire , Fiberglass Braided Wire UL3254
250°C High Voltage High Temperature Wire , Fiberglass Braided Wire UL3254
250°C High Voltage High Temperature Wire , Fiberglass Braided Wire UL3254
250°C High Voltage High Temperature Wire , Fiberglass Braided Wire UL3254
250°C High Voltage High Temperature Wire , Fiberglass Braided Wire UL3254
250°C High Voltage High Temperature Wire , Fiberglass Braided Wire UL3254
250°C High Voltage High Temperature Wire , Fiberglass Braided Wire UL3254
Specifications
Brand Name :
MYSUN
Model Number :
UL3254
Certification :
UL
Place of Origin :
CHINA
MOQ :
5000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
one million meters each day
Delivery Time :
7-10 working days
Packaging Details :
carton, pallet
Insulation :
silicone rubber
Conductor :
nickel plated or silver plated copper
Size :
30-12AWG
Color :
black, red, white, yellow, blue, green, grey, yellow-green, pink
Rated voltage :
10000V
Working temp :
250V
Use in :
coffee maker, oven and other home appliance
SPQ :
305m/roll or 610m/roll
Package :
reel, carton, pallet
Jacket :
fiberglass braided
Description

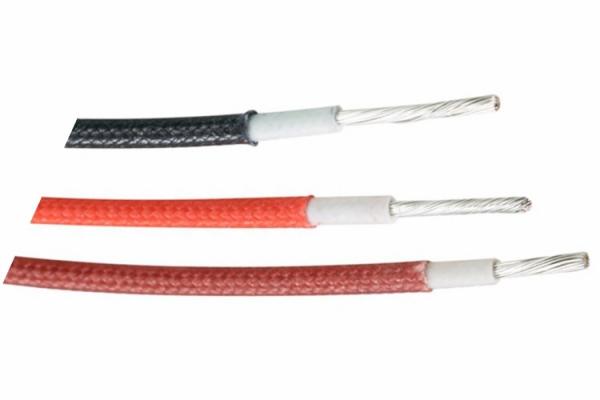

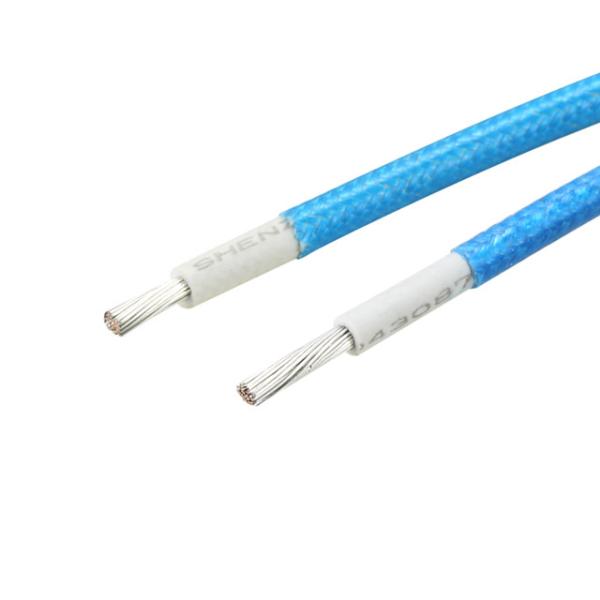

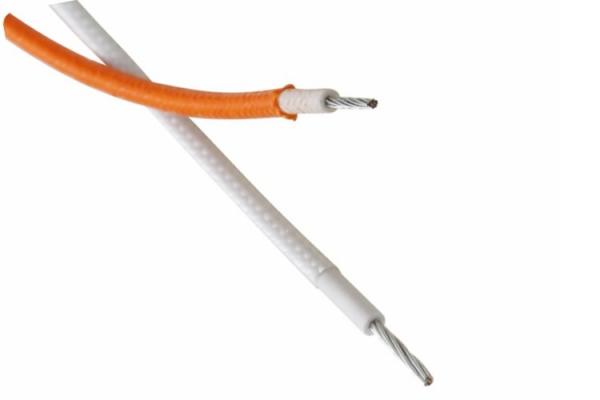

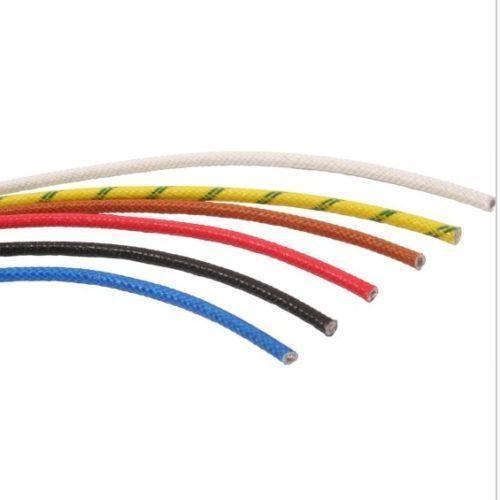

250°C High Temperature Wire UL3254 fiberglass insulated copper wire

Specification:

Rated voltage: 10000V

Rated temperature: 250C

UL standard: UL758

Applications: this wire widely sued for home appliance, heaters and etc.

Cable dimensions:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
30 7/0.10 0.3 0.93 2.16 361 610/2000
28 7/0.12 0.36 2.22 227
26 7/0.16 0.48 2.34 143
24 7/0.20 0.6 2.46 89.3
22 7/0.254 0.76 2.62 56.4 305/1000
20 7/0.31 0.93 2.79 35.2
18 7/0.39 1.17 3.03 22.2
16 7/0.49 1.47 3.33 14
14 41/0.254 1.89 3.75 8.78
12 19/0.47 2.36 4.22 5.53

Cable details:

250°C High Voltage High Temperature Wire , Fiberglass Braided Wire UL3254

250°C High Voltage High Temperature Wire , Fiberglass Braided Wire UL3254

250°C High Voltage High Temperature Wire , Fiberglass Braided Wire UL3254

250°C High Voltage High Temperature Wire , Fiberglass Braided Wire UL3254

250°C High Voltage High Temperature Wire , Fiberglass Braided Wire UL3254

250°C High Voltage High Temperature Wire , Fiberglass Braided Wire UL3254

250°C High Voltage High Temperature Wire , Fiberglass Braided Wire UL3254

Price term:
EXW, FOB, CIF

Payment terms:
LC, TT, Western Union and PayPal

Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
