PF >0.95 Outdoor High Bay Light IP65 Led Highbay Light / Lamp Energy Saving 25D
PF >0.95 Outdoor High Bay Light IP65 Led Highbay Light / Lamp Energy Saving 25D
PF >0.95 Outdoor High Bay Light IP65 Led Highbay Light / Lamp Energy Saving 25D
PF >0.95 Outdoor High Bay Light IP65 Led Highbay Light / Lamp Energy Saving 25D
PF >0.95 Outdoor High Bay Light IP65 Led Highbay Light / Lamp Energy Saving 25D
PF >0.95 Outdoor High Bay Light IP65 Led Highbay Light / Lamp Energy Saving 25D
Specifications
Brand Name :
LEYOND
Model Number :
LY-HB65100W
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1piece
Price :
0-100USD/Piece
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000PCS
Delivery Time :
5-15 working days
Packaging Details :
1pcs/ctn.
Power :
100W
Chip :
Bridgelux 3030
Driver :
Meanwell HLGseries
Warranty :
5 Years
Color :
Black
CCT :
2700-6500K
IP Class :
IP65
Application :
Warehouse, Parking lots etc.
Description

PF >0.95 Outdoor High Bay Light IP65 Led Highbay Light / Lamp Energy Saving 25D

1. Specifications:

Parameter Par NO LY-HB65100PW LY-HB65100WW LY-HB65100NW
Inptut voltage AC100V～240V 50/60HZ
Sysem consumption(W) ＜103 ＜103 ＜103
Luminous efficiency(lm/w) 88 LM/W 80 LM/W 84 LM/W
Luminous(lm) 8900 8200 68500
LED quantity(pcs) 3030 / 100PCS 3030 / 100PCS 3030 / 100PCS
Beam Angle 25°/45° 25°/45° 25°/45°
CRI ＞80 ＞80 ＞80
Color Temperature(CREE) 5000-5500k 2700-3200k 4000-4500k
Meterial Aluminum+Glass
Driver HLG-120H
Lifespan(hrs) ＞50000
Size of pack(mm) 405*405*380 405*405*380 405*405*380
HighBay Size(mm) Φ357x362 Φ357x362 Φ357x362
Net weight(KG) 4.6 4.6 4.6
Gross weight(KG) 5.8 5.8 5.8

2. Features:

• 11 flexible positions makes project angle can be adjusted within 180 °.

• Professional heat dissipation structure design. Modular heatsink with perfect structure and inside airflow channels maxim the 3D heat dissipation.

• Rivet the heatsink body closely, minimize the heat resistance, greatly improve the heat dissipation effect, and it is much lighter compared with similar products.

• Waterproof design, eliminating mist, avoiding condensation,improving quality,extending the life span.

• Flake designed high-purity aluminum reflector angle scales , to adapt to different situations.There are 25°,45°,beam angle options for the flake designed reflector.Reflective rate could reach up to 95%.

• Over Current, Over Voltage, Over Heat, Thunder Protection

• Choice of Correlated Color Temperatures

• Long lifespan for LED 50,000 hrs

• 100% Recycle, No Pollution, and UV, IR

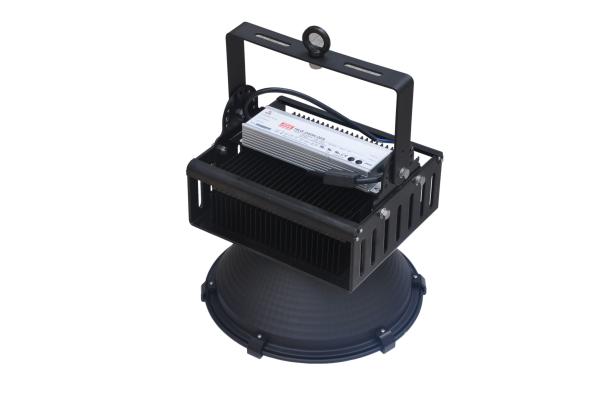

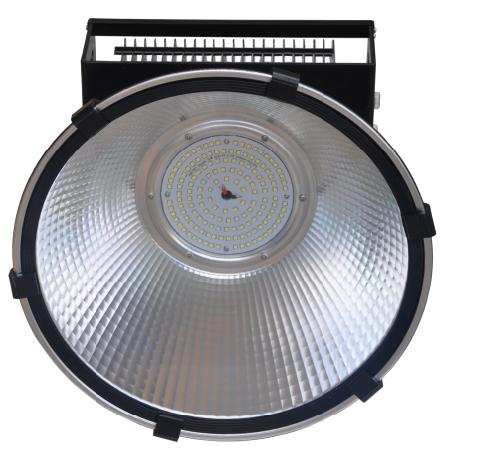

3. Pictures:

PF >0.95 Outdoor High Bay Light IP65 Led Highbay Light / Lamp Energy Saving 25D

PF >0.95 Outdoor High Bay Light IP65 Led Highbay Light / Lamp Energy Saving 25D

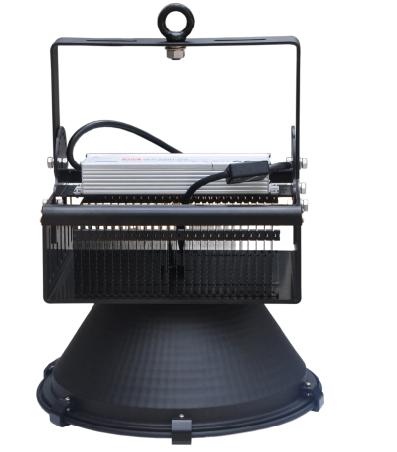

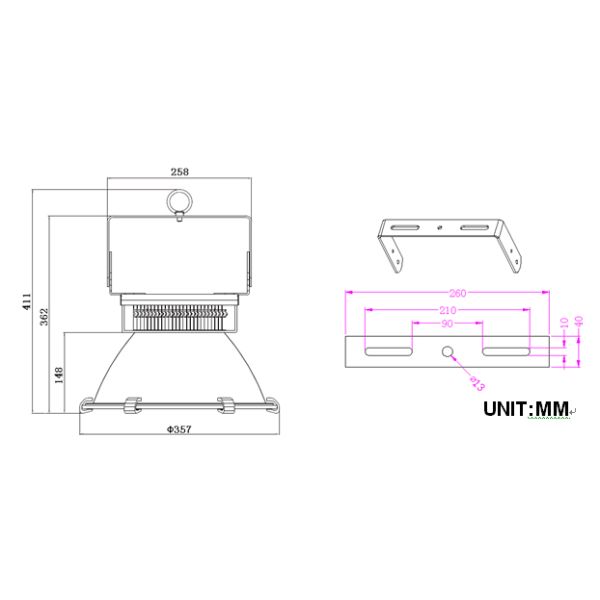

4. Outlook:

PF >0.95 Outdoor High Bay Light IP65 Led Highbay Light / Lamp Energy Saving 25D

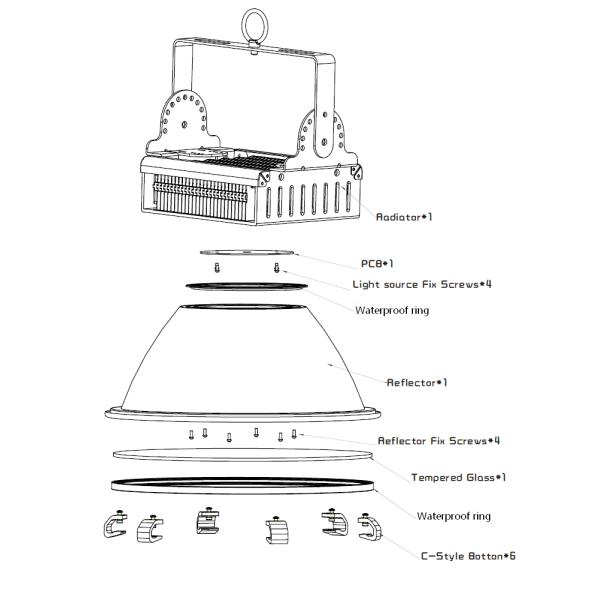

5. Split graph:

PF >0.95 Outdoor High Bay Light IP65 Led Highbay Light / Lamp Energy Saving 25D

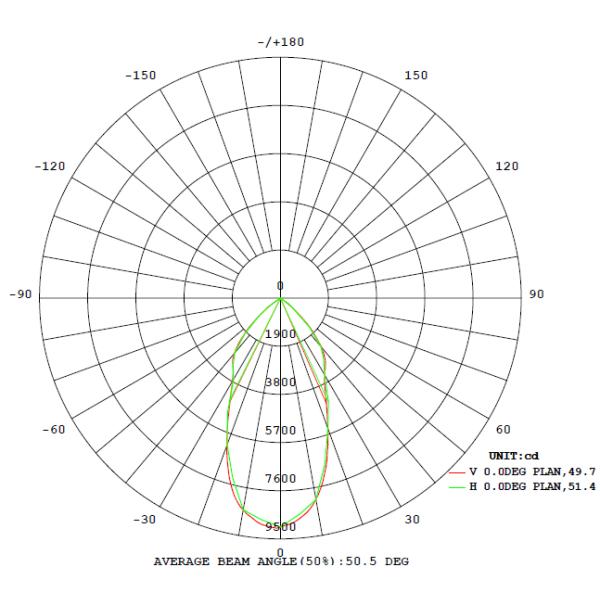

6. Photometry:

PF >0.95 Outdoor High Bay Light IP65 Led Highbay Light / Lamp Energy Saving 25D

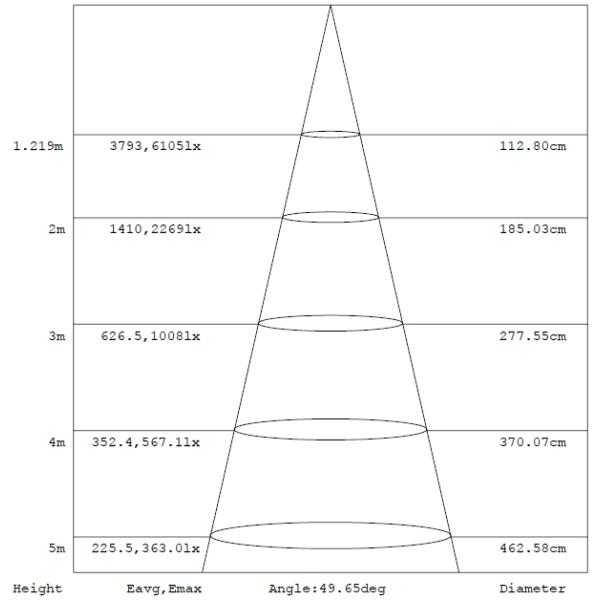

7. Optical Performance 70W High Bay Light Height = 10 m

PF >0.95 Outdoor High Bay Light IP65 Led Highbay Light / Lamp Energy Saving 25D

8. Application:

1. Factory, warehouse, wharf

2. Airport, Gym, Square

3. Outdoor advertising

4. Replace traditional lamp such as, HID, HPS etc.

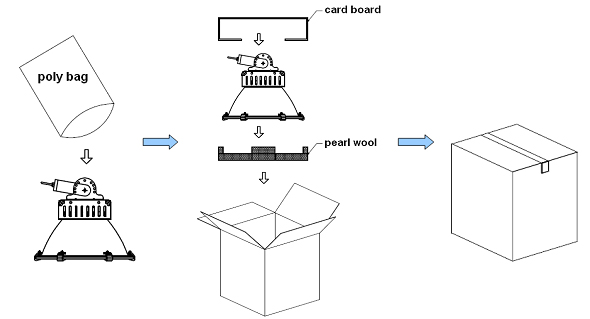

9. Package:

Carton Size: 405mm×405mm×380mm

Net weight:4.6KG Gross weight:5.8KG

PF >0.95 Outdoor High Bay Light IP65 Led Highbay Light / Lamp Energy Saving 25D

​10. Please Contact me If any interests you have by the following:

Contacts: Delina Cao. Email: sales15@leyond.com.cn Skype: ly-sales15
