TC Company Automatic PUR Hot Glue PVC Film Paper Cardboard Door Laminating Machine Paper Film Laminator

Specifications

Place of Origin :

Guangdong, China

Brand Name :

TC Machinery Electronic

machine type :

LAMINATING MACHINE

video outgoing-inspection :

Provided

machinery test report :

Not Available

core components :

PLC, Gearbox, motor, Pressure vessel

warranty :

1 Year

weight (kg) :

10000

power (kw) :

key selling points :

MUFTIFUNCTIONAL

Product name :

PUR Hot Glue Laminating Machine

Glue :

PUR Hot Melt

Covering Film :

High Glossy Film, Acrylic, HPL, PVC, PET,etc.

Base Profiles :

WPC, PVC Foam, Wooden Panel, ACP, Gypsum Board,etc.

Voltage :

AS Request

Advantage :

Multifunctional

Passing Height :

3-45mm

Panel Width :

200-1300mm

Panle Length :

500-400mm

Panle Thickness :

1.5-45mm

Description

Product Description

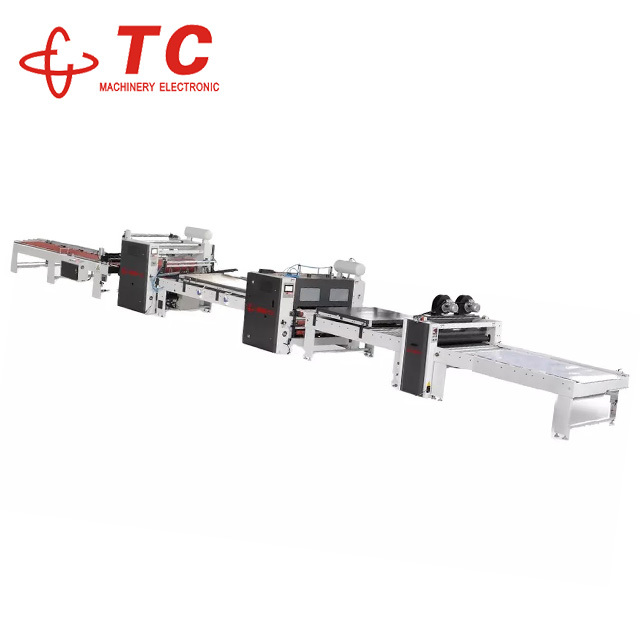

Fully automatic pur hot metl flat panel laminating machine

Working Width	1350mm
Working Height	900+20mm
Feed Speed	8-20m/min
Passing Height	3-45mm
Machine length	L17000 or other lengths * W2250* H3400mm
Machine Weight:	8 tons
Glue Melter	200kgs (55 gallon, 2 guns, 2 hoses)
Substrate:
Material	WPC/PVC Foam /Chipboards/MDF/HDF/Honeycomb boards/ Aluminum Composite Board,etc
Width	500-1250mm
Length	500-2450mm
Thickness	3-45mm
Surface Decorative Materials:
Covering Material	Acrylic,HPL, Aluminum, High Glossy Film, PVC film, PET Film, Paper, etc.

Products Words

PUR Hot Melt Adhesive Laminating Machine has the

advantage of no crushing, no bubbly and good quality feature, as well as advanced

technical, high precision, reasonable composition, new structure, easy operation,

it’s a good machine for the high precise sticking also include front and back

conveying, glue spreading structure, feeding, brusher cleaning and hot pressing structure.The laminated finished board are weather resistance, waterproof, anti-uv

and anti-aging, suitable for many decoration usages, such as kitchen cabinets, Bathroom cabinet, wardrobe, other doors and furnitures, walls, and other decoration us.

The machine can clean dust, spread glue, heat, press decorative film and protective

film automatically, you just feed the boards till the whole processings are finished, the finished products are without bubbles, without wrinkles, achieve perfect finished
effect, and alsocan reduce a lot of labor cost, improve production effect and assure

qualified passing rate.

During the production, you could adjust temperartures, glue volume according to there quirments.

What is more, you can also add another auto systems, such aboard feeding, outfeeding,

film cutting and trimming, a full automatic line, without human interfence.

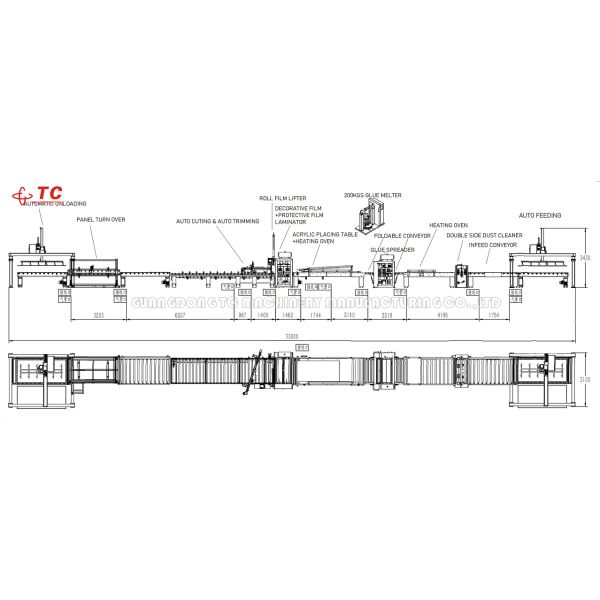

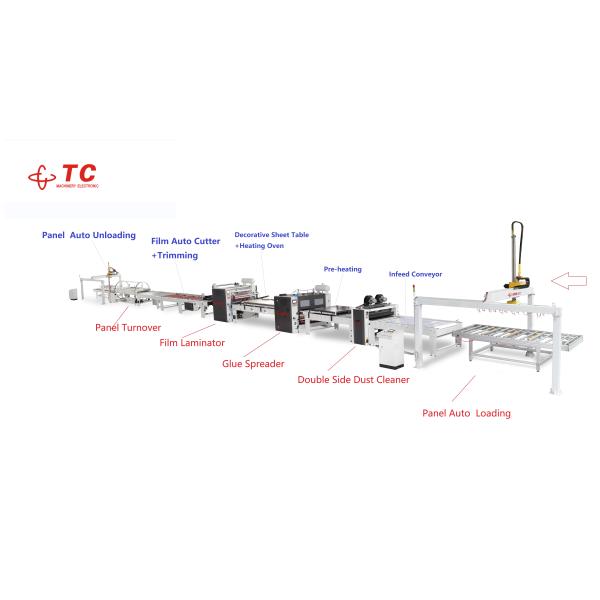

Machine Configurations for Choice:
1. Panel Auto Loading

2. Dust cleaner
*Double side dust cleaner,
*Simple dust cleaners
*Electrostatic liquid dust removal for choice

3. Pre-heating

4. Glue spreader

*3 Roller
*5 Roller+Doctor blade

5. Decorative sheet placing table+Heating oven

6. Film Laminator

7. Auto cutter + Auto trimmer

8. Single Panel Turn Over

9.Panel Auto Unloading

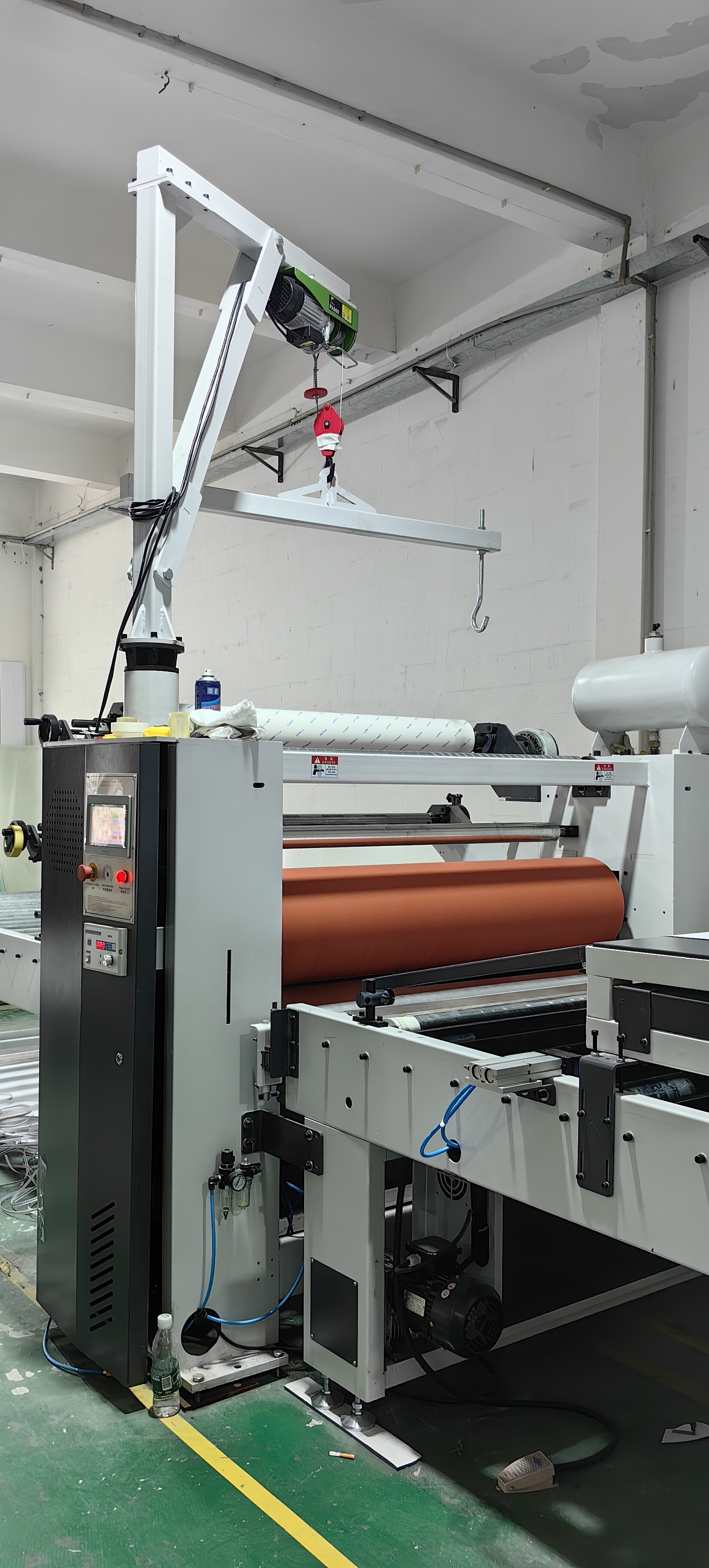

Film Laminator

1. Decotative Film Laminating + Protectie Film Laminating;

2. oil+Electric Heating;

3. Decerative Roll film corrector;

4. Stronger Frame more stable, Powder coating instead of paint for better scratch resistance;

5. PLC Touch Screen:easy to operate the machine and easier and faster to detect to solve if fault;

6. PVC/PET FILM edge auto trimming;

GLUE SREADER

1.5 rollers:∮240x1350mm width;

2.TWO layers of scraper:better gluing effect for doing high glossy film;

3:oil & Electric Heating;

4.Foldable conveyors: easy clean the machine after production every time;

5.PLC Touch Screen: much better and easier to Control the machine, easier and faster detect fault;

DOUBLE SIDE DUST CLEANER

1.5KW AIR FAN*2PCS BETTER CLEANING EFFECT

DELIVERY ROLLERS

STRONGER AND MORE DURABLE

Suitable Materials

Widely used in kitchen cabinet door, bedroom wardrobe door, ,cupboard doorshoes

cabinet, TV cabinet, display cabinet,Children bedroom cabinet and study cabinet and bathroom cabinet , sliding doors , inner doors ,indoor decoration.

Panels: Particle Board, MDF, Plywood, High Polymer Plastic Board ,

Foam Boards, etc.

Covering Film: High glossy film, PVC, Roller Paper, HPL, CPL, Acrylic,

Aluminum Sheet, Aluminum Foil,etc.

Glue:PUR hot melt glue( or add cold glue together)

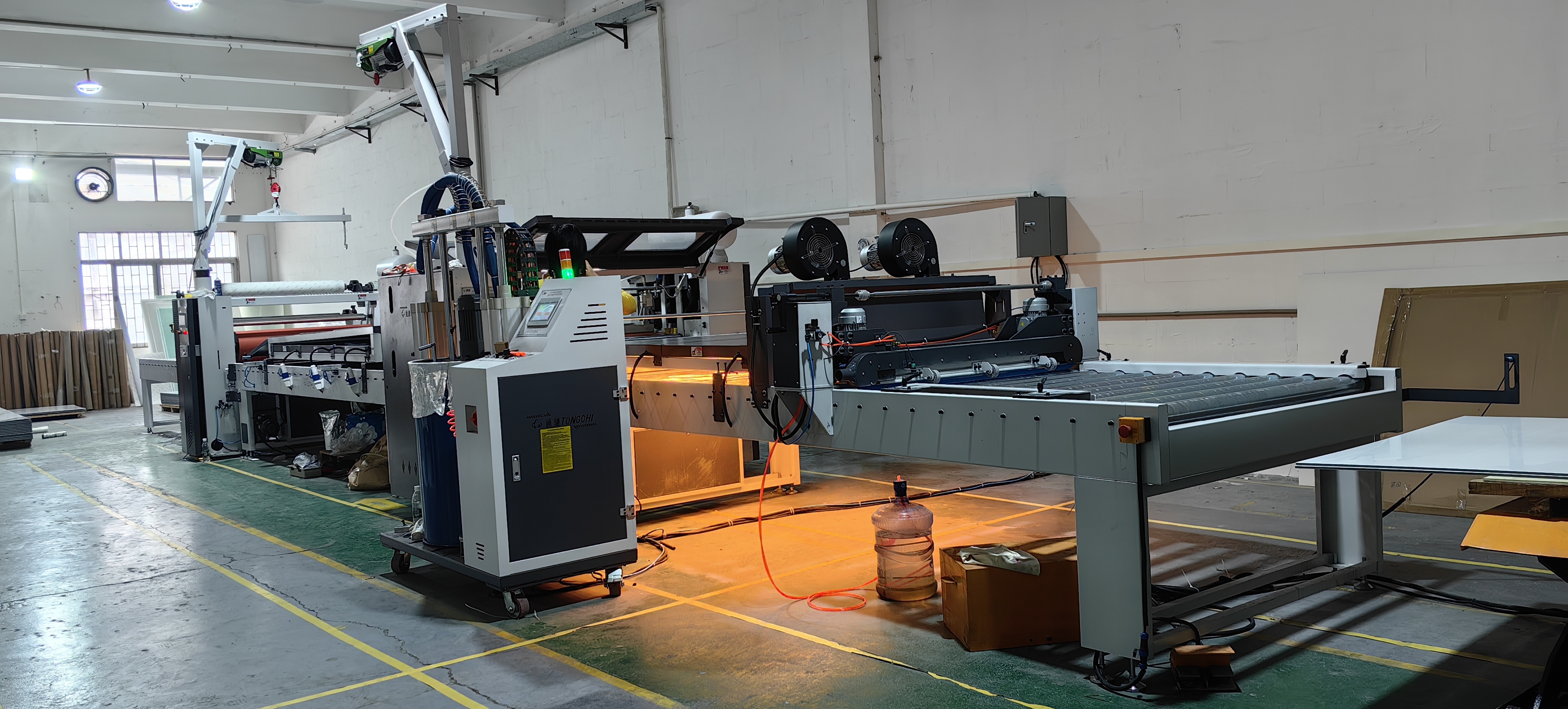

Finished product display

Packing & Delivery

1. Packed by Foam & shrink film

2. Extra cost is necessary if packed by wooden case

Company Profile

---- Focus on the decoration of furniture surface to be a industry benchmark.

Take innovation as the mission of GUANGDONG TC MACHINERY MANUFACTURING CO.LTD (Original name Foshan TC Woodworking Machinery Co.,Ltd and Foshan

Tongchi Electric Motor Co.,Ltd), was founded in 2006, owns a modernized production base of round 30,000 sqm, has set up many branch marketing companies throughout

the country gradually, with staff 126 employees ,located at Jiangmen city , Guangdong,

China, and operated center in Shunde, Foshan, Guangdong.

it is the China first Top “laminating mahcine professor ”decoration production
line of professional manufacturers.Realized the demand and harmonious between
humans and environment by forest , our owner ,also the general engineer ,on the
other hand has been investing his expertise on 20 years’ research and development
to fulfil decorate furniture surface by laminate machines to be instead of limited
solid wood sources in all over the world , Meanwhile , most end-user’s underlying
quest for smaller ,smarter and simple Laminating machine production lines .
when most companies are busy marking big ,over-complicated and fancy -looking
machines in order to mark a high price. Yes , we do not follow suit from our
beginning in 2006 .

We specializes in designing and manufacturing surface decorative
wrapping/laminating machines: spread glue, laminate decorative films
on the surface of complex shapes, flat panels.....main products are as following:

*Pur hot glue and cold glue Profile Wrapping Machine Series
*Flat Panel pur hot glue and cold glue Laminating Machine Series
*Vacuum Membrane Press Machine Series
*Professional metal sheets laminating machine Series
*Roll Film Cutting Machine Series
*Glue Spreader Machine Series
*Glue Melter Machine Series

Our products sells to overall China and many different countries.
Currently, factory has over a perfect after-sales service team and with
a designer team of years experience.Also, to offer customers the qualified
and competitive price products, and assure the best shipment time, we not
only assemble machines, but also produce and sell machine components
and accessories. In additional, we can customize machines according to
your' requirement, support do your best products.Welcome your inquiry
and expect to work with you together and offer you the best service.

Through many years’ arduous effort and development plan, the
comprehensive strength of “TC”has been increasing stably, realizing the
strategic goal of sustainable and sound development. The popularity and
reputation degree of its brand increase.

our customer

Exhibition

Why Choose US?

1）Professional Manufacturer of profile wrapping/laminating

machines for 18+ years

2) Factory is around 30,000 square meters

3) More than 20 after sales service engineers

4) Our machines are permanent service

5）Designers experience: 20+ years in the industry field

FAQ

Q1. Are you a trading company or a factory?
We are the factory since 2006. Factory at Heshan City,

Jiangmen City, Guangdong Province, around 1~2 hours
from Guangzhou, 1 hour from Foshan by car

Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.

Q3. What is the payment term?
T/T 40% prepaid and balance before shipment,or L/C

Q4. What is the delivery time?
10-40 working days, depends on what configurations you
choose. we have semic automatic and fully automatic.

Q5. What about the after sales services?
Services is permanet.

1.We will offer photos with illustrations, videos, manual or
on-line support.
2.Service in overseas customer's factory.

if you want to service in your factory, need to charge USD
120/day/engineer, in additional, round tickets, hotel, food,
translation and any other fees related to overseas service
need to be paid by buyer.
