Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TC Machinery Electronic
machine type :
LAMINATING MACHINE
video outgoing-inspection :
Provided
machinery test report :
Not Available
core components :
PLC, Gearbox, motor, Pressure vessel
warranty :
1 Year
weight (kg) :
1800
power (kw) :
15
key selling points :
MUFTIFUNCTIONAL
Product name :
Sticking Paper PVC Laminating Machine
Glue :
cold glue( white latex glue)
Covering Film :
PVC Film, Paper
Base Profiles :
mdf, plywood, particle board
Voltage :
AS Request
Structure size :
8000*1900*1700mm
Working Speed :
3-8m/min(Adjustable speed)
Gluing way :
Roller Spreading Glue
Max.working width :
1300mm
Max.working height :
45mm
Description
Product Description
TC-II Pvc Paper Sticking Machine laminating machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Mode specification
φ190-1350mm
Board length
Above 600mm
Board width
1220mm
Board thickness
1.5-30mm
Rate of material delivery
2-5m/min
Motivity power
1.5kw
Heating power
3kw
Machine weight
2500kg
Paper width
1300mm
Structure size
8000*1900*1700mm
Principal axis roller diameter
φ190
Products Words
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Sticking paper machine is suitable for small-medium enterprise of furniture and
Audio and with the features of no wrinkles,bubbles and high rate of quality products.

Adopt to advanced-technology of laminating with thehigh precision,reasonable
overlay,novel structure and easy operation,which is top choice of PVC equipments.

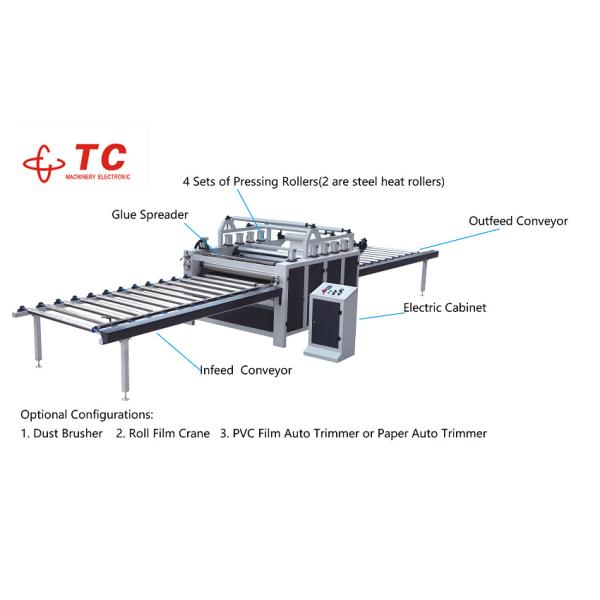

Device configuration:front-rear delivery plate,spreading glue system,unwinding structure,automatically cutting system,hot press system.
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine

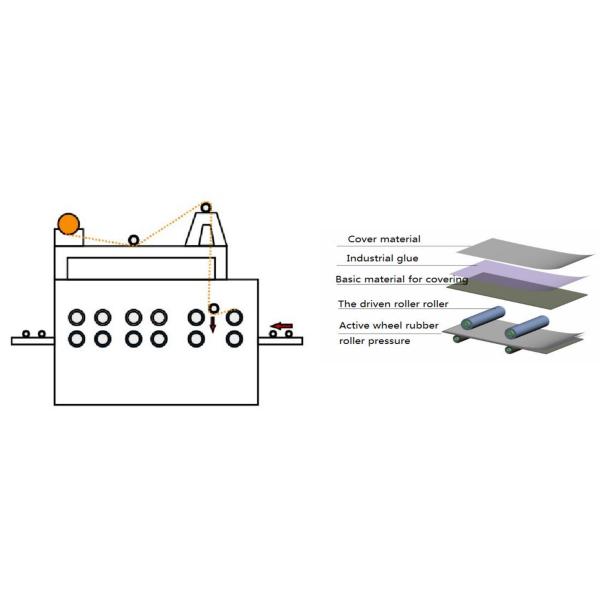

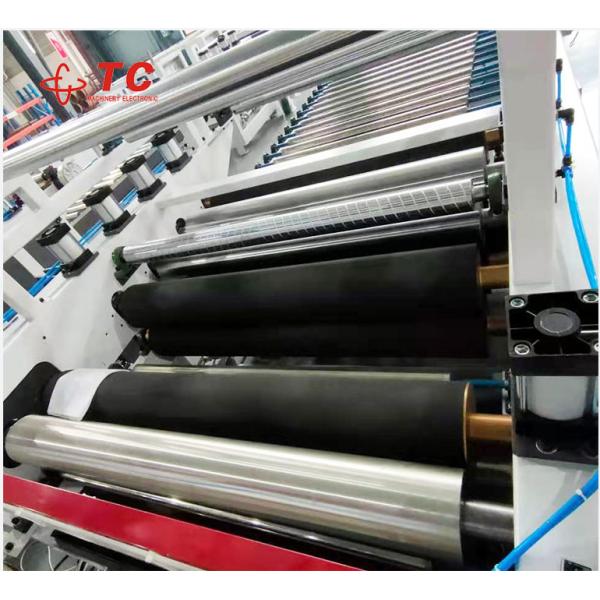

Pressing Rollers

*4 sets of pressing rollers(2 are steel heat rollers)

*Glue is evenly applied

Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine

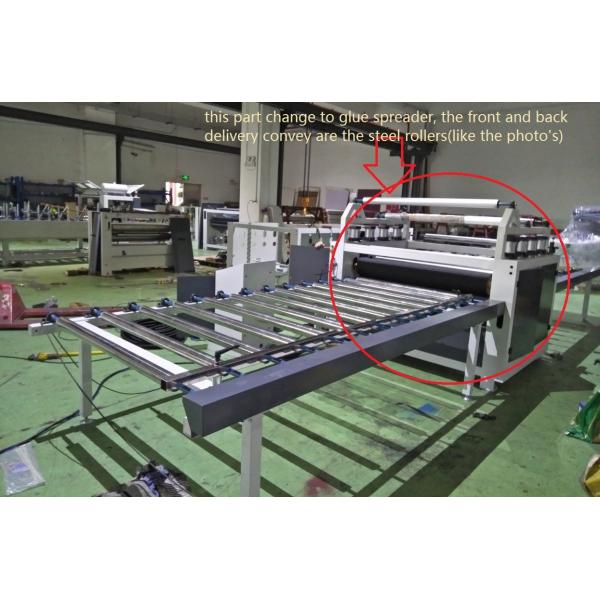

GLUE SREADER

This part change to glue spreader,the front
and back delivery convey are the steel rollers (like the photo's)
Suitable Materials
Glue:cold glue( white latex glue)

Covering Film：PVC Film, Paper

Base Profiles：mdf, plywood, particle board

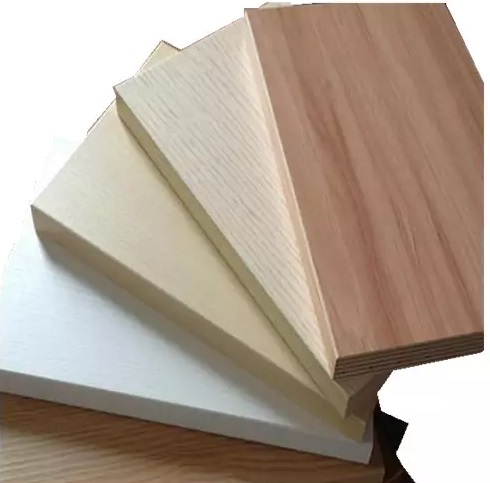

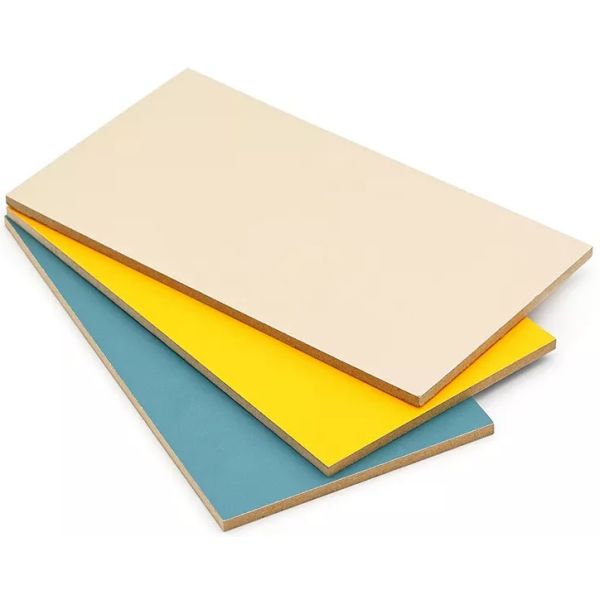

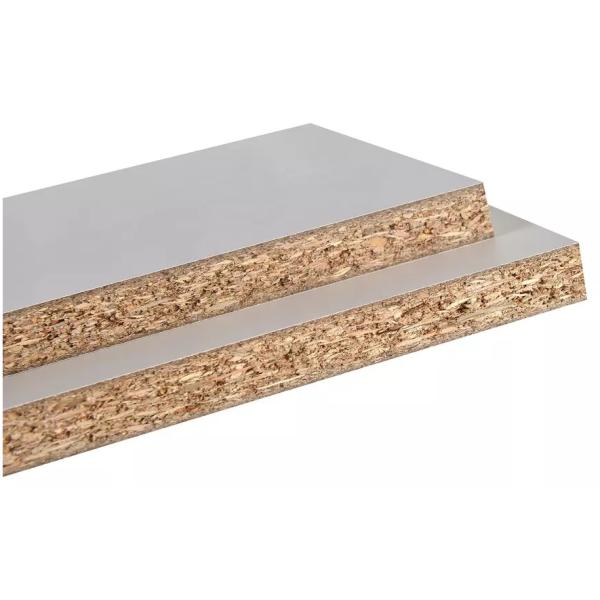

Finished product display
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Packing & Delivery

1. Packed by Foam & shrink film


2. Extra cost is necessary if packed by wooden case
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Company Profile
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine

---- Focus on the decoration of furniture surface to be a industry benchmark.

Take innovation as the mission of GUANGDONG TC MACHINERY
MANUFACTURING CO.LTD (Original name Foshan TC Woodworking
Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), was
founded in 2006, owns a modernized production base of round 30,000
sqm,has set up many branch marketing companies throughout the
country gradually, with staff 126 employees ,located at Jiangmen city,
Guangdong, China, and operated center in Shunde, Foshan, Guangdong.

it is the China first Top “laminating mahcine professor ”decoration
production line of professional manufacturers.Realized the
demand and harmonious between humans and environment by forest ,
our owner ,also the general engineer ,on the other hand has been
investing his expertise on 20 years’ research and development to fulfil
decorate furniture surface by laminate machines to be instead of limited
solid wood sources in all over the world , Meanwhile , most end-user’s
underlying quest for smaller ,smarter and simple Laminating machine
production lines . when most companies are busy marking big ,
over-complicated and fancy -looking machines in order to mark a high
price. Yes , we do not follow suit from our beginning in 2006 .

We specializes in designing and manufacturing surface decorative wrapping/laminating machines: spread glue, laminate decorative
films on the surface of complex shapes, flat panels.....main products
are as following:

*Pur hot glue and cold glue Profile Wrapping Machine Series
*Flat Panel pur hot glue and cold glue Laminating Machine Series
*Vacuum Membrane Press Machine Series
*Professional metal sheets laminating machine Series
*Roll Film Cutting Machine Series
*Glue Spreader Machine Series
*Glue Melter Machine Series

Our products sells to overall China and many different countries.
Currently, factory has over a perfect after-sales service team and
with a designer team of years experience.Also, to offer customers
the qualified and competitive price products, and assure the best
shipment time, we not only assemble machines, but also produce
and sell machine components and accessories. In additional, we can
customize machines according to your' requirement, support do your
best products.Welcome your inquiry and expect to work with you together
and offer you the best service.

Through many years’ arduous effort and development plan, the
comprehensive strength of “TC”has been increasing stably, realizing
the strategic goal of sustainable and sound development. The popularity
and reputation degree of its brand increase.
our customer
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Exhibition
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Why Choose US?
1）Professional Manufacturer of profile
wrapping/laminating machines for 18+ years

2) Factory is around 30,000 square meters

3) More than 20 after sales service engineers

4) Our machines are permanent service

5）Designers experience: 20+ years in the industry field
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
Stable Quality- Decorative Wall Panel With PVC Film - Cold Glue Laminating Machine
FAQ
Q1. Are you a trading company or a factory?
We are the factory since 2006. Factory at Heshan City, Jiangmen City, Guangdong Province, around 1~2 hours
from Guangzhou, 1 hour from Foshan by car

Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.

Q3. What is the payment term?
T/T 40% prepaid and balance before shipment,or L/C

Q4. What is the delivery time?
10-40 working days, depends on what configurations you
choose. we have semic automatic and fully automatic.

Q5. What about the after sales services?
Services is permanet.

1.We will offer photos with illustrations, videos, manual or
on-line support.
2.Service in overseas customer's factory.

if you want to service in your factory, need to charge USD
120/day/engineer, in additional, round tickets, hotel, food,
translation and any other fees related to overseas service
need to be paid by buyer.
