3Pcs Cree Osram High Power LED Underground Lights With Round And Square Cover
3Pcs Cree Osram High Power LED Underground Lights With Round And Square Cover
3Pcs Cree Osram High Power LED Underground Lights With Round And Square Cover
3Pcs Cree Osram High Power LED Underground Lights With Round And Square Cover
3Pcs Cree Osram High Power LED Underground Lights With Round And Square Cover
3Pcs Cree Osram High Power LED Underground Lights With Round And Square Cover
3Pcs Cree Osram High Power LED Underground Lights With Round And Square Cover
3Pcs Cree Osram High Power LED Underground Lights With Round And Square Cover
Specifications
Brand Name :
A.L
Model Number :
AL-2CD
Certification :
CE,RoHS
Place of Origin :
Guangdong,China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
2,000pcs per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
7pcs/CTN (27x27x29CM),Weight 8Kg
Power :
3W,9W
Input :
24V;120V;240V
Material :
316 Stainless Steel,Die-casting Aluminum
Cable Length :
0.5m or longer
Warranty :
Two years
Description

3Pcs Cree Osram High Power LED Underground Lights With Round And Square Cover

Description

Good brand of Cree/Osram high power LED,light is soft and uniform.The underground lights use 316 stainless steel as light front cover.

Never rust,and light housing use die-casting alumium,perfect heat dissipation,ensure the light has long lifetime.

The light has round and square shape front covers,meet different requirements lighting projects.

Technical Datas

Model No. AL-2CD
Input Voltage 24V,120V,240V
Power 3W;9W
Light Size Φ116mm x H73m
Sleeve Size Φ110mm x H118m
Color R/G/B/Y/RGB 3in1/Amber/W/CW/WW
Color Temperature 2700K~6500K
LED Chip CREE 1W/3W high power LED
LED Qty 3pcs
Beam Angle 15°/30°/60°
Dimmable YES
IP Grade IP67
Weight 1.14Kg
Front Cover 304 / 316 Stainless Steel
Housing Die-casting aluminum
Sleeve PVC
Carton Package Dimension 27 x 27 x 29CM/8pcs
Carton Package Weight 7Kg
Certification CE,RoHS
Warranty 2/3years

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum

Front cover:stainless steel sus316#.

Lens:Asymmetrical and symmetrical optical lens,efficiency≥85%

Gasket:Molding shaped silicone seal

Glass:Step tempered galss,T=8mm

Cable gland:IP68 PG-9 copper with nickel-coated.

LED:High power LED

Loading capacity:Exert force area of Φ10=1330Kgs, Φ30=1840Kgs

Applicaation environment: -20℃-40℃

Power cable:24VDC low voltage:

H05RN-F 2x1.0mm² L=0.5M

Main voltage:

H05RN-F 3x1.0mm² L=0.5M

RGB 24VDC

H05RN-F 4x0.75mm² L=0.5M

Mounting Sleeve:PVC

Color Temperature & Color

  • 2000K 3000K 4000K 6000K
  • RGB
  • RGB 3in1
  • RGB with DMX512
  • RGB 3in1 with DMX512

Dimmable Support

  • PWM
  • Triac
  • 1-10V
  • DALI

Item No. Information

Model No. Colors Voltage Beam Angle Cover Shape Power
AL-2CDR Single Color 12/24VDC 120/240V 10/25/45/60° Round 3 x 2W
RGB 12/24VDC 3 x 3W
RGB with DMX512 12/24VDC 3 x 3W
RGB 3in1 12/24VDC 3 x 3W
RGB 3in1 with DMX 512 12/24VDC 3 x 3W
AL-2CDS Single Color 12/24VDC 120/240V 10/25/45/60° Square 3 x 2W
RGB 12/24VDC 3 x 3W
RGB with DMX512 12/24VDC 3 x 3W
RGB 3in1 12/24VDC 3 x 3W
RGB 3in1 with DMX 512 12/24VDC 3 x 3W
AL-C2CDR Single Color 12/24VDC 120/240V 45|35° Round 3 x 2W
RGB 12/24VDC 3 x 3W
RGB DMX512 12/24VDC 3 x 3W
RGB 3in1 12/24VDC 3 x 3W
RGB 3in1 with DMX 512 12/24VDC 3 x 3W
AL-C2CDS Single Color 12/24VDC 120/240V 45|35° Square 3 x 2W
RGB 12/24VDC 3 x 3W
RGB DMX512 12/24VDC 3 x 3W
RGB 3in1 12/24VDC 3 x 3W
RGB 3in1 with DMX 512 12/24VDC 3 x 3W
AL-D2CDR Single Color 12/24VDC 120/240V / Round 1.2W
RGB 3in1 12/24VDC 1.8W
AL-D2CDS Single Color 12/24VDC 120/240V / Square 1.2W
RGB 3in1 12/24VDC 1.8W

AL-2CDR/AL-2CDS:Symmetrical lens

AL-C2CDR/AL-2CDS:Asymmetrical lens

AL-D2CDR/AL-D2CDS:SMD LED with light panel

Product Advantage

  • 304/316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.
  • R/G/B/Y/W/CW/WW/RGB 3in1 color optional,meet different lighting design.
  • Low voltage 12V 24V,high voltage 120V-240V optional.
  • Symmetrical & Asymmetrical lens optional,choose the most appropriate lighting way for the building.

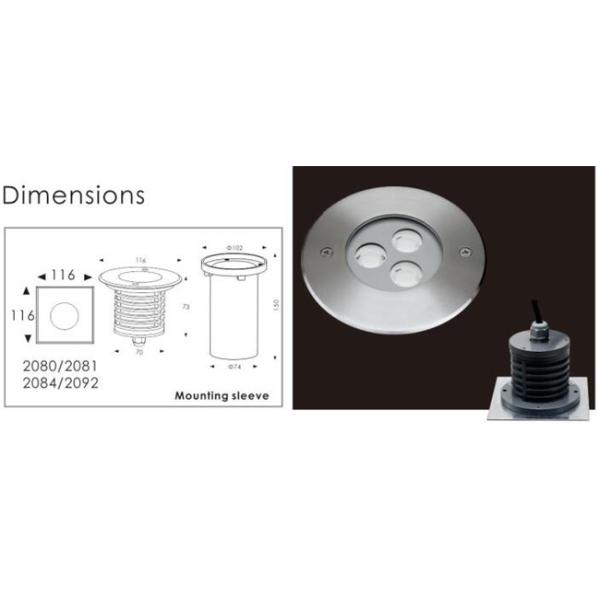

Dimension

3Pcs Cree Osram High Power LED Underground Lights With Round And Square Cover

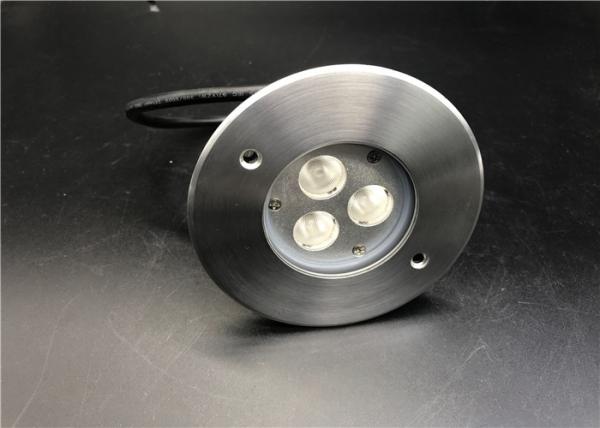

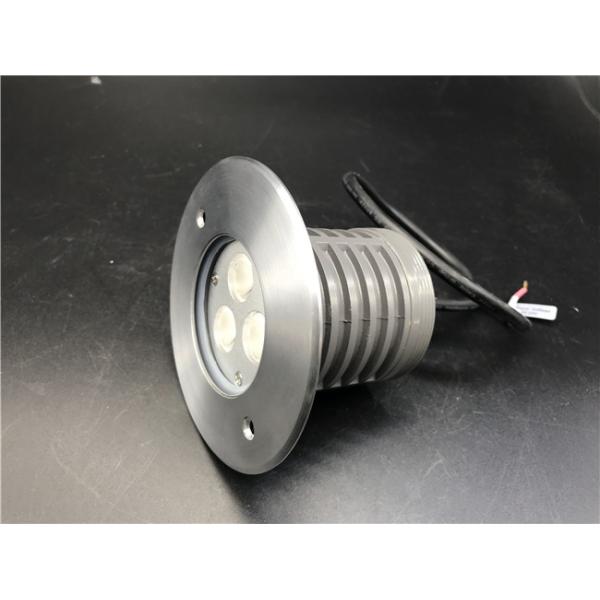

Photoes

3Pcs Cree Osram High Power LED Underground Lights With Round And Square Cover

Application

3Pcs Cree Osram High Power LED Underground Lights With Round And Square Cover
