DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED
DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED
DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED
DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED
DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED
DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED
DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED
DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED
Specifications
Brand Name :
A.L
Model Number :
AL-SL5050T120
Certification :
UL,CE,RoHS
Place of Origin :
Guangdong,China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
40,000meters per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
5m per reel,5m packed in one anti-static bag, 80bags / 1 CTN(52x31x30CM)
Power :
28.8W/M
FPC Width :
15mm
LED Qty :
120pcs/M
Input :
12V;24V
IP Grade :
IP20
LED Type :
5050 SMD LED
Length :
5m/Reel
Lumen :
20 ~22lm/SMD
Warranty :
Two years
Description


Felxible Strip Lights DC12 / 24V For Shopping Mall Lighting With Double Line 5050 LED


Quick Details

  1. LED Chip:5050SMD
  2. LED Qty:120pcs/m
  3. Voltage:DC12V,DC24V
  4. FPC Width:15mm
  5. Lumen:22lm/SMD
  6. Power:28.8W/m
  7. Color:Warm White
  8. LED Array:Double line


Parameters

Model No.

AL-SL5050T120-WW
Light Source SMD 5050
Input Voltage 28.8W/m
Dimension 15mm x 5m
FPC Width 15MM
Lumen 22lm/pcs
Color Temperature 2800K~3000K
Color Warm White
Lifetime 50000H
Beam Angle 120degree
LED Qty 120
Cutting Length 50mm
Operation Temperature -200C ~500C
Dimmable YES
FPC Color White
PCB Flexible
IP Grade IP20
Carton Package Qty 80reel
Certification UL,CE,RoHS
Warranty 2years


Features

  1. 12/24V low voltage,safe to install.
  2. 120 pcs 5050 led,high lumen,20lm/led.
  3. Pure copper PCB,excellent heat dissipation,long life time.
  4. 3M tape on the back,easy to install.
  5. 50mm cuttable,flexible application.

Models Optional

Model Number LED Qty Power FPC Width Color
AL-SL5050T120WW-12 120pcs/m 28.8W/m 15mm Warm White


Installation Warm Tip

(1) The max running length for each line is 5 meters. Please install the strips in parallel when length is

more than 5 meteres.

(2) Usually most of the power supply has a efficiency between 80%-95%, so whenchoosiing the power supply, the total watts of the strips should be smaller than 80% of the rate power of the led strips.


Application

1. Decorative lighting for exhibition shelves, advertising light box and hotel etc;
2. Backlight for edge lighting/signage;
3. Holiday decorative lights, residential and outdoor lighting;
4. Bridge, garden, road and car lighting

5. Shopping mall lighting

Warm Tips

  • This product is 12/24VDC power,pls don't connect the strips directly to high voltage.
  • This strip could be IP65,IP67,IP68 if need waterproof pls contact our sales consult.
  • Pls consider the voltage drop when install.

Dimension

DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED

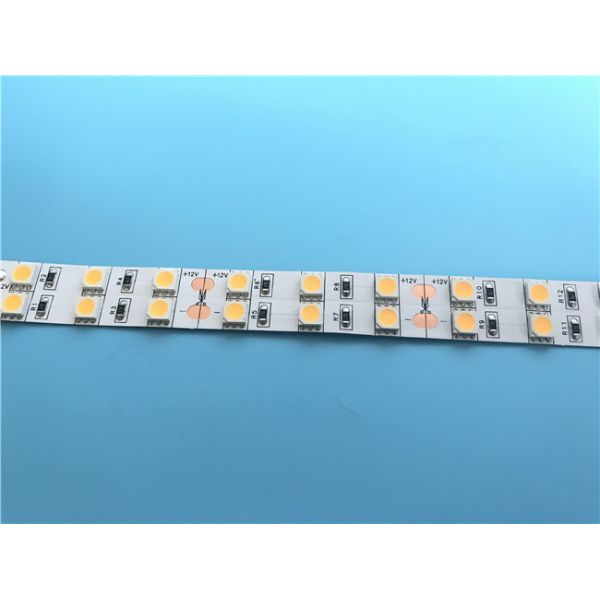

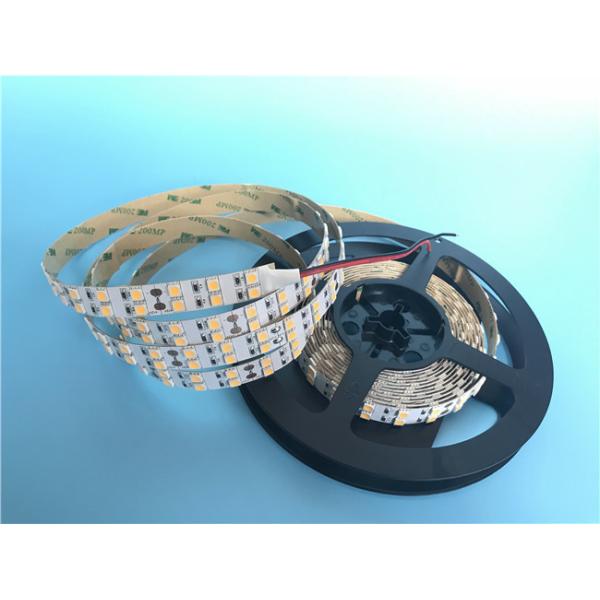

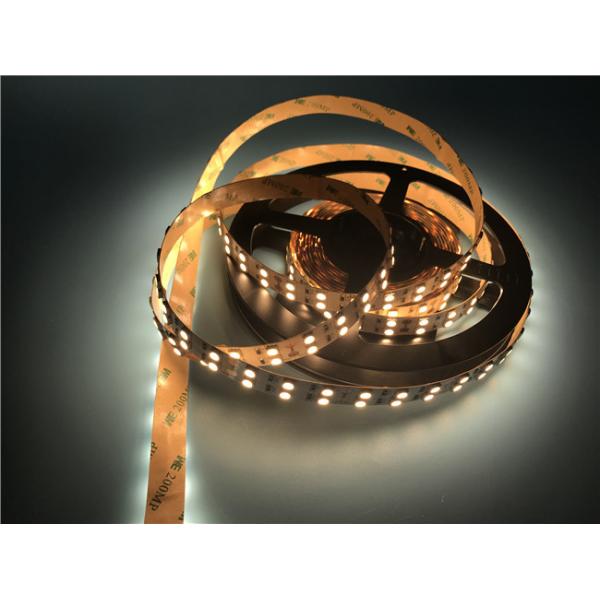

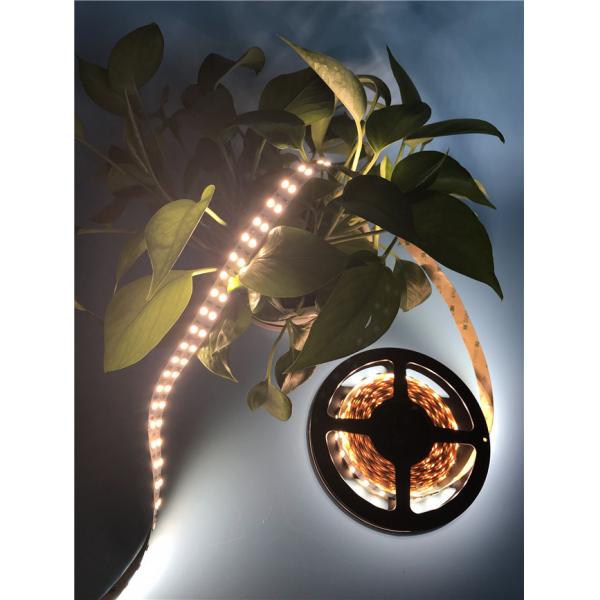

Photoes

DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED

DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED

DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED

DC12 / 24V Flexible LED Strip Light For Shopping Mall Lighting With Double Line 5050 LED
