High Lumen SMD 5050 Flexible LED Strip Light 24VDC Double Row
High Lumen SMD 5050 Flexible LED Strip Light 24VDC Double Row
High Lumen SMD 5050 Flexible LED Strip Light 24VDC Double Row
High Lumen SMD 5050 Flexible LED Strip Light 24VDC Double Row
High Lumen SMD 5050 Flexible LED Strip Light 24VDC Double Row
High Lumen SMD 5050 Flexible LED Strip Light 24VDC Double Row
High Lumen SMD 5050 Flexible LED Strip Light 24VDC Double Row
High Lumen SMD 5050 Flexible LED Strip Light 24VDC Double Row
Specifications
Brand Name :
A.L
Model Number :
AL-SL5050T120
Certification :
UL,CE,RoHS
Place of Origin :
Guangdong,China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
40,000meters per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
5m per reel,5m packed in one anti-static bag, 80bags / 1 CTN(52x31x30CM)
Power :
28.8W/M
FPC Width :
15mm
LED Qty :
120pcs/M
Input :
12V;24V
IP Grade :
IP68
LED Type :
5050 SMD LED
Length :
5m/Reel
Lumen :
20 ~22lm/SMD
Warranty :
Two years
Description


SMD 5050 Led Flexible Strip Lights , 24VDC Double Row 120leds/meter


Quick Details

1. LED Chip:5050SMD
2. LED Qty:120pcs/m
3. Voltage:DC12V,DC24V
4. FPC Width:12mm
5. Lumen:22lm/SMD
6. Power:28.8W/m
7. Color:NW/CW/WW
8. Certification:UL,CE,Rohs
9. LED Arrangement Mode:Double Line.


Features


1. High lumen 5050 SMD LED,22lm/LED,120leds/m,high power.
2. With Silicone IP68 waterproof,can be lighted underwater.
3. DC12V ,and DC24V,safe low voltage,long lifetime.


Technical Datas

Model No.

AL-SL5050T120
Input Voltage DC12/24V
Power 28.8W/m
Dimension 15mm x 5m
FPC Width 15MM
Lumen 22lm/pcs
Color Temperature 2700K~6500K
LED Chip Taiwan Epistar,5050SMD
Color Warm White
Lifetime 40000H
Beam Angle 120degree
LED Qty 120pcs/m
Operation Temperature -250C ~550C
Dimmable NON
FPC Color White
IP Grade IP68
Carton Package Dimension 52*31*30CM
Carton Package Qty 80reel
Certification UL,CE,RoHS
Warranty 2years



Models Optional

Model Number LED Qty Power FPC Width Color
AL-SL5050T120WP 120pcs/m 28.8W/m 15mm Warm White




Application

  • Outdoor landscape lighting
  • Swimming pool and foutains,signal
  • Steps and stairs lighting,machine lighitng
  • Vehicle lighting,display lighhting
  • Vending machine lighting,KTV,hotel lighting,cinema lighting.ect.

High Lumen SMD 5050 Flexible LED Strip Light 24VDC Double Row


Competitive Advantage

  • Double layer copper board for heat dissipation,long lifespan.
  • Epistar 5050 high brightness SMD LED,high lumen,high CRI.
  • UL,CE,Rohs certification provided.
  • Silicone environmental material,soft light,good heat dissipation.
  • 120pcs 5050 SMD per meter,brighter and higher power.



Warm Tips

  • This flexible strip light low voltage DC12V & DC24V lights,pls don't connect it to AC110V / AC220V. We have matched power supply and for this strip lights.
  • We also provide controller for the strip lights.
  • The standard length is 5meters per reel,if you have special requirements for the length also welcomed.


Tag

Strip Light,LED Flexible Strip Light,5050 Strip Light,LED ribbon lights,double line strip lights,IP68 strips

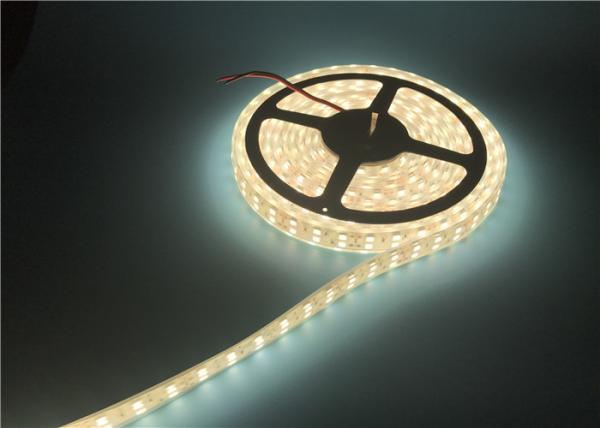

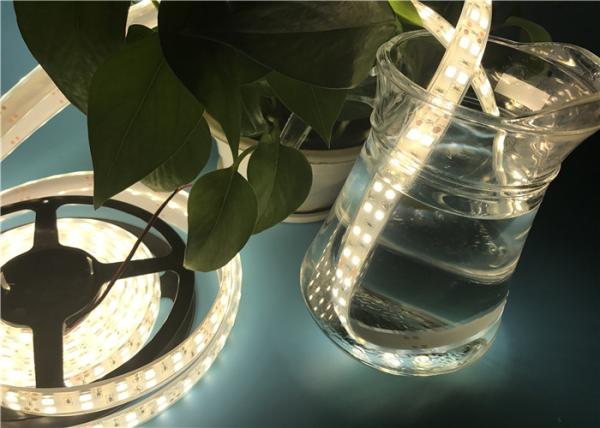

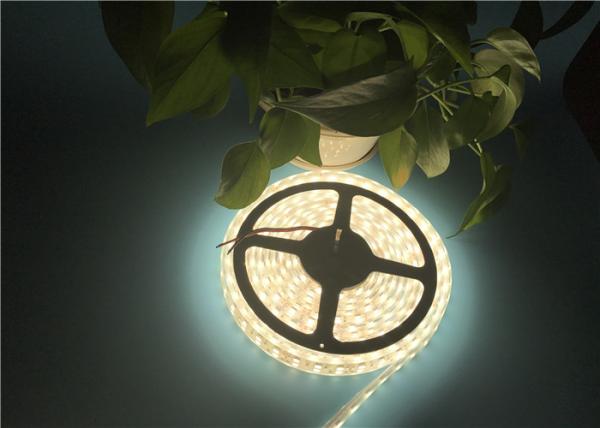

Photoes

High Lumen SMD 5050 Flexible LED Strip Light 24VDC Double Row

High Lumen SMD 5050 Flexible LED Strip Light 24VDC Double Row
