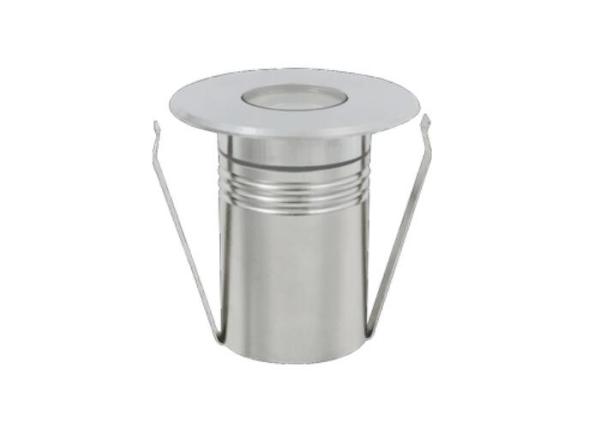

Osram LED Waterproof Swimming Pool Underwater Lights D68.5 X H73MM
Osram LED Waterproof Swimming Pool Underwater Lights D68.5 X H73MM
Osram LED Waterproof Swimming Pool Underwater Lights D68.5 X H73MM
Osram LED Waterproof Swimming Pool Underwater Lights D68.5 X H73MM
Osram LED Waterproof Swimming Pool Underwater Lights D68.5 X H73MM
Osram LED Waterproof Swimming Pool Underwater Lights D68.5 X H73MM
Osram LED Waterproof Swimming Pool Underwater Lights D68.5 X H73MM
Osram LED Waterproof Swimming Pool Underwater Lights D68.5 X H73MM
Specifications
Brand Name :
A.L
Model Number :
AL-4A
Certification :
CE,RoHS
Place of Origin :
Guangdong,China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
2,00pcs per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
4pcs/CTN (36x19x24CM),Weight 8Kg
Power :
1 x 3W
Materials :
316 Stainless Steel
LED Chip :
Osram High Power LED
Lens :
Asymmetrical and symmetrical
Lamp Size :
D68.5 x H73MM
Glass :
Stepped tempered Glass
Description


1 x 3W RGB 3in1 3000K LED Underwater Light With Asymmetrical Lens PVC Sleeve


Description


Asymmetrical and symmetrical lens optional.205MM diameter,large lighting area.1x3W.

25°/ 30°/ 35°/ 45° beam angle optional.


Parameters

Model No.AL-4A
Input VoltageDC12/24V
Power12 x 2W
DimensionD68.5mm x H73m
Sleeve DimensionD59mm x H135m
ColorR/G/B/Y/RGB/RGB 3in1/Amber/W/CW/WW
Color Temperature2700K~6500K
LED ChipOSRAM 2W high power LED
LED Qty1pcs
Beam Angle25°/30°/35°/45°
DimmableYES
IP GradeIP68
CertificationCE,RoHS
Warranty2/3years



Material & Manufacturing Technique

  • ​Molding shaped stainless steel sus316# Housing.
  • Molding shaped stainless steel sus316# front cover.
  • EPDM gasket.
  • Step tempered galss,T=8mm
  • IP68 PG-11 copper with nickel-coated.
  • Excellent heat conductivity aluminum PCB,coefficient of heat conductivity≥2.0w/mk.
  • Constant current driver,Single color LED=2-circuit output,RGB 3in1 LED=6-circuit output.
  • -20℃-40℃ application environment,less than 1m depth.
  • H07RN-F power cable 2x1.0m² L=3m(for single color),4x1.0m² L=3m(for RGB).
  • PVC sleeve.


Model Number Infos

Model No.ColorBeam AngleLensVoltagePower
AL-4A02Single15/30/45/60°Symmetrical Lens12V/24VDC1 x 2W
AL-4A05RGB 3in130°Symmetrical Lens12V/24VDC1 x 3W
AL-4A05MRGB 3in1 with DMX30°Symmetrical Lens12V/24VDC1 x 3W
AL-4A07RGBW 4in130°Symmetrical Lens12V/24VDC1 x 2W
AL-C4A02Single45|35°Asymmetrical Lens12V/24VDC1 x 3W
AL-C4A05RGB 3in145|35°Asymmetrical Lens12V/24VDC1 x 3W


Dimension

Osram LED Waterproof Swimming Pool Underwater Lights D68.5 X H73MM


Advantage

  • Molding shaped SUS 316 stainless steel as lamp housing and front cover,never rust,even in sea water.itanium plating treatment,surface is smooth and clean,ultra waterproof.
  • EPDM gasket,IP68 waterproof.
  • OSRAM,CREE top quality high LED chip,high bright,long lifetime.
  • Various color optional,red,green,blue,amber,yellow,pink,RGB,RGB 3in1.
  • CE and RoHS,two years warranty.
  • 10 years professional manufacturing and exporting experience.
  • Asymmetrical and symmetrical lens optional,beautiful lighting effect.

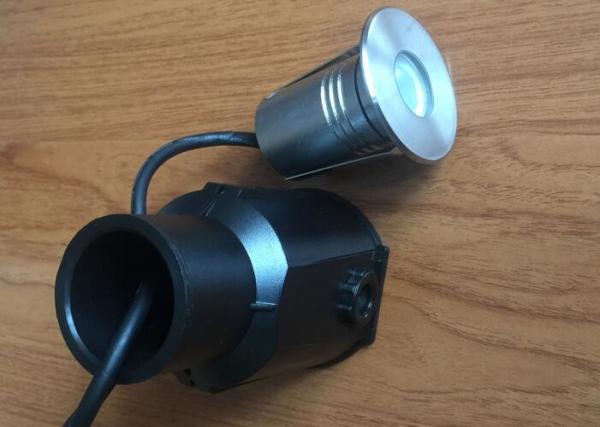

Product Photoes

Osram LED Waterproof Swimming Pool Underwater Lights D68.5 X H73MM


Beam Angle

Osram LED Waterproof Swimming Pool Underwater Lights D68.5 X H73MM
Asymmetrical lens: 35°/45°

Symmetrical lens: 25°/30°

Warm Tip & Warning

  • The lamp must be installed underwater to prevent the light from the burning up because of over-heating.
  • Pls connect the lamp to 12V or 24V voltage,don't connect



Application

Pool lighting,garden pool lighting,fountain lighting,swimming pool lighting.

Osram LED Waterproof Swimming Pool Underwater Lights D68.5 X H73MM
