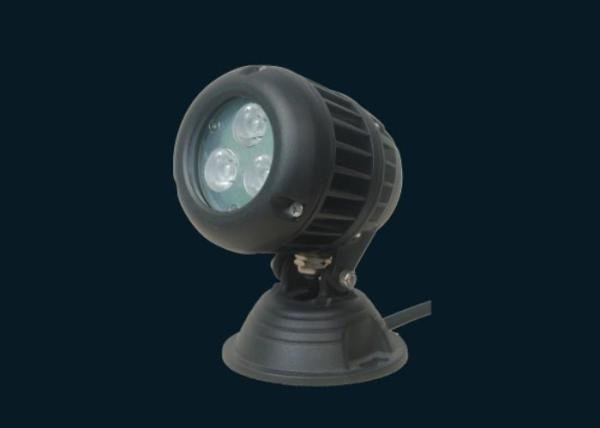

Convenient Installation LED Garden Spotlight With Powder Coated Steel Bracket IP65
Convenient Installation LED Garden Spotlight With Powder Coated Steel Bracket IP65
Convenient Installation LED Garden Spotlight With Powder Coated Steel Bracket IP65
Convenient Installation LED Garden Spotlight With Powder Coated Steel Bracket IP65
Convenient Installation LED Garden Spotlight With Powder Coated Steel Bracket IP65
Convenient Installation LED Garden Spotlight With Powder Coated Steel Bracket IP65
Specifications
Brand Name :
A.L
Model Number :
AL-3M
Certification :
CE,RoHS
Place of Origin :
Guangdong,China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
2,000pcs per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
8pcs/CTN (27x27x29CM),Weight 5Kg
LED Type :
1W/3W CREE high power LED
Beam Angle :
20°/25°
IP Grade :
IP65
Cable Length :
60cm or longer
Tempered Glass :
Thinkness = 4mm
Warranty :
Two Years
Description

Convenient Installation LED Garden Spotlight With Powder Coated Steel Bracket IP65

Quick Details

1. Power:3W,6W,18W

2. LED Qty:3pcs.6pcs,18pcs

3. Voltage:24V,100-240V

4. Beam Angle:20°/25°

5. Housing:Die-casting Aluminum

6. IP Grade:IP65

7. Size:Φ100 x H45mm(3W),Φ130x 210mm(6W),Φ180 x H270mm(18W)

Technical Datas

Model No. AL-3M
Input Voltage 12V/24V,220V
Power 3W;6W;18W
Color R/G/B/Y/RGB 3in1/Amber/W/CW/WW
Color Temperature 2700K~6500K
LED Chip CREE 1W/3W high power LED,COB LED
LED Qty 3pcs/6pcs/18pcs
Beam Angle 25°/30°
Dimmable YES
IP Grade IP65
Housing Material Die-casting aluminum
Weight 1.06Kg
Certification CE,RoHS
Warranty 2 & 3years
Packing Details
3W 27*27*29CM---8pcs---5.5Kg
6W 41*24*41CM---4pcs---6Kg
18W 48*25*50CM---4pcs---9.5Kg

Model Information

Model No. Color Power
AL-3M0301 Red/Green/Blue/Yellow/White/WW/CW 3 x 1W
AL-3M0302 Red/Green/Blue/Yellow/White/WW/CW 3 x 3W
AL-3M0303 RGB 3 x 1W
AL-3M0304 RGB 3 x 3W
AL-3M0305 RGB 3in1 3 x 3W
AL-3M0601 Red/Green/Blue/Yellow/White/WW/CW 6 x 1W
AL-3M0602 Red/Green/Blue/Yellow/White/WW/CW 6 x 3W
AL-3M0605 RGB 3in1 6 x 3W
AL-3M1801 Red/Green/Blue/Yellow/White/WW/CW 18 x 1W
AL-3M1802 Red/Green/Blue/Yellow/White/WW/CW 18 x 3W
AL-3M1805 RGB 3in1 18 x 3W

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum

Bracket:Powder coated steel

Glass:Step tempered galss,T=4mm

Lens:All-in-one optical lens,efficiency ≥85%

Cable gland:IP68 PG-9 PVC

LED:High power LED & COB LED

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Gasket:Tooling shaped seal

Driver:Constant current output

Applicaation environment:Temperature of water between -20℃-40℃

Power cable:H05RN-F 3x0.75m² L=2M(high voltage)

H05RN-F 4x0.75m² L=2M(for RGB)

Mounting Base:Powder coated die-casting aluminum

Comtetitive Advantage

1) Die-casting grey powder coated aluminum housing,good heat-dissipation,rustproof,meet different

rigorous installation environment.

2) Osram & Cree high power LED,R/G/B/Y/W/WW/RGB/RGB 3in1 color optional.Meet diversified color

changing for landscape lighting projects.

3) 12V,24V,220V optional,with round base,convient installation.

4) 10 years manufacturing & exporting experience,good quality control and good after-sales service

Dimension

Convenient Installation LED Garden Spotlight With Powder Coated Steel Bracket IP65
