Specifications
Brand Name :
CIMC
Model Number :
drop side trailer
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 9700-12500/Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 Unit/Units per Month
Delivery Time :
25-30 Works
Packaging Details :
Container,Bulk cargo or RORO shipping
Use :
Truck Trailer
Type :
Semi Trailer
Max payload :
40T
Oem no. :
side wall semi trailer
Suspension :
Mechanical / air / single point suspension
Landing gear :
Heavy Duty Landing Gear
Product name :
Sidewall Semi Trailer
Loading capacity :
30T~80T according to your requestment
Braking system :
WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Function :
cargo transporting side wall semi trailer
Description

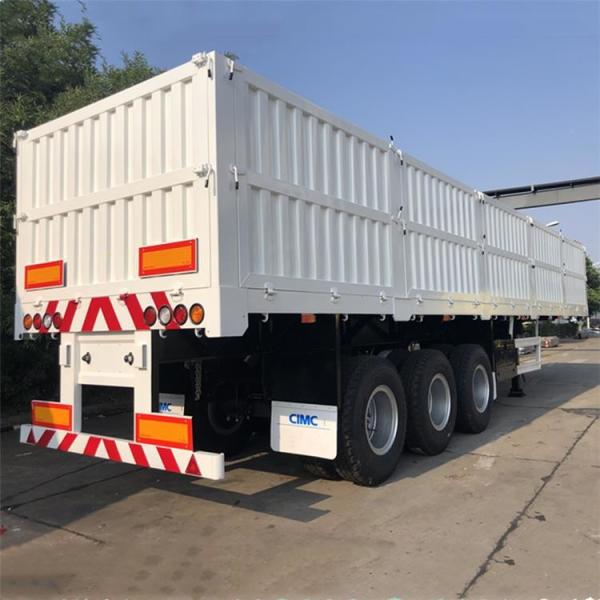

40T 3 Axle Drop Side Trailer Price For Sale-CIMC Manufacturers

Product Description:

Cargo semi trailer for sale was popular by logistics companies as its multipurpose application.It use to load a wide range of products and materials, like sand, bags, poultry etc.

Also the some bulk cargo, very widely used in the transportation industry.The side wall flatbed trailer can be use to load the containers after adopt the contianer locks for it.

Feature of flatbed trailer with long side wall:

1.There are a traction pin and a traction pin plate connected to the tractor under the front of the frame. The front cross beam of the frame is provided with an air brake connector and a wire connection socket. The front and side of the frame are equipped with lighting or signaling devices.

2.The frame is a space frame type low alloy steel welded structure.The frame is welded by two T-shaped longitudinal beams and beams to support the load.To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.
3.Hight Quality side wall, make sure the stable and safety of the loads.Trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

What should a drop side trailer driver do if the vehicle fails while braking?
1. Apply the rigid parts of the cargo semi trailer bumper and compartment to friction and collision with natural obstacles (rocks, trees or soil slopes) on the roadside, to achieve the purpose of forced parking and escape to minimize the accident losses.
2. Control the direction according to the road conditions and vehicle speed, and change the high-speed gear into the low-speed gear. In this way, there is a large traction resistance and the Side Wall Semi Trailer speed is rapidly reduced.

Specification of Tailgate Semi Trailer:

Dimension 12500mm*2500mm*2350mm(800mm sidewall)
Payload 50-60ton
Container lock 12 pcs
Axles 3 axles, Fuwa/BPW /CIMC or other Chinese famous brand
Tire 12 units
Brake system WABCO brake system with dual brake chambers and emergency brake valve
Suspension Mechanical / airbag / bogie suspension
King Pin JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear JOST brand
Accessories Tool box , spare tire carrier
