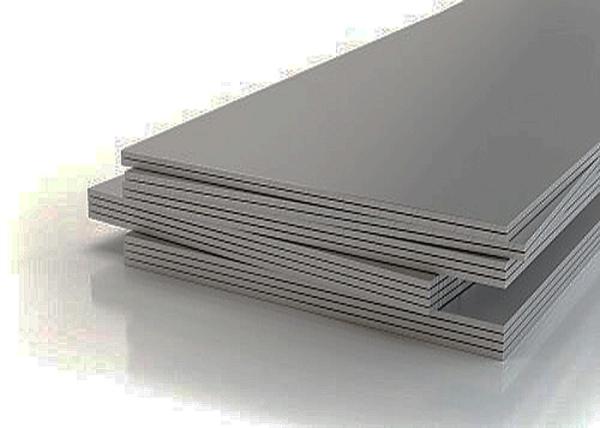

3102 Aluminum Sheet

3102 aluminium alloy is an alloy in the wrought aluminium-manganese family (3000 or 3xxx series). It is one of the most lightly alloyed grades in the 3000 series, with at least 97.85% aluminium by weight. Like most other aluminium-manganese alloys, 3102 is a general-purpose alloy with moderate strength, good workability, and good corrosion resistance. Being lightly alloyed, it tends on the lower strength and higher corrosion resistance side. It can be cold worked to produce tempers with a higher strength but a lower ductility. It can be formed by rolling, extrusion, and forging. As a wrought alloy, it is not used in casting.

3102 aluminium can be alternately referred to by the UNS designation A93102. The alloy and its various tempers are covered by the following ASTM standards:

ASTM B 210: Standard Specification for Aluminum and Aluminum-Alloy Drawn Seamless Tubes

ASTM B 221: Standard Specification for Aluminum and Aluminum-Alloy Extruded Bars, Rods, Wire, Profiles, and Tubes

ASTM B 483: Standard Specification for Aluminum and Aluminum-Alloy Drawn Tube and Pipe for General Purpose Applications

ASTM B 491: Standard Specification for Aluminum and Aluminum-Alloy Extruded Round Tubes for General-Purpose Applications

Chemical Composition of 3102 Aluminum Sheet:

The alloy composition of 3102 aluminium is:

1. Aluminium: 97.85 to 99.95%
2. Copper: 0.1% max
3. Iron: 0.7% max
4. Manganese: 0.05 to 0.40%
5. Silicon: 0.4% max
6. Titanium: 0.1% max
7. Zinc: 0.3% max
8. Residuals: 0.15% max

Physical Properties of 3102 Aluminum Sheet:

The physical properties of aluminium / aluminum 3102 alloy are outlined in the following table.

Applications of 3102 Aluminum Sheet:

Product of 3102 Aluminum Sheet:
