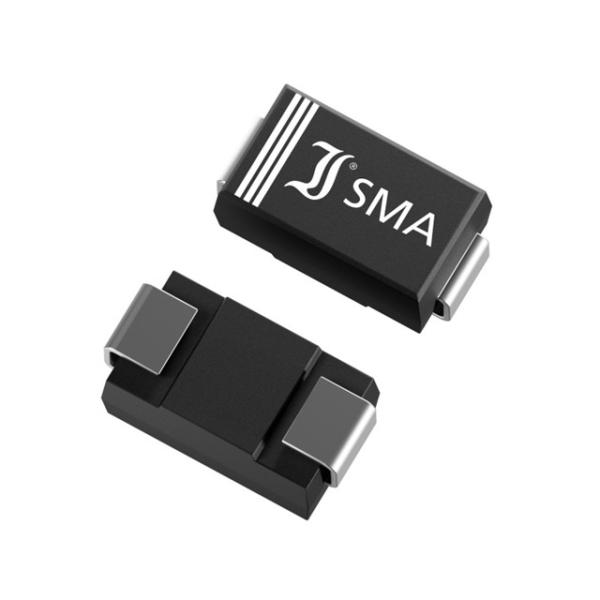

SK34SMA 3A SMD Schottky Barrier Rectifier Diodes DO - 214AC
SK34SMA 3A SMD Schottky Barrier Rectifier Diodes DO - 214AC
Specifications
Brand Name :
DIOTEC
Model Number :
SK34SMA
Certification :
CE/ RoHS
Place of Origin :
Germany
MOQ :
10pcs
Price :
To be negotiated
Payment Terms :
T/T, Western Union ,paypal
Supply Ability :
10,000PCS
Delivery Time :
in stock 2-3days
Packaging Details :
2000pcs/reel
Description :
Diode 40 V 3A Surface Mount DO-214AC, SMA
PN :
SK34SMA
Package :
SMA / DO-214AC
Original :
Germany
Current :
3A
Weight approx. :
0.07 g
Description

Surface Mount Schottky - Rectifiers SMD Schottky Barrier Rectifier Diodes 3rd Generation

Features:

Nominal current – Nennstrom 3 A
Repetitive peak reverse voltage 20…100 V
Periodische Spitzensperrspannung
Plastic case ~ SMA
Kunststoffgehäuse ~ DO-214AC
Weight approx. – Gewicht ca. 0.07 g
Plastic material has UL classification 94V-0
Gehäusematerial UL94V-0 klassifiziert
Details:
Max. average forward rectified current, R-load TT = 100/C IFAV : 3 A
Dauergrenzstrom in Einwegschaltung mit R-Last
Repetitive peak forward current f > 15 Hz IFRM : 20 A 2)
Periodischer Spitzenstrom
Peak forward surge current, 50 / 60 Hz half sine-wave TA = 25/C IFSM: 80 / 90 A
Stoßstrom für eine 50 / 60 Hz Sinus-Halbwelle
Rating for fusing, t < 10 ms TA = 25/C i2 t 32 A2s
Grenzlastintegral, t < 10 ms
Leakage current – Sperrstrom Tj = 25/C VR = VRRM: IR< 80 :A
Tj = 100/C VR = VRRM, IR < 10.0 mA
Thermal resistance junction to ambient air RthA < 70 K/W 1)
Wärmewiderstand Sperrschicht – umgebende Luft
Thermal resistance junction to terminal RthT < 20 K/W
Wärmewiderstand Sperrschicht – Anschluß
Operating junction temperature – Sperrschichttemperatur Tj: – 50...+150/C
Storage temperature – Lagerungstemperatur TS : – 50...+150/C
Mounted on P.C. board with 50 mm2 copper pads at each terminal
Montage auf Leiterplatte mit 50 mm2 Kupferbelag (Lötpad) an jedem Anschluß2
