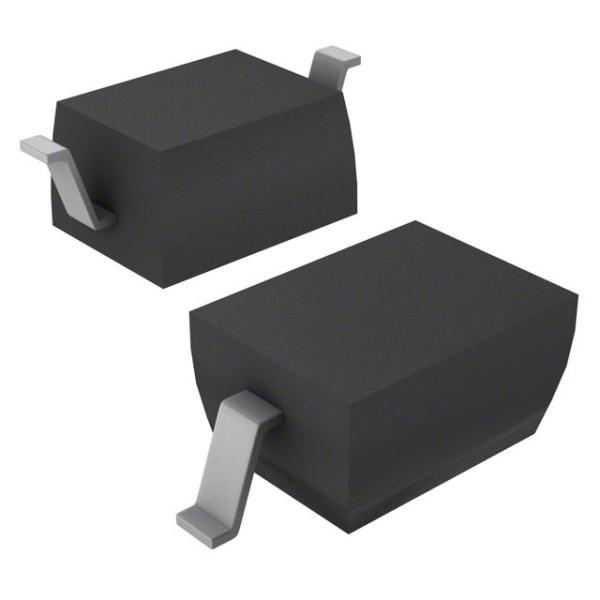

DF2B29FU,H3F TVS 24VWM 47V ESD Protection Diodes
DF2B29FU,H3F TVS 24VWM 47V ESD Protection Diodes
Specifications
Brand Name :
TOSHIBA
Model Number :
DF2B29FUH3F
Certification :
CE/ RoHS
Place of Origin :
JAPAN
MOQ :
10pcs
Price :
To be negotiated
Payment Terms :
T/T, Western Union ,paypal
Supply Ability :
10,000PCS
Delivery Time :
in stock 2-3days
Packaging Details :
3000pcs /Reel
Description :
47V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount USC
PN :
DF2B29FUH3F
Brands :
TOSHIBA
Original :
JAPAN
Type :
TVS DIODE ESD Protection Diodes Silicon Epitaxial Planar
Voltage :
24VWM 47VC
Package :
SOD323
Description

DF2B29FUH3F TVS DIODE 24VWM SOD323 47VC ESD Protection Diodes Silicon Epitaxial Planar

1.Applications• ESD Protection
Note:This product is designed for protection against electrostatic discharge (ESD) and is not intended for any other
purpose, including, but not limited to, voltage regulation.
2.Features
(1) AEC-Q101 qualified (Note 1)
Note 1:
For detail information, please contact to our sales.
Note:
Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
("Handling Precautions"/"Derating Concept and Methods") and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Note 1: According to IEC61000-4-2.
Note 2: According to ISO10605. (@ C = 330 pF, R = 2 kΩ)
Note 3: According to IEC61000-4-5.
Note 1: Based on IEC61000-4-5 8/20µs pulse.
Note 2: TLP parameter: Z0 = 50Ω, tp = 100 ns, tr = 300 ps, averaging window: t1 = 30 ns to t2 = 60 ns,
extraction of dynamic resistance using a least-squares fit of TLP characteristics at IPP between 8 A to 16 A.
Note 3: Guaranteed by design.
