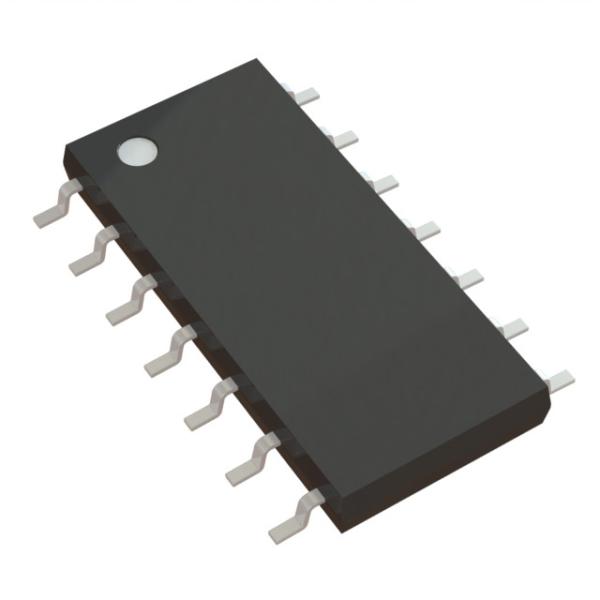

LM324DT microwave integrated circuits Integrated Circuit Chip Single Supply Quad Operational Amplifiers
LM324DT microwave integrated circuits Integrated Circuit Chip Single Supply Quad Operational Amplifiers
Specifications
Model Number :
LM324DT
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8300pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Description :
General Purpose Amplifier 4 Circuit 14-SO
Output Short Circuit Duration :
Continuous
Junction Temperature :
150 °C
Storage Temperature Range :
–65 to +150 °C
Low Input Bias Currents :
100 nA Maximum (LM324A)
Single Supply Operation :
3.0 V to 32 V (LM224, LM324, LM324A)
package :
PDIP–14, SO–14, TSSOP–14
Description


LM324, LM324A, LM224, LM2902, LM2902V, NCV2902
Single Supply Quad Operational Amplifiers

The LM324 series are low–cost, quad operational amplifiers with true differential inputs. They have several distinct advantages over standard operational amplifier types in single supply applications. The quad amplifier can operate at supply voltages as low as 3.0 V or as high as 32 V with quiescent currents about one–fifth of those associated with the MC1741 (on a per amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.

• Short Circuited Protected Outputs
• True Differential Input Stage
• Single Supply Operation: 3.0 V to 32 V (LM224, LM324, LM324A)
• Low Input Bias Currents: 100 nA Maximum (LM324A)
• Four Amplifiers Per Package
• Internally Compensated
• Common Mode Range Extends to Negative Supply
• Industry Standard Pinouts
• ESD Clamps on the Inputs Increase Ruggedness without Affecting Device Operation

MAXIMUM RATINGS (TA = +25°C, unless otherwise noted.)

Rating

Symbol

LM224

LM324,

LM324A

LM2902,

LM2902V

Unit

Power Supply Voltages

Single Supply

Split Supplies

VCC

VCC, VEE

32

±16

26

±13

Vdc

Input Differential Voltage

Range (Note 1)

VIDR

±32

±26

Vdc

Input Common Mode

Voltage Range

VICR

–0.3 to 32

–0.3 to 26

Vdc
Output Short Circuit Duration tSC Continuous
Junction Temperature TJ 150 °C
Storage Temperature Range Tstg –65 to +150 °C

Operating Ambient Temperature Range

LM224

LM324, 324A

LM2902

LM2902V, NCV2902

 TA

–25 to +85

0 to +70

–40 to +105

–40 to +125

 °C




Figure 1. Representative Circuit Diagram (One–Fourth of Circuit Shown)



Stock Offer (Hot Sell)

Part NO. Q'ty MFG D/C Package
NDS9948 16640 FAIRCHILD 16+ SOP-8
MT41K256M8DA-125:K 7065 MICRON 15+ BGA
LM324MTX 6780 NSC 13+ TSSOP-14
LM2672MX-5.0 2000 NSC 14+ SOP-8
LM2734YMK 3000 NSC 14+ SOT-23-6
MT46V32M16P-5B:J 7156 MICRON 15+ TSOP
LM334Z 5956 NSC 14+ TO-92
MC68HC68TIP 3718 MOT 15+ DIP
NTF3055L175T1G 4700 ON 16+ SOT-223
PIC16F877-20/P 4858 MICROCHIP 14+ DIP
BFT92 6000 15+ SOT23
LPC2134FBD64/01 733 15+ LQFP-64
30605* 626 BOSCH 10+ QFP-64
ZVP2106GTA 5000 ZETEX 14+ SOT223
MC33172DR2G 15131 ON 10+ SOP
MCP1703T-3302E/DB 5098 MICROCHIP 16+ SOT-223
MT8806AP1 7401 ZARLINK 16+ PLCC
40048* 1816 BOSCH 15+ QFP64
MAR9746 7467 ST 16+ SSOP
PIC18F46K22-I/PT 4353 MICROCHIP 14+ TQFP
LM4041DIZ-ADJ 10024 NSC 14+ TO-92-3
